SPDT represents Single Pole Double Throw switches. These switches are among the most basic components in electronics. Because of their function—to route electrical current between two output terminals—they have gained a very important place in circuit design and projects of printed circuit boards, whether for experienced engineers or electronic enthusiasts. Therefore, the study of SPDT switches is very important in devising reliable and efficient systems.

SPDT switches have very wide applications and may be used in several single-input circuits while making complex designs simple, effective, and functional. Applications would be from household electronics to industrial automation and several other areas.

This article defines what an SPDT switch is, its components, its operation, and multiple applications. After reading this article, you will have gained enough knowledge about this very important device to help you make proper decisions about your projects and designs involving the same.

What is an SPDT Switch?

An SPDT switch is an electrical switch that is found to be used only in one very special application of electronic and electrical systems. It does not open or close a single circuit as any ordinary switch would. It swaps one input connection between two output terminals instead. Therefore, it is very efficient at controlling more than one device or circuit through the same input source, which makes it highly versatile in most applications.

The term “single pole” refers to the single input terminal the switch controls, while “double throw” indicates that this input can be directed to one of two output terminals. This characteristic is what sets the SPDT switch apart from simpler switches like SPST (Single Pole, Single Throw), which can only connect or disconnect a single circuit.

SPDT switches are very common in electronic circuits; they are mostly used in devices and systems requiring alternative outputs or directions of electrical current. They have an important function in circuit enhancement without any increase in complexity, so engineers and designers often use them.

What is the Function of an SPDT Switch?

SPDT is an input-output switch; in its normal open position, it directs one input toward one of two different outputs. The basic operation assists in some situations where the same circuit, or device, has to make a transition from one action or outcome to another; for example:

● Lighting: SPDT switches usually help in changing lighting circuits among different settings, such as turning the light on/off and switching from indoor to outdoor lights.

● Control Systems: SPDTs help in the redirection of signals of various control signals to different devices in the form of relays, motors, or other control units in a control panel.

● Audio Equipment: The SPDT switch is the switch that selects two different sources of input audio equipment or the switch from microphones and the second input-auxiliary inputs.

● Test Equipment: This is very commonly employed so that several testing configurations of the circuit to be tested may be chosen. It may switch between point A and point C or may switch between a few testing points or conditions.

This helps in using many operational modes with only one input with the help of an SPDT switch. It, therefore, saves on extra wiring or other complicated switching mechanisms, hence making it cost-effective. SPDT switches are also reliable and easy to use. For this reason, they become an essential component in simple as well as complex systems.

SPDT Switch Symbol and Components

Let's first go over the SPDT switch symbol and the internal parts to understand it better and the way it works. These parts are extremely important in the design and troubleshooting of circuits that have SPDT switches.

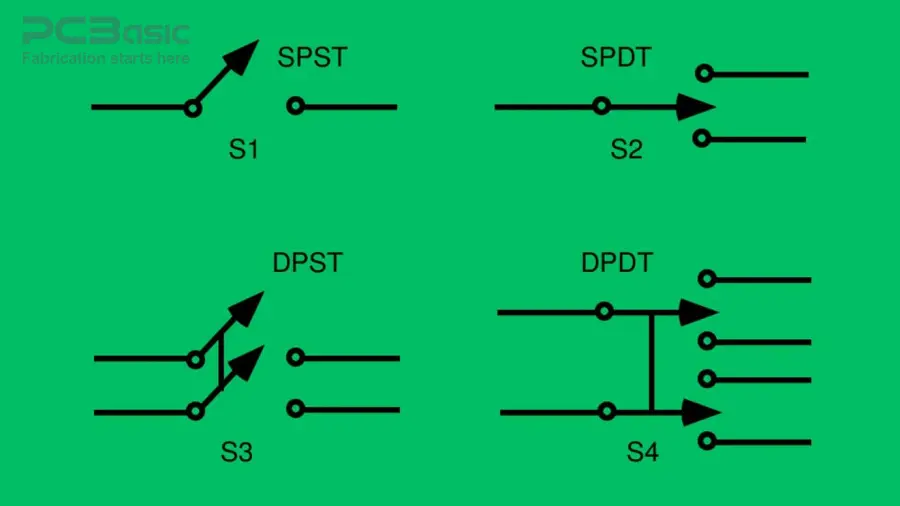

SPDT Switch Symbol

The SPDT switch is normally represented by the symbol for its function in circuit diagrams through graphical representation. The major parts of its symbol are as shown below:

● Common Terminal (COM): It is where the switch is centrally connected. It is an input that changes between the two output terminals when the switch is in any position.

● Normally Open (NO) Terminal: The terminal is left open from the common terminal in the default switch position. It connects with the common terminal only when the switch is thrown.

● Normally Closed (NC) Terminal: This terminal is connected with the common terminal by default. On throwing the switch, the connection with this terminal is broken, and the circuit is switched to the NO terminal.

Since a labeled diagram of the SPDT switch symbol is incorporated, it describes how the terminals of this switch alternate about its switching action, making the method of its function easily interpretable.

Major Components of an SPDT Switch

● Actuator: This is an external mechanism for changing the position of the switch. It can also be a lever, button, or slide, depending on how the switch is designed.

● Housing: Protects the inner parts of the switch and provides insulation so as to provide safety.

● Contacts are the conductive parts of a switch, making or breaking contact between the terminals. It needs to be rated for the current and voltage specified for the switch.

● Terminals: This connects the external wiring of the switch, including the COM, NO, and NC terminals. The proper connection of the terminals is necessary to be able to get appropriate switching.

If designers and engineers are aware of the components and symbols of the SPDT switch, it is easily implemented into a circuit. It will work perfectly and will be reliable, too. Since it is able to allow a single input to switch two outputs, the SPDT switch becomes a basis in many electronic designs.

Types of SPDT Switches

SPDT switches are constructed in a number of configurations to meet specific demands. They are divided according to the mechanism used to actuate them, such as momentary versus toggle switches, and according to the type of operation, such as mechanical versus electronic switches.

Momentary vs. Toggle SPDT Switches

Momentary SPDT Switches

Momentary SPDT switches operate only when applied pressure exists on the actuator of the switch, such as a button or lever. As soon as the pressure is removed, the switch returns to its resting state, either to the Normally Closed (NC) terminal or unconnected. These are used mainly in doorbells, reset switches, and temporary control systems where the circuit must return to its original state right after activation.

Toggle SPDT Switches

Toggle SPDT switches remain in a given state until manually changed back. Once activated, the connection remains in place without the need for continuous user input. Toggle switches are used mainly in light switches, mode selectors in equipment, and power control systems where the state of the circuit must remain that way until it is intentionally changed.

Mechanical and Electronic SPDT Switch

SPDT Mechanical Switches

An SPDT mechanical switch operates due to the physical movement of its term, usually through a simple mechanism such as an arm or a button. To control this mechanism, the unit involves one movable internal contact. Due to these features, SPDTs are very popular for residential applications, automotive, and some form of heavy industry.

Electronic SPDT Switches

The design of electronic SPDT switches is called solid-state type switches in general. These switches make it possible to switch semiconductor-type components rather than mechanical units to bring about switching. Thus, these make the switch operate at extremely faster and longer cycles and also provide signals without loss in high frequencies due to less resistance. Moreover, they are highly robust systems used in microcontrollers for various applications, digital logic-based products, and compact electronic tools.

Based on these discussions and the different types of SPDT switches used in electronics, you can determine which switch is ideal in certain circuit designs for your specific electronics requirement.

How an SPDT Switch Works

An SPDT switch allows the electric current to pass through one of two output terminals. The SPDT switch works through the movable contact that moves the place between the NO and NC terminals. When turned off, the current passes through to the NC terminal. On turning on the switch, the flow of the current shifts to the NO terminal to make the circuit go on.

This property changes the current paths, which makes SPDT switches highly useful in situations demanding dual functionality, such as two power sources or using control over two different pieces of equipment. The position of a switch can easily be switched to turn over the direction in which current flows through, creating this switch a flexible application for circuit operations.

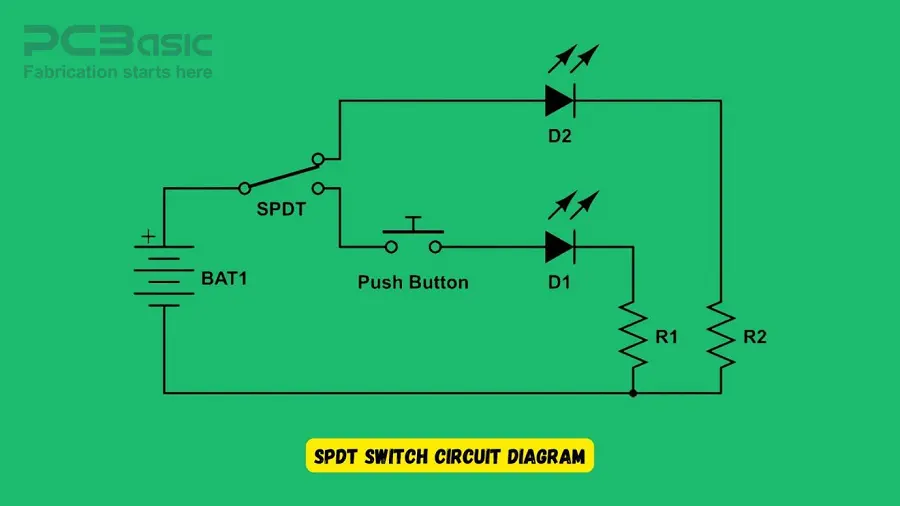

SPDT Switch Circuit Diagram

The following figure shows a simple circuit diagram of the working of an SPDT switch:

In the figure:

● The common terminal is where the input current flows in.

● The direction of flow of the current can either be to the NO terminal or to the NC terminal, whichever the movable contact makes.

That must be because, when switched on, the movable contact moves; thus, this switches the current path. That switch mechanism may be helpful in precisely knowing which circuit one should activate by using multiple circuits.

Advantages and disadvantages of SPDT switches

Benefits

SPDT switches are useful due to their high flexibility and convenience in design. They are used virtually everywhere. They can change easily between two outputs and due to being compact, it has a very good fitting in tightly designed spaces, such as in PCB design. Easy operation makes its integration easy in the circuit also without spending much time and botheration in design and assembling processes.

Disadvantages

However, SPDT switches have their limitations. SPDT switches cannot perform switching tasks as complex as DPDT switches, but they are limited to more simple operations. Their power-handling capabilities are also limited, and they are not the best choices for high-load applications. Therefore, for projects that need powerful power management, another type of switch may be more suitable.

Applications of SPDT Switches

SPDT switches have wide use in industries based on their efficiency and reliability characteristics. It has a primary role in electronics in using applications that include routers, LED control systems, as well as audio equipment since it must switch with extreme precision. In industries, they also play an important role, as the switches are some of the essential components within electrical control panels to achieve smooth signal and power routing within large systems.

In cases of electronic devices such as toys or home appliances, SPDT switches make operating functions easy, such as mode selection or powering up several components, while the function of allowing multiple circuits under one switch simplifies designing and operational convenience.

How to Choose the Right SPDT Switch for Your Application

The choice of the right SPDT switch depends on a number of specific requirements for optimal performance and compatibility:

● Size and Mounting Options: The physical dimensions and mounting type should ensure a proper fit within your PCB layout or device enclosure.

● Voltage and Current Rating: The switch must be able to handle the electrical load of your circuit without a risk of failure.

● Environmental Factors: If the application will expose the switch to temperature extremes, humidity, or dust, the switch must have appropriate environmental resistance.

● Actuation Type: You will need to determine if the switch must be operated manually (e.g., toggle or push-button) or automatically (e.g., electronic or sensor-based) for your project.

SPDT vs. DPDT and Other Switches

SPDT switches are suitable for use where alternate current flow is needed and ideal for all applications. SPST switch works well with on/off operations, whereas DPDT deals with more complex operations.

Conclusion

The other reason why SPDT switches are used in all the diverse fields of modern-day electronic equipment is that these work with absolute perfection in most fields. Moreover, suppose the person has the correct knowledge regarding various types as well as their applications. In that case, it too becomes a significant aspect for the enhancement of the performance as well as the reliability of the Printed Circuit Boards. It allows doing low-cost designs. Hence, it also facilitates the manufacturing processes of these switches.
