What is a Rectifier Diode

The power source delivers electricity as AC for domestic and industrial purposes. However, today, most electronic appliances require DC power. This is where the rectifier diode comes in.

A rectifier is an electrical traffic cop that directs the current to flow in one direction and prevents the opposite flow. The rectifier circuit operates as a power converter that produces DC from AC voltage to supply steady power to electronic devices.

How exactly does a rectifier diode work? Hold your horses, be with us till the end, and you will know what rectifier diodes are, their working principles, and everything you need to know.

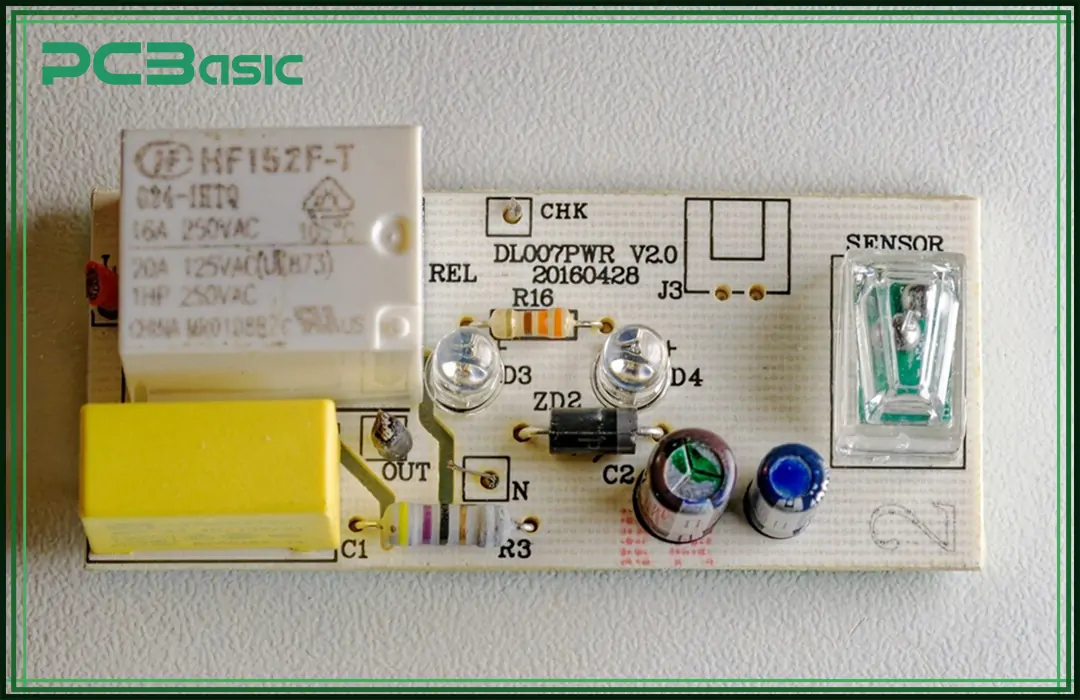

What is a Rectifier Diode?

The rectifier diode changes alternating current (AC) into direct current (DC). It ensures power and other electronic gadgets get the correct current. Mainly, rectifier diodes are responsible for a uniform electrical current movement while preventing it from flowing in the opposite direction.

A rectifier diode is preferred in modern electronic devices as it provides a steady DC voltage to devices that need stable power.

What Does a Rectifier Diode Do?

The rectifier diode functions as a voltage converter. Through its unidirectional current flow, it produces direct current from alternating current. In AC circuits, voltage constantly changes direction. A rectifier diode prevents damaging effects on electronic components that require constant direct current voltage.

Moreover, the rectifier diode prevents negative AC cycle portions. It ensures positive output voltage through half-wave or full-wave rectification. The generated DC voltage is then used to supply power to electronic devices.

Rectifier Symbol

A rectifier symbol resembles an ordinary diode symbol. It features a triangular shape pointing towards a vertical direction.

Here is what it symbolizes:

●      The triangle in the symbol shows the anode (+) section where current flows in. The vertical line symbolizes cathode (-), where the current exits.

●      When the anode's voltage is higher, the diode conducts electricity. Upon voltage reversal, the diode blocks the current flow.

What Are the Types of Rectifier Diodes?

Below are the types of rectifier diodes:

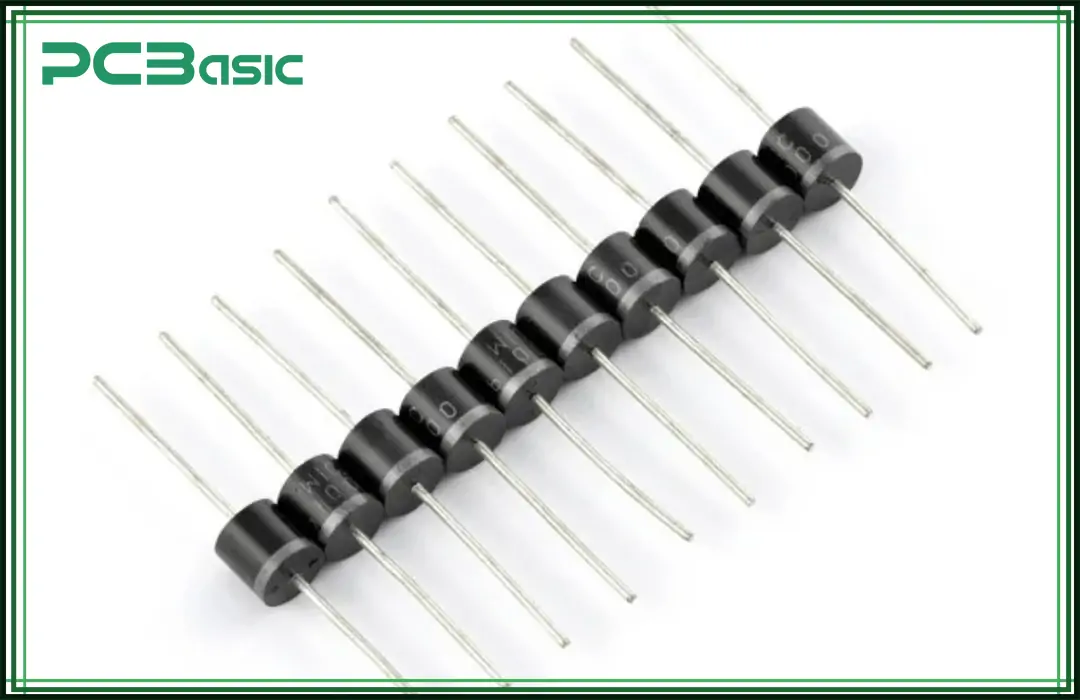

1. Standard Diodes

It is used to rectify AC. Standard diodes have a high forward voltage drop. However, their simple structure makes them affordable. Also, they are reliable for general applications.

Typical Applications: include consumer electronics and power supplies.

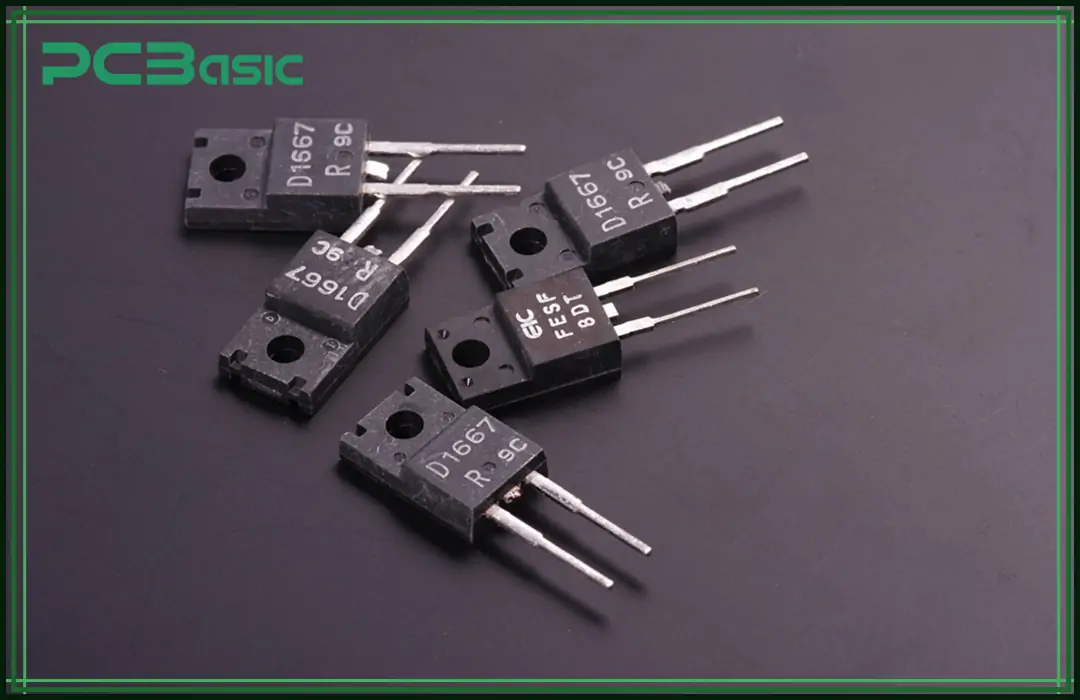

2. Fast Recovery Diodes

Such diodes are meant for applications that need high frequency. They have a shorter recovery time. They can reduce the switching time from conducting to non-conducting states.

Common Applications: Ideal for high-speed power conversion. Typical uses include digital circuits and RF systems.

3. Schottky Diodes

They feature high-speed switching and a lower (0.2-0.3V) forward voltage drop. A metal-semiconductor junction is used to build a Schottky diode. Compared to standard diodes, they have a fast response time.

Typical Applications: are half-bridge rectifiers, full-wave rectifiers, switching power supplies, power inverters, and solar converters.

4. Zener Diodes

Zener diodes let current flow in the reverse direction when a specific voltage is exceeded. They are mainly used for voltage regulation, not rectification.

Common Applications: Circuit protection and voltage stabilizers.

How Does a Rectifier Diode Work?

AC voltage alternates between positive and negative cycles. When AC enters a rectifier circuit, the diode only allows the positive half to pass and blocks the negative cycle. This results in pulsating DC. The best way to create a steady voltage is by adding capacitors that store and release energy.

Importance of Rectifier Circuits in Power Electronics

Rectifier circuits are used in almost all electronic devices. Rectifier diodes are crucial in converting AC to DC. Below are the different types of rectifier circuits and their applications.

1. Half-Wave Rectifier

Simplest among rectifiers. A single diode permits only positive wave portions. It blocks opposing segments entirely. It has few components and is cost-effective. Typical uses include small chargers, signal demodulation, and low-power circuits.

2. Full-Wave Rectifier

This type of rectifier circuit is more efficient than half-wave designs. Two types exist: bridge rectifier and center-tapped full-wave rectifier.

Bridge Rectifier

Four diodes form a closed loop. Both positive and negative waves become usable. It has higher efficiency and smoother direct output. However, it needs four diodes and a minor voltage drop per component. Typical applications of bridge rectifiers include:

●      Power supplies

●      Motor controllers

●      LED drivers

Center-Tapped Rectifier

It requires a transformer featuring a center tap. Two diodes direct both halves of incoming AC into usable DC. It is more efficient than half-wave rectification. It is used in audio amplifiers and high-current converters.

How to Test a Rectifier Diode?

A faulty rectifier diode can disrupt a circuit. Testing it ensures its proper functioning. Here are two methods of testing a rectifier diode.

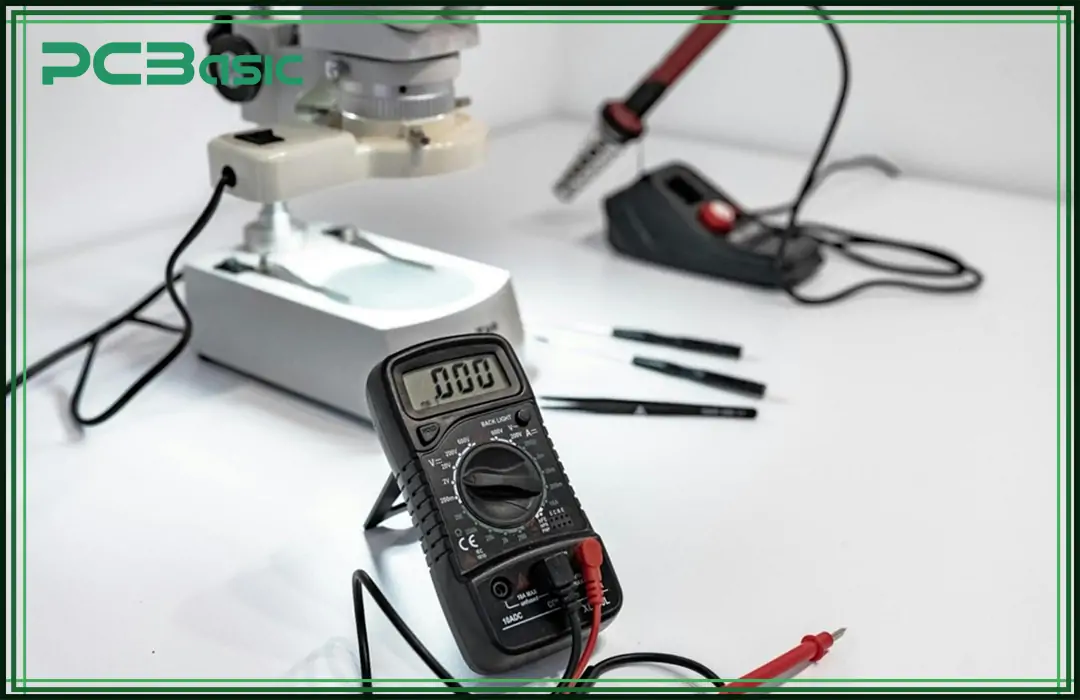

1.    With a Digital Meter

Here are the steps used in this test:

●      Set the multimeter to diode mode.

●      Spot the diode's cathode and anode. If the anode voltage is higher, the diode conducts the test forward bias and vice versa.

●      Ensure all power to the circuit is off.

●      Now, set the meter according to your requirements.

●      Next, keep the leads of the meter on the diode terminals.

●      Measure the voltage across them. A working diode should show a voltage drop (usually 0.7V for silicon and 0.2V for Schottky diodes).

●      Lastly, reverse bias can be tested by changing the placement of probes. A suitable diode should show an open circuit (no reading).

2.    Testing Diode in Resistance Mode

This method involves setting the multimeter to resistance mode. You need to follow the steps mentioned below:

●      First, test forward resistance. It is important to note that this test requires high resistance. In this mode, resistance ranges between 1 K to 10M.

●      Then, test reverse resistance. A working diode should show very high resistance in the opposite direction.

If the diode allows current in both directions or shows zero resistance in both tests, it is faulty and needs replacement.

Important Considerations While Choosing Rectifier Diodes

You need to be very careful when choosing rectifier diodes. Each diode has a particular purpose. Selecting the wrong one can lead to failure or compromised efficiency.

Here are the unavoidable considerations:

Voltage Rating: Select a rectifier diode with a higher rating than the voltage needed to operate it. Doing so can prevent it from breaking down. If the circuit functions at 50V, it is best to select a diode rated at 75V or more. It helps get a risk-free margin.

However, exceeding the breakdown voltage can lead to failure. People choose a higher rating than the actual operating voltage.

Current Capacity: Next, be careful with the maximum forward current of diodes. It must not be exceeded to avoid overheating or damage. Suppose the circuit drawing is 3A; don't use a diode rated at 2A. Instead, select a rectifier diode with at least 20-30% extra capacity. This strategy helps prevent failures caused by current spikes.

Forward Voltage Drop: It improves efficiency. As mentioned earlier. Schottky diodes drop at 0.2V–0.3V. Meanwhile, a standard silicon diode drops about 0.7V.

Excessive voltage loss can affect performance in low-voltage circuits. Therefore, Schottky diodes are a perfect option for efficiency.

Reverse Recovery Time: Fast-switching diodes are required for high-frequency circuits used in power inverters and high-speed rectifiers. A diode with a slow recovery time causes delays and heat buildup. As a result, system efficiency decreases.

Surge Current Tolerance: Power circuits experience sudden current surges. A diode with high surge current capability can handle brief spikes without damage. Some diodes are perfect for smooth power fluctuations and withstand 10 times their rated current for short periods.

Heat and Temperature Dissipation: Excess heat compromises diode performance. While operating in high temperatures, ensure the diode has a high-temperature tolerance.

If required, you can use heat sinks or cooling mechanisms. Schottky diodes, for example, generate more heat at high currents but work well with proper thermal management.

Package Type and Mounting: Diodes come in different packages, from through-hole to surface-mount or TO-220 for power applications. The mounting style affects heat dissipation and space constraints. Surface-mount diodes are ideal for compact circuits. In comparison, high-power circuits require excellent packaging.

Considering these factors, you can select a rectifier diode that ensures reliable performance, higher efficiency, and durability.

Conclusion

A rectifier diode converts AC into DC. They improve the efficiency of miniature gadgets and industrial machines. Furthermore, they also enhance the durability of the machine. All you need to consider are the factors like voltage rating, current capacity, and switching speed, which also matter. A poor choice leads to heat buildup or failure.

Schottky diodes minimize power loss, while fast recovery types suit high-frequency circuits. Zener diodes can help if you need stable voltage. Understanding these differences ensures reliable performance. Whether in power supplies or electronics, rectifier diodes keep devices running smoothly. Select wisely, and your circuit stays efficient and long-lasting.
