In the rapidly evolving electronics
industry, a suitable PCB surface finish is critical to ensuring product
quality. At the same time, a trusted PCB assembly manufacturer is also a key
factor in safeguarding products.
PCBasic provides first-class HASL turnkey
PCB assembly solutions to meet the individual needs of customers. Whether it is
prototype PCB assembly, custom PCB assembly or mass production, PCBasic's
dedicated team delivers exceptional HASL PCB solutions in an efficient and
precise manner.
Overview of HASL Turnkey PCB Assembly
What is HASL?

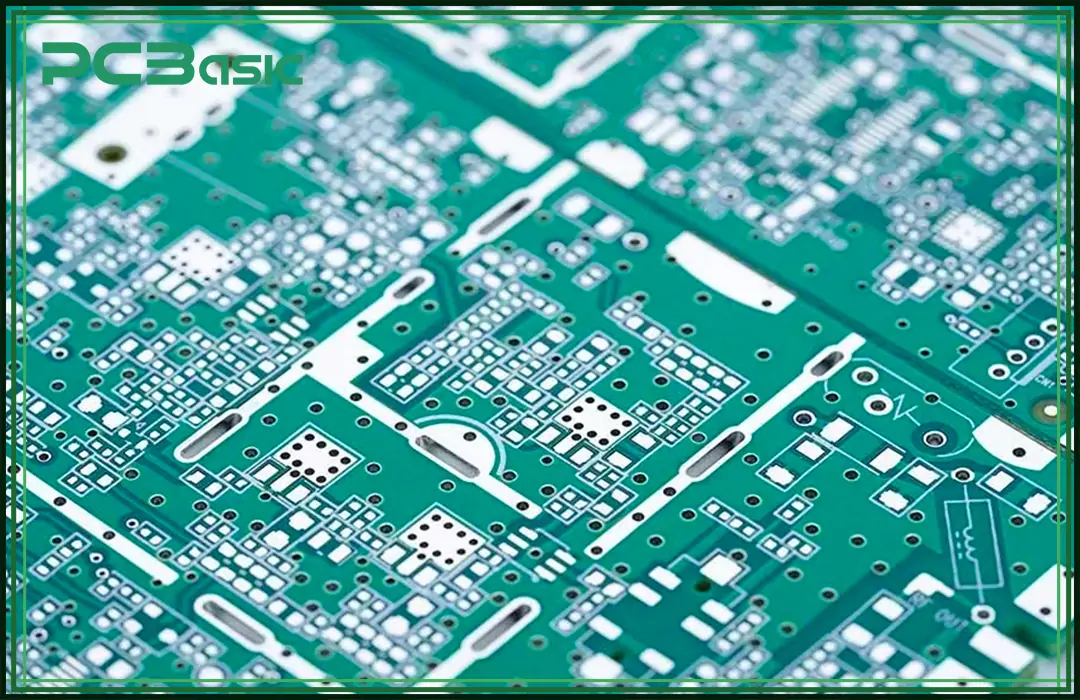

Hot air solder leveling (HASL) is a
common PCB surface finishing technology. It is widely used in the electronics
manufacturing industry. It protects the copper layer by covering the surface of
the exposed brass pad on the PCB with a uniform solder layer. At the same time,
it can enhance the soldering performance. In the HASL process, the PCB is
immersed in molten solder and then blown off with a pair of hot air knives to
ensure a flat surface and a consistent pad height.

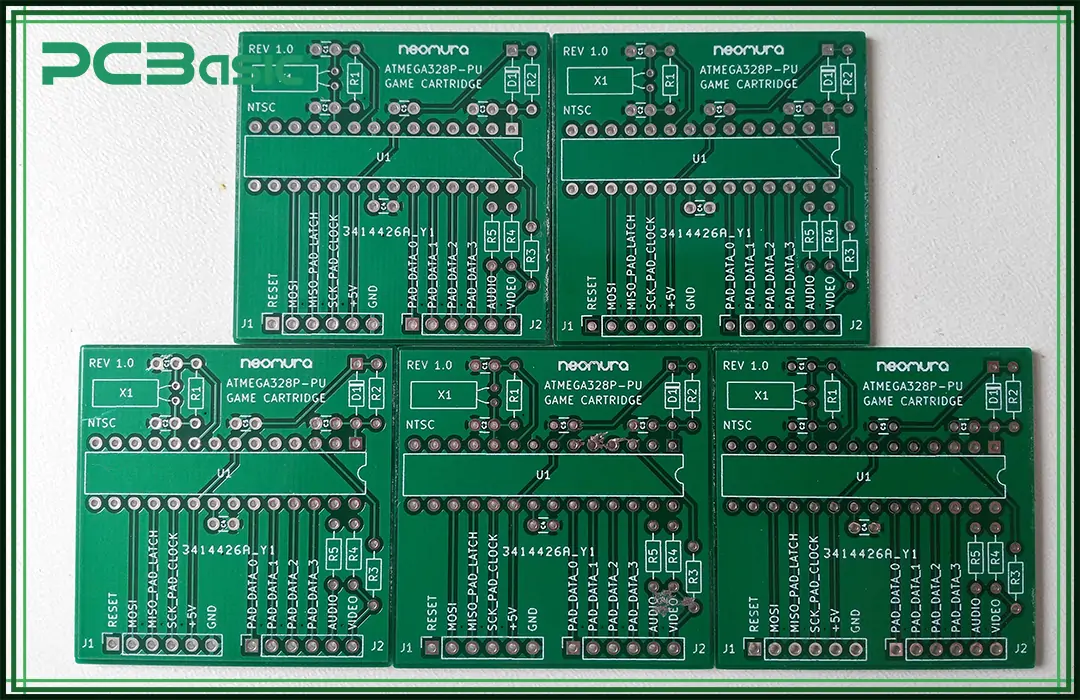

The HASL PCB surface is bright and has a
certain degree of reflectivity, which is easy to determine whether the solder
coverage is uniform and complete through visual inspection to ensure product
quality. Due to its excellent solderability and cost-effectiveness, the HASL
process is particularly suitable for projects requiring through-hole component
(THT) soldering, making it the preferred solution for many electronic assembly
manufacturing projects.
Definition of
Turnkey PCB Assembly
Turnkey PCB Assembly is an integrated
service where a single PCB assembly manufacturer takes care of all aspects of
PCB production, including PCB design, manufacturing, component procurement,
assembly and testing. Through this model, PCB assembly manufacturers integrate
the entire production chain to provide customers with more convenient
solutions.
Compared with the traditional multi-link
decentralized procurement and management, one-stop PCB assembly greatly
simplifies the process. Customers do not need to interface separately with
design companies, component suppliers and PCB assemblers, all aspects are
completed by the same service provider, thereby reducing communication costs
and avoiding potential buck-passing problems.
Advantages of
Combining HASL and Turnkey PCB Assembly
Combining surface finish HASL PCB with turnkey
PCB assembly gives full play to the advantages of both and brings many
significant benefits to electronics manufacturing projects.
1. Cost-effectiveness: HASL is
a budget-friendly surface finish, while turnkey assembly reduces
overall production costs.
2. Quality
control: A single provider ensures consistent
quality throughout the manufacturing process.
3. Time
savings: Streamlined production and assembly
processes lead to faster turnaround times.
4. Simplified
communication: Working with one PCB
assembler for the entire project simplifies project management.
Applications of HASL Turnkey PCB Assembly
HASL turnkey PCB assembly is widely used
in many industries due to its excellent cost performance, reliable soldering performance
and efficient production mode.
1. Consumer Electronics
In consumer electronics such as mobile
phones, TVs and game consoles, HASL PCBs are widely favored for their good solderability
and low cost. Combined with turnkey PCB assembly, suppliers can quickly
complete the full production process from design to finished product, meeting
the consumer electronics market's needs for rapid market and high-volume
production.
2. Industrial Control
Industrial equipment requires high stability
and durability for the circuit. HASL PCBs have excellent oxidation resistance
and durability, ensuring a reliable electrical connection in harsh
environments. Through turnkey PCB assembly, companies can entrust complex
multi-layer boards or large-size PCBSs to professional suppliers, reducing
production difficulties and ensuring product quality.
3. Automotive Electronics
Automotive electronic systems require
high stability and high-temperature resistance for solder joints. The solder
layer on the HASL PCB surface has good wettability during the soldering process
and can effectively form a stable solder joint. Combined with one-stop PCB
assembly, suppliers can quickly complete complex circuit assembly and perform
rigorous reliability testing to ensure that the demanding standards of the
automotive industry are met.
4. Communication Equipment
In routers, base stations, and other
communication equipment, HASL PCBs are widely used for their good electrical
performance and long service life. With turnkey PCB assembly, it can quickly
complete the manufacturing and testing of high-frequency and high-speed
circuits to meet the requirements of the communication industry for signal
integrity and performance stability.
5. Smart Home and IoT Devices
With the rapid development of smart home
and Internet of Things devices, HASL's advantage of turnkey PCB assembly
solution with lower cost and rapid mass production has become an ideal choice
for SMEs and entrepreneurial teams. Through the turnkey service model,
enterprises can quickly launch smart sensors, smart home appliances, and other
products to take advantage of the market opportunity.
HASL Turnkey PCB Assembly services from PCBasic
PCBasic offers comprehensive HASL
turnkey PCB assembly services, including:
• PCB design and assembly
• Component procurement
• SMT/DIP assembly
• Product testing
• Conformal coating application
Our advanced facilities and experienced
team ensure high-quality results for every project, from prototype PCB
assembly to large-scale production runs.
Why PCBasic?
PCBasic stands out as a trusted PCB
assembly manufacturer for several reasons:
1. Expertise & Experience:
• Over 10 years of experience in PCB design and
assembly.
• A skilled team with extensive electronic
assembly manufacturing knowledge.
2. Industry Collaboration:
• Partnership with PhD teams from multiple
universities for advanced research and development.
3. Flexible Manufacturing Facilities:
• Shenzhen factory for small-batch
orders.
• Huizhou factory for large-scale production.
4. In-house Precision Equipment:
• Dedicated stencil and fixture manufacturing
for fast delivery (within 1 hour).
5. Streamlined Operations:
• One-click BOM import and instant quoting
system for faster orders.
• Centralized intelligent warehouse for
guaranteed original component supply.
6. Certifications & Quality
Assurance:
• ISO13485, IATF 16949, ISO9001, ISO14001, UL
certifications.
• Recognized as a national high-tech enterprise
with 20+ quality management patents.
With PCBasic's commitment to quality and
innovation, you can trust our HASL Turnkey PCB Assembly services to deliver
reliable, high-performance solutions for your projects.
Conclusion
HASL turnkey PCB assembly services
from PCBasic offer a powerful combination of cost-effectiveness, quality, and
efficiency. By choosing PCBasic as your PCB assembly manufacturer, you
gain access to cutting-edge technology, experienced professionals, and a
streamlined production process.
Whether you need prototype PCB
assembly or large-scale production, PCBasic has the expertise and
resources to bring your electronic projects to life.
