What is Selective Wave Soldering? A Comprehensive Guide

Maybe you know wave soldering, but do you know what selective wave soldering is? Selective wave soldering is also an advanced and accurate soldering technique for circuit board assembly. It is not the same as the traditional wave soldering. Want to see how they're different? Next, in this article, I will introduce you to the principle of selective wave soldering, the process, the main applications and how it differs from traditional wave soldering.

An Introduction to Selective Wave Soldering

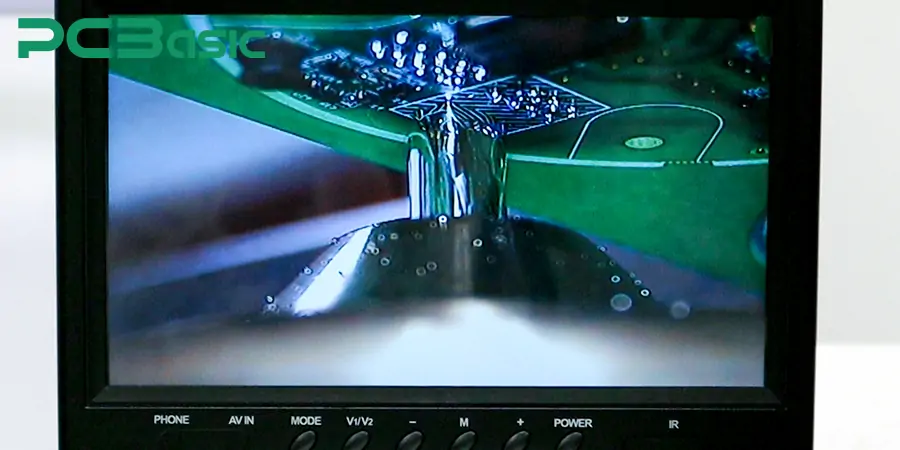

Selective wave soldering is a soldering process in which perforated components are connected to the PCB by molten solder. Its solder is only applied to the desired area. Selective wave soldering differs from traditional wave soldering in that it only applies the solder to the pre-treated solder points. This makes it ideal for many PCBA manufacturers for complex PCBs that require precise soldering.

Importance of Selective Wave Soldering in PCB Assembly

Selective wave soldering plays a vital role in ensuring high quality soldered joints, especially when dealing with precision or small components that require precise soldering. The selective wave soldering machine can provide better welding process control than the traditional wave soldering machine. This makes it very useful in low to medium volume production and professional applications, especially in cases where traditional wave soldering can cause damage to sensitive components. Then, let's take a look at how the selective wave soldering machine works!

Selective Wave Soldering Process

The soldering process of selective wave soldering usually includes the following key steps:

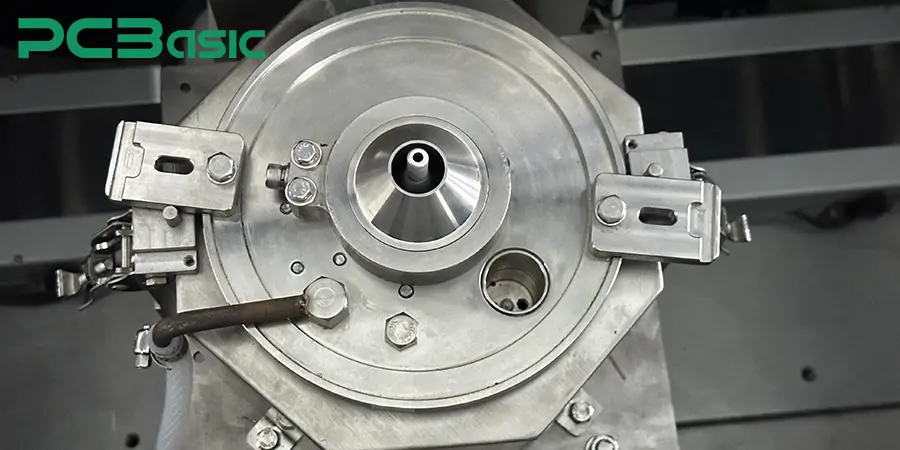

The first is the preheating of the PCB board, which preheats the PCB board to a certain temperature, so as to ensure that the board and components can adapt to the next soldering process. Then, just before soldering, the selective wave soldering machine applies flux to the soldering area. This step is used to clean the welding area and improve the adhesion of the solder. Next, the selective wave soldering machine will solder the area to be welded through a precisely controlled wave of solder. This is the most critical step in selective soldering, which is usually done by robotic arms or automated equipment. After soldering, the PCB passes through the cooling zone. The solder quickly solidifies and a strong welded joint is formed. Finally, the PCB is subjected to automated optical inspection (AOI) or functional testing to ensure that all soldered joints meet quality standards and are free of defects.

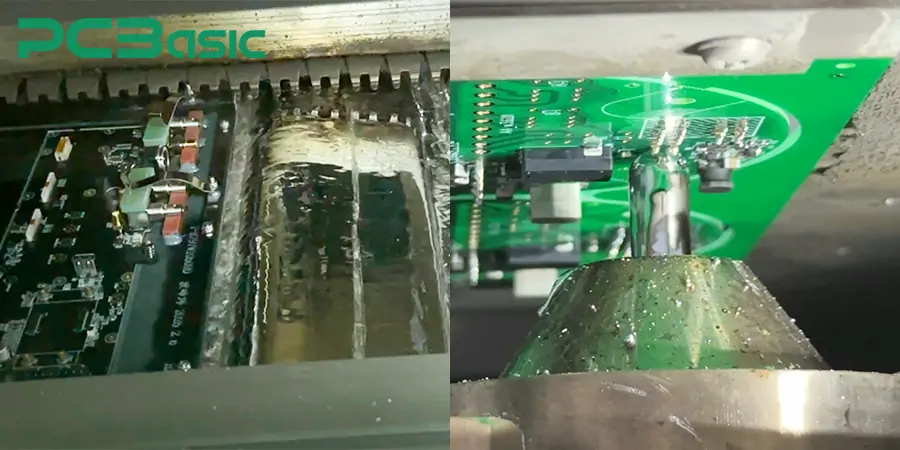

Selective Soldering vs Wave Soldering

Applications of Selective Wave Soldering

Selective wave soldering is widely used in many industries. In the automotive industry, it is essential for PCB assembly, ensuring the precise welding of components such as sensors and connectors to meet the requirements of high reliability and precision. In medical equipment, selective soldering machines ensure the welding of precision components while avoiding excessive heat damage to the components, thus maintaining the integrity of the equipment. In consumer electronics manufacturing, selective wave soldering guarantees the precise welding of small complex components on compact PCBs, ensuring quality even in complex designs. In aerospace and defense, selective soldering meets the high precision and reliability requirements of traditional wave soldering, ensuring the welding quality of critical system elements.

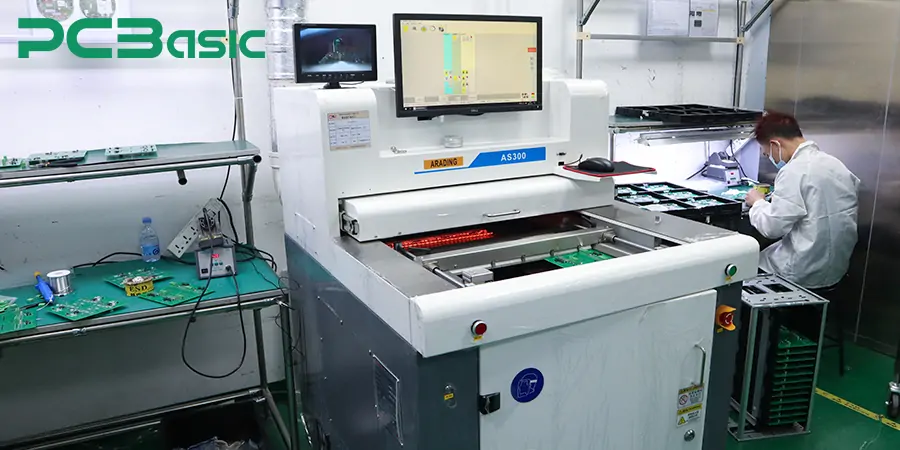

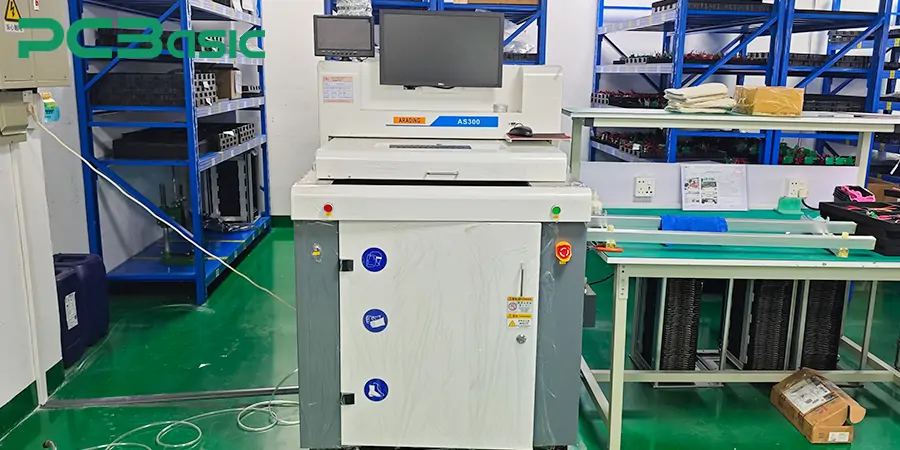

How Selective Wave Soldering Enhances PCBasic's PCBA Manufacturing Capability

Selective wave soldering technology has greatly enhanced PCBasic's (a PCB assembly manufacturer with 15+ years of experience) manufacturing capabilities in PCB assembly, especially in terms of soldering accuracy, efficiency and reliability (compared to traditional wave soldering) :

1. Improve the welding accuracy and reduce the waste of solder

Selective wave soldering only welds where welding is required, which not only improves welding accuracy, but also reduces the waste of solder. Precisely apply the solder to a specific area of the PCB when needed, and this high-precision welding ability allows even fine-spaced or complex design components to be perfectly welded, greatly reducing welding defects that cannot be achieved by traditional wave soldering.

2. Reduce the damage to the sensitive element

When using traditional wave soldering, the thermal exposure time of the components on the PCB board is relatively long, and the damage to the sensitive components is greater. Selective wave soldering reduces heat exposure to sensitive components on the PCB by selectively applying the solder only to the desired area, thereby protecting these components from excessive temperature damage. This is particularly important for high-precision applications such as medical, automotive and aerospace electronics.

3. Improve production efficiency, reliability and flexibility

The selective wave soldering technology allows PCBasic to flexibly manufacture small batches and prototypes according to the needs of different customers, while ensuring high quality welding.

Overall, selective wave soldering improves the precision, efficiency and reliability of PCBasic in the PCBA manufacturing process, allowing us to provide our customers with more precise, efficient and reliable PCB assembly services to meet the needs of different industries and sectors for high-quality products.

Conclusion

Selective wave soldering is a highly accurate process for welding perforated components to the PCB. Selective wave soldering has significant advantages over traditional wave soldering, such as higher accuracy, less risk of damage to sensitive components, and less solder waste. All in all, selective wave soldering is an integral part of PCB assembly: by providing greater accuracy and reducing defects, ensuring the production of reliable, high-quality PCBs that meet the needs of advanced technology applications.
