The importance of PCB Stencils in modern electronics manufacturing is
decisive. This enables accurate solder paste deposition for SMT assembly.
Subsequently, the stencils directly affect the accuracy of component placement.
As electronic components are getting smaller, PCB stencils have come out to be
more essential. Solder paste stencils directly affect the final product quality
and reliability.
The purpose of this article is to explore the reasons stencil
manufacturing play a great role in successful SMT assembly processes.
What
is a PCB Stencil?

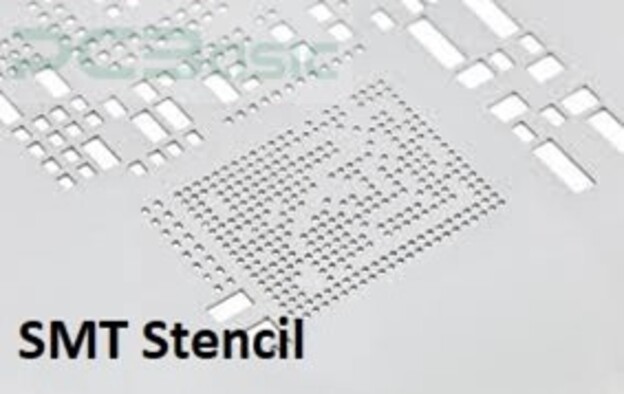

A PCB stencil is a metal sheet with precisely cut openings. Their
design is pretty unique. Why? They allow solder paste and adhesive to pass
through the openings. The sole purpose is to create the suitable layout for
surface mount components.
These are aligned with the solder pad patterns on a circuit board.
They work like a mask for putting solder paste. All of the openings correspond
perfectly to the pads on the PCB. The metal is typically stainless steel or
nickel. The thickness is typically 3 to 8 mils, depending on
design requirements.
There are generally two types of PCB stencils: framed and frameless.
Framed stencils mount in rigid metal frames. Subsequently, the frameless
stencils remain flexible for manual use. Modern stencils are typically laser
cut to ensure precision. This cutting technique reaches tolerances as low as ±0.0005 inches.
Types
of PCB Stencils

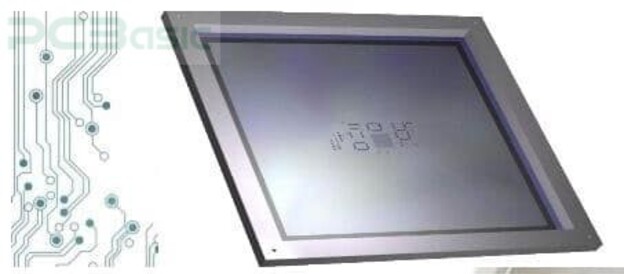

Framed Stencil
Framed stencils connect permanently to metal frames. The printing is
stabilized by the frame. They work best in automated assembly lines. They
provide equal tension across its surface. Framed stencils are the choice of
most high-volume manufacturers.
In addition, you should also know
that they are more expensive. However, they have longer life. This frame also
protects from warping during repeated use. The tensioning system ensures
perfect alignment. Furthermore, surface quality is consistent through thousands
of prints.
Step Stencil
There are variations in the thickness of step stencils. The more
"thick" the area, the more solder paste it will deposit. For
fine-pitch components, you can use thinner sections. As you know, they
handle mixed-composition challenges.
These steps stop solder bridges. For a clearer understanding, this type
is more suited for boards with different component sizes. Step ratios are
typically between 1:1.5 and 1:2. For this purpose, precise machining
tolerances are important at each step. For the best printing result, you should
change the thickness gradually.
Frameless Stencil
Generally, frameless stencils are
pretty much like flexible metal sheets. They are in demand because their cost
is low, they are cheaper than framed versions. Moreover, frameless stencils are
better suited for low-volume production.
Several prototyping labs incorporate these models for testing. Frameless
stencils work well with manual printing. The typical thickness is between 4 to
6 mil. In most cases, you will notice positioning marks for alignment.
Importance
of PCB Stencils
As
you have previously read PCB stencils directly impact production quality. For
example, the right stencil ensures perfect solder paste deposits.
PCB
assembly companies face high defect rates due to poor stencil quality. Why it
is common? The reason is that paste placement doesn't remain precise. The
use of stencils saves hours in production time. Hand-pasting solder is no
longer practical because modern electronics demand speed.
There
are thousands of orders for each machine, and manual solder pasting cannot meet
the deadlines. Therefore, this is the reason precise solder pasting can
effectively meet this demand. Now, you know perfect paste deposits are needed
for modern BGAs. The precision required will only come from stencils. This
precision is significantly important for smaller parts.
How to
Choose the Right PCB Stencil?
The layout of the boards determines the type of stencil required. Framed
stencils are required for high density boards. Simpler designs work better with
frameless options. Pair the stencil with your production volume.
Choosing the right thickness is the most important. Fine-pitch
components require thinner stencils. Thicker paste deposits are needed for
larger components. Most of the boards you find are 4-6 mil in thickness.
Similarly, step stencils may be required for complex boards.
Performance depends on material selection. For most applications,
stainless steel is excellent to work with. Fine-pitch requirements suited
nickel suits. It stencils the paste better when the stencils are polished.
Moreover, you should also know that stencil life is influenced by material
grade.
Similarly, there are some other factors to know. For example, make sure
your printer works with wireless. Ensure proper storage space.
The manufacturing method is also very important. The highest precision,
for example, a laser cut job, is recommended here. Ultra-fine pitch
electroformed is suitable here. Furthermore, chemical etching costs less.
Similarly, you should make a choice based on component density.

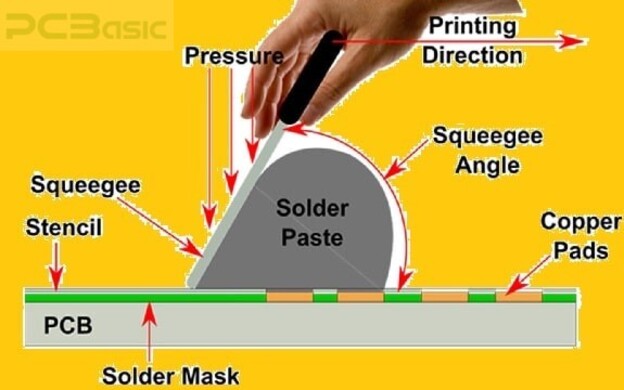

How to Use a PCB Stencil?
The first step is to clean your bare PCB board from dust and oils.
Reposition your stencil to align with the PCB pads. This will influence your
entire task so ensure it's adjusted appropriately. The very next step is to put
solder paste onto an edge of the stencil. You take your squeegee, and you will
hold it 45 degrees.
Here another important step is to put even pressure to spread the paste.
Make another pass to make sure all of the openings are well-covered. Lift the
stencil directly up to maintain clean paste deposits.
Review your board to make sure the paste is properly covering all pads.
Similarly, incorporate a swift wipe with some alcohol to clean up any messes.
You need to be careful here. For example, if the paste is still wet and has not
dried yet, place your components. Reflow soldering is next. Remember that
for good soldering results, good stenciling is essential.
PCB Stencil Framework:
The framework of a PCB stencil is crucial for precise PCB assembly. It
maintains the stencil foil in position throughout the paste application.
The frame allows consistent tension across the surface. If you ignore the
framework, you will get inconsistent solder paste deposits.
PCB Stencil Framework Materials
Stainless steel is the leading metal used for stencil frames. It wards
off corrosion from cleaning agents. It is a stable material from 20-150°C, with
a factor of between 304-grade steel, which is what the majority of
manufacturers will use. Its tensile strength is 500–700 MPa. They last more
than 50,000 print cycles. These can be seen in high-volume production lines.
Aluminum Frames
Aluminum frames are approximately one-third the weight of stainless
steel. 6061–T6 and 7075–T6 are common grades. Tensile Strength Peers 200 –
400 Mpa They are 40% lower than stainless-steel frames. Simultaneously, they
are excellent for building prototypes and for small runs. Aluminum frames
generally last up to around 10,000 printing cycles.
Composite Frameworks
New composite frames include
carbon fiber with aluminum cores. They reduce the weight by 60%. Their thermal
stability is similar to that of stainless steel. Tensile strength: 400-600 MPa
These tend to cost more initially but last longer. They’re more resistant
to chemical cleaning agents than pure aluminum.
How to select materials?
Look at the rate of thermal expansion of the material. Output: Stainless
steel expands at 17.3 × 10^-6 per °C, and Aluminum expands at 23.6 × 10^-6 per
°C—use these rates to match your stencil foil. This keeps it from warping
during reflow preheating.
Strength Guidelines
You should also not forget tensile and flexural strength. This means the
frame has to withstand a tension of 30-45 N/cm. It shouldn’t flex more than
0.1mm under printing pressure. But the larger the stencils, the stronger the
material that is needed. For a 29-inch frame, you need at least 450 MPa of
tensile strength.
Chemical Compatibility
Your frame is exposed to IPA, acetone, and other cleaners. Test
the material against your particular cleaning agents. Modern frames typically
cover a pH range of 4-11.
Stainless steel is more expensive but has more durable and lasting
power. The material saves money in small volumes, such as aluminum. Account for
how often it needs to be replaced. Factor in maintenance costs.
Production Requirements
Most high-volume terminals require frames that last over 50,000 cycles.
Multiple shifts of continuous printing have to be supported on your frame. For
better stability, consider mesh-mounted systems. These systems have a built-in
tension mechanism.
Subsequently, another important point is to choose materials with
fatigue resistance over 200 MPa for 24/7 operations. It also has precise
control over the thickness of high-volume frames.
Environmental Factors
The surrounding is very crucial for frame performance. Therefore, you
need to maintain the right protocols. For instance, watch for
temperature fluctuation. For best results, stay within ±5°C. Humidity control
is important – the recommended temperature is between 35-65% range.
Similarly, another good practice is to place temperature sensors
close to the stencil disposal. Turn on humidity indicators in cabinets.
Anti-corrosion coatings assist in coastal salt air. Use specialized materials
for cleanroom settings. Furthermore, the frame materials should comply with
your facility's fire safety codes.
In-House
Stencil Production: PCBAsic Speeds Up PCBA Deliver
PCBAsic incorporates in-house stencil production which accelerates PCB
assembly. Our company can manufacture stencils by using laser cutting in hours
instead of days. This has advantages for prototype and small-batch production.
From design to paste application, our turnaround time is quick. Our
experts accelerate the quality run process and make modifications on the spot.
Quality checks can be done quickly, and adjustments can be made on the spot.
In-house production guarantees quality
control and cost reduction. Expedited
delivery is available for urgent projects.
Conclusion
Stencils play a decisive role in making accurate solder paste in SMT.
The quality of the stencils can significantly impact component placement and
quality. Similarly, you have also learnt that framed, step, and frameless
stencils suit different needs. Therefore, proper materials, methods, and use
are crucial. Contact us to get in-house production for a quick circuit board assembly.
