How Flying Probe Testing Works for PCB Assembly

In the manufacturing and assembly process of printed circuit boards（PCBs）, quality control is very important. While ensuring quality, manufacturers are also pursuing cost-effective testing methods. Flying probe testing is a versatile and efficient solution for ensuring the reliability and functionality of PCB assemblies. It is widely used in various electronics industries such as medical, consumer, automotive, and so on. PCBasic has recently introduced an advanced flying probe tester, which greatly improves test efficiency and cost-effectiveness.

What is Flying Probe Testing?

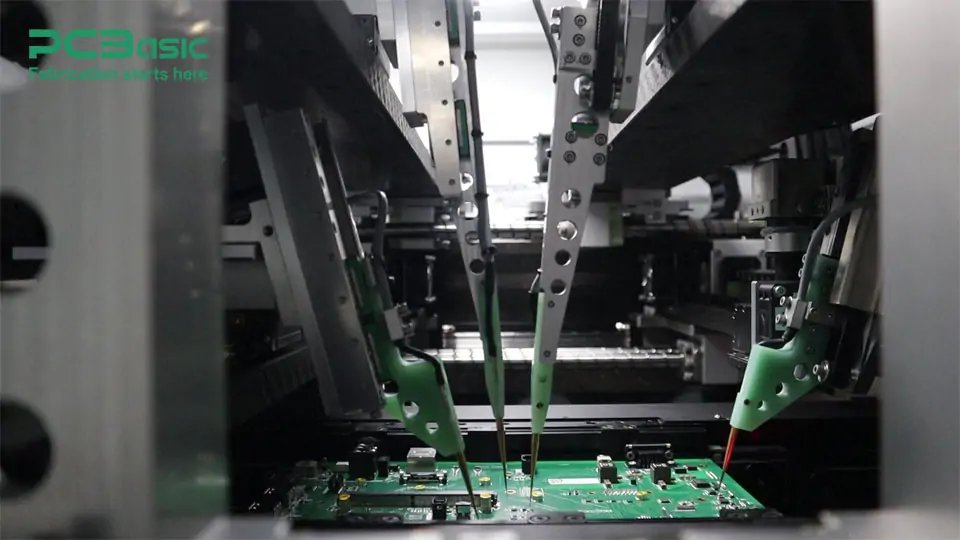

In PCB manufacturing and assembly, flying probe testing is a non-contact testing method for electronic boards that can test open circuit, short circuit, component orientation and other problems in electronic located in the circuit board, especially, for SMD components. In this method, a flying probe machine tests the connection by contacting test points on the test area of a circuit board with a series of test probes.

A software program in the flying probe tester controls the motion of the probes and the test points to be tested. This method is generally used in prototype or low-volume situation because it may be not cost-effective to build dedicated test fixtures for ICT testing.

Application of Flying Probe Testing in Electronics Industries

Flying probe testing is widely used in various electronic industries, mainly reflected in its ability to quickly and accurately detect the functionality and connectivity of the circuit board to ensure product quality and reliability.

1. Consumer Electronics

PCB assembly is widely used in the consumer electronics industry, such as smartphones, laptops, game consoles and smart home devices. Because these products often contain complex circuit boards with small SMD components, flying probe testing provides a cost-effective solution for detecting manufacturing defects such as soldering problems, component misalignment and connection failures. At the same time, the flying probe tester is also able to test bare boards and fully assembled circuit boards without the need for expensive ICT fixtures, making it ideal for high-mix, small-batch production.

2. Communication

The communications industry relies on high-performance circuit boards for devices such as routers, modems and network switches. These circuit boards are often required to withstand harsh environmental conditions and must be defect-free. Flying probe testing is very effective in ensuring quality as it enables a comprehensive inspection of all test points to detect potential failures of SMD components and through holes. The high test coverage provided by the flying probe tester enables rapid identification of issues that may affect performance and ensures that communication equipment meets industry standards.

3. Automotive

Automotive electronics have become an integral part of modern vehicles, driving functions ranging from infotainment systems to advanced driver-assistance systems (ADAS). Circuit boards in these applications must meet strict safety and performance standards. Flying probe testing can be used to ensure that test points are properly connected and there are no electrical problems such as short circuits or open circuits. In addition, it also allows manufacturers to inspect both sides of the PCB, ensuring that even complex PCB assemblies are thoroughly tested, thus avoiding production delays.

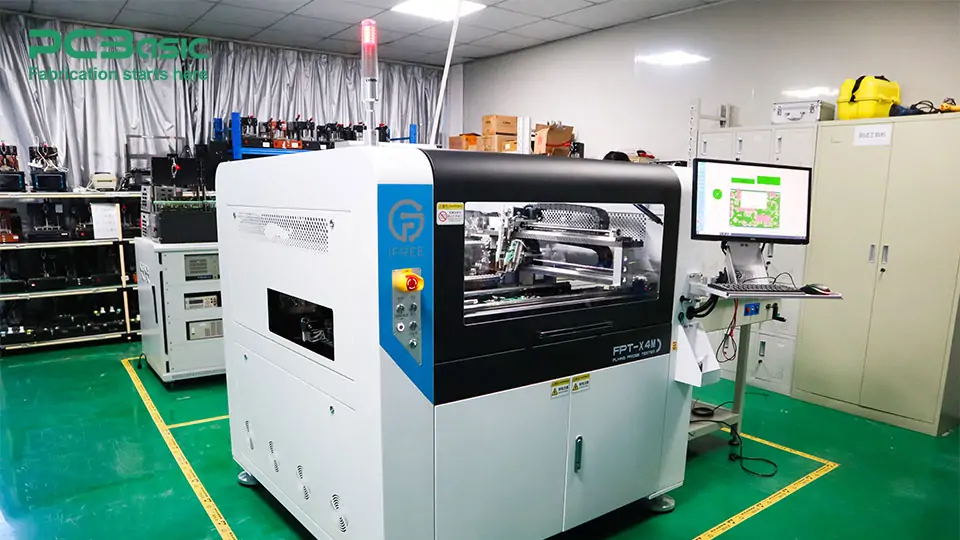

PCBasic: A leading PCBA Manufacturer with the Advanced Flying Probe Tester

PCBasic offers a full range of assembly services, including two-sided, three-layer and multilayer PCB assembly, flexible board (FPC) assembly, HDI high-density interconnect board assembly, and high-frequency board assembly. At the same time, PCBasic also provides SMT and DIP hybrid assembly, providing precision electronics assembly, automated production line assembly and PCB assembly services for various package types.

Through the introduction of advanced flying probe testing, PCBasic ensures the high-quality standards of every circuit board to meet the needs of various electronic products, including medical, communications, consumer electronics, aerospace and other industries, providing customers with better quality and more reliable products.

Conclusion

Fly probe testing is a critical method in PCB assembly with significant advantages, including cost-effectiveness, high test coverage and flexibility.  Whether you're dealing with consumer electronics, communications systems, automotive components, or medical devices, flying probe testing ensures that your circuit boards are defect-free and meet the highest industry standards.

Through the introduction of advanced flying probe testing and, PCBasic ensures the high-quality standards of your every circuit board to meet the needs of various electronic products.
