IRFZ44N MOSFET: Features, Applications, and Circuit Design Guide

The IRFZ44N MOSFET is a popular N-channel power MOSFET. It’s known for its loading capacity, switching speed, low on-state resistance, and ability to sustain high voltage. These characteristics make it a popular product among electronic appliances. Furthermore, you can use it in various applications including motor drivers, power supplies, microcontrollers, etc. These applications make it a famous choice among electronic appliances and professionals.

In the following sections, we will delve into the core features, pin configuration, technical specifications, and various applications of the IRFZ44N MOSFET. We will also use it in circuit design tips and how to choose the MOSFET. We’ll also share with you alternative explainer for MOSFET that you can use instead. In case you are not familiar with MOSET due to any reason, you can opt for other devices like the IRF3205 and IRF540N in your practical work.

What is IRFZ44N?

The IRFZ44N is a N-channel advancement MOSFET fabricated by International Rectifier. The package style is TO-220 and the construction style is planar. The application of the IRFZ44N is for high power switching. The maximum RMS current for this type of MOSFET is 49 A. It also has a drain-to-source voltage of 55 V. Furthermore, it has a low RDS(on) as it creates less power consumption when active. Thus, it is beneficial for power-saving applications.

The IRFZ44N is so common that it is employed across various applications ranging from DC motor controllers, switch mode power supplies (SMPS), LED lighting circuits, and much more. Therefore, it is appropriate for both commercial and professional purposes.” And, that is due to it’s improved structure and dispersion.

IRFZ44N Pin Configuration:

The IRFZ44N MOSFET has three primary terminals:

1. Gate (G): This terminal controls the switch of the MOSFET. A specific voltage of current is used here to switch either to or off the ‘MOSFET’.

2. Drain (D): In this terminal, the current flows out to the load.

3. Source (S): It is called the ground reference or the return path for the current.

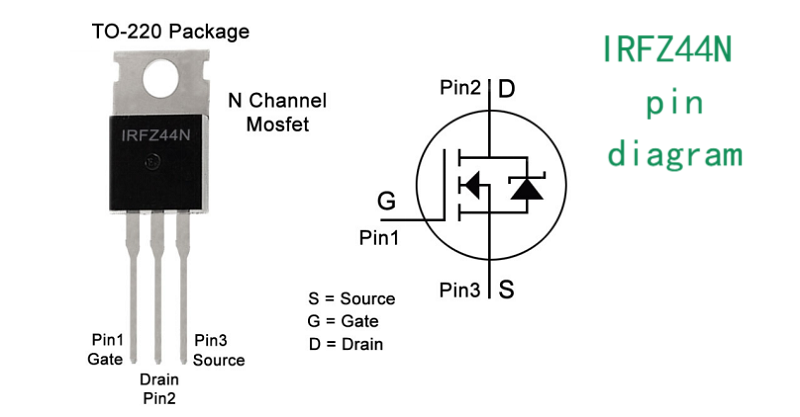

IRFZ44N pin diagram:

The fact that the IRFZ44N pinout is usable for any level of circuitry means that this component can be seamlessly integrated into large-scale electronic designs. Learning the pinout, therefore, allows for accurate circuits with no room for mistakes.

Key Features and Specifications of IRFZ44N:

According to my personal experience, understanding IRFZ44N’s key features and specs are very important to achieve a perfect electric circuit. So, here are the key features and specifications of IRFZ44N.

Technical Specification:

· Type: It is N-channel MOSFET.

· VDS (Drain-Source Voltage): It has a Drain Source Voltage of 55 V.

· ID (Continuous Drain Current): IRFZ44N has a Continuous Drain current of 49A.

· RDS (On-Resistance): It’s On Resistance is17.5mΩ.

· VSG (Gate-Source Voltage): It’s Gate Source Voltage is ±20V.

· Power Dissipation: It has a power dissipation of 94W.

· Operating Temperature Range: IRFZ44N can operate ideally in a temperature range of -55℃ to +175℃.

These characteristics indicate that the IRFZ44N is ideal for high-voltage, low-current applications.

Advantages of IRFZ44N:

You have just read the technical specs of IRFZ44N. That’s why it is one of the most used N-channel power MOSFET device for electronic and power control applications. Below are some of its key advantages:

1. Efficiency and performance:

If your device has lower RDS(on) (your device will be from 40 to 75 mOhm generally) during operation, then use IRFZ44N. It consumes less battery on low power settings and will optimize your device.

Furthermore, its high-speed switching ability avoids the transition losses, particularly in highly frequent voltage like inverters and SMPS.

2. Heat Dissipation and Power Handling:

Such a specification means that the MOSFET can run at extreme levels of voltages without burning out from excess energy consumption, thereby allowing for necessary and proper usage of supportive components like heat sinks for better usage and effectiveness in energy-oriented designs.

3. Wide Compatibility:

Among the main characteristics of the IRFZ44N are that there is a flexibility of using various control devices from a range of controllers. These controllers range from microcontroller devices, such as Arduino and Raspberry Pi, to industrial control systems.

IRFZ44N Applications:

The IRFZ44N belongs to a wide category of MOSFETS that are used in a number of electronic devices. It’s applications range from household use to industrial systems.

Common Applications:

IRFZ44N have some common application which are listed below.

1. Power switching:

The IRFZ44N is used mostly in the circuits where perfect power switching is expected such as SMPS integrated circuits and inverters. Consequently, due to its low on-resistance, there is a merely energy loss when the device is working.

2. Motor Control:

The high current capability of IRFZ44N is valuable in robotics and automation, particularly for DC motor drivers. It provides a smooth–running motor. At the same time, it enables motor to operate efficiently.

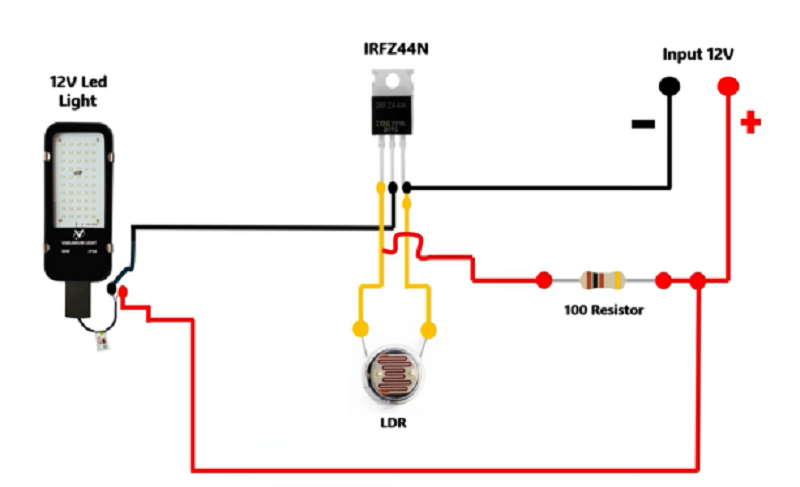

3. LED Drivers:

MOSFET provides the necessary stability of the LED brightness due to the high voltage control of IRFZ44N. Adding more, it will also increase the life of LED.

Specialized Applications:

The IRFZ44N MOSFET is specifically designed for applications like motor drivers, inverters, SMPS, and LED systems. And, this is because of its high current carrying capacity, low on-state resistance, and high-speed switching.

It also ensures durability and efficacy. Well, it’s a heavy hitter in battery management, EV controllers, and solar charge systems. It is also more widely used in audio amplifiers, inductive heating, and wireless power transmission technologies.

1. Microcontroller Projects:

This is especially useful for a micro controller-based project. These projects involve things like motor control, switching relays and high-voltage loads. It's simple pin configuration and ease of use makes it go-to board for hobbyists.

2. Industrial Automation and Automotive Systems:

The IRFZ44N is used in motor drivers for conveyor belts as well as robotics arms in these professions. Other applications are fuel injectors and electric vehicle sub-systems management.

Circuit Design with IRFZ44N:

If you want to design circuits with MOSFET, there are important aspects that you should familiarize with. Practical guidelines to ensure your electronic circuit’s optimal performance are given below:

How to Employ IRFZ44N MOSFET in a Circuit?

1. Gate Drive voltage:

For maximum enhancement, the gate voltage must be in the range of 10V – 15V. However, to increase voltage levels in the microcontroller base, a gate drive IC is often used.

2. Gate Resistor:

A resistor is connected in the circuit between the gate and the control circuit. This practice is to reduce inrush current and protect the gate. This resistor is usually of 100Ω.

3. Flyback Diode:

For inductive loads like motors, adding a fly-back diode across the load protects the IRFZ44N from voltage spikes.

Common Issues with IRFZ44N:

With all it’s pros and applications, you may face few issues with IRFZ44N. These issues are:

1. Overheating:

The MOSFET may be overheated if  proper cooling is not provided.  But don’t worry, we got a solution for you. Heat sinks should always be used to avoid overheating. Furthermore, better ventilation is also necessary in the circuit design.

2. Switching Delays:

When improper gate drive circuitry is used, the speed of switching becomes slow and results in low efficiency. You should prefer a fast gate driver in order to address this problem.

Tips for long- term Operation:

In this section, we’re going to provide you some tips for long term operation.

· It’s important to observe that the working conditions should remain in the voltage and current ratings of the MOSFET.

· You should emply standard methods of soldering to prevent short circuits, untidy wirings or loose joints.

· According to my personal experience, you should periodically check the signs of wear on parts and replace the worn-out parts in the system.

IRFZ44N Alternatives:

At this point, the IRFZ44N is ideal, but other MOSFETs could be better for special applications.

IRLZ44N:

It is designed to deliver lower gate drive voltage. Thus it is ideal for microphone control circuits.

IRF3205:

This MOSFET has higher current capabilities (110A) with similar high voltage figures.

IRF540N:

It handles higher voltages. IRFZ44N has a higher current rating compared to the IRF540N.

Comparing IRFZ44N with Other MOSFETs:

IRF3205 VS IRFZ44N:

The IRF3205 is better than the IRFZ44N in current and resistance. And, it’s recommended for high-power applications. On the other hand, the IRFZ44N is more sufficient and cheaper when compared to a high power design.

IRF540N VS IRFZ44N:

The specifications of the IRFZ44N demonstrate higher capability in current control. However the efficiency of the IRF540N boasts high voltage capabilities. The IRFZ44N is used in the low-voltage high-current circuit. On the other side, IRF540N is used in the higher-voltage application circuits.

Conclusion

Because it is a rugged device it is used in a good degree of applications. IRFZ44N is one of the favorites of engineers and other electronic lovers because of special properties provided by it. These terms are related to its error free output, maximum efficiency, and excellent performance on various types of circuits. Hence, IRFZ44N can be usesd in applications such as powering motors, driving LEDS / or general designing of an SMPS if in special design conditions. Hence, understanding its uses, capacity and other options can assist you to adopt the tool in your work plans and production processes. IRF3205 can also be used for high-power applications and other uses. However, for general purposes, the well known IRFZP4N MOSFET is the primary choice.

The tips and lines highlighted in this article will help you to achieve the premium designs. These optimized designs will be reliable for a long period of time. That’s how, your electronic circuits will give their best performance. In this regard, the IRFZ44N is not only a MOSFET; it is an ideal solution for today’s electronic devices. You can develop circuits to meet the requirements of modern technology by using its features.
