Nowadays,
most electronic products rely on surface mount technology (SMT) to achieve
smaller size, higher component density and more efficient production.
However,
even if the production line is highly automated, various SMT soldering defects
may still occur in the SMT process. These problems usually come from unstable
solder paste printing, inaccurate component placement, or unreasonable reflow
soldering temperature settings. Once these issues occur, they may lead to weak
solder joints, poor electrical connections, and, in severe cases, the product may
fail to work properly.
For
enterprises engaged in PCBA manufacturing, it is very important to understand
common SMT soldering defects. Only by understanding how these problems occur
and taking corrective actions in time can the production yield be improved and
the SMT assembly process be more stable and reliable.
Next,
we will introduce several common defects in SMT assembly, their causes, and the
solutions that can be adopted in actual production.
What is
SMT Assembly and Why Do Defects Matter?
SMT
assembly is a manufacturing process used for PCB assembly. During this process,
electronic components are directly mounted onto the surface of the circuit
board. This method uses surface mount technology (SMT), which allows components
to be smaller in size and placed more densely, thereby placing more components
in the limited PCB space. Therefore, in modern electronics production, SMT
assembly has become the most common assembly method in PCBA manufacturing.
Although
SMT assembly is highly automated, various problems may still occur during
production. If any step in the SMT process is not well controlled - such as
uneven solder paste printing, component placement misalignment, or
inappropriate reflow soldering temperature profile - different kinds of SMT
soldering defects may occur.
These
SMT soldering defects will directly affect the quality of the solder joints,
thereby influencing the normal operation of the circuit. For instance, solder bridging
may cause a short circuit, while insufficient solder may lead to open connections.
Therefore,
in the PCBA manufacturing process, it is very important to detect and reduce
SMT soldering defects in time. Only by controlling each step of the SMT process
well can stable and reliable solder joints be guaranteed, thereby improving
product quality and production yield.
Common
Defects in SMT Assembly with Causes and Solutions
The
following are some common SMT soldering defects that occur in SMT assembly and
PCBA manufacturing. PCBasic lists the causes of these soldering defects and the
corresponding solutions.

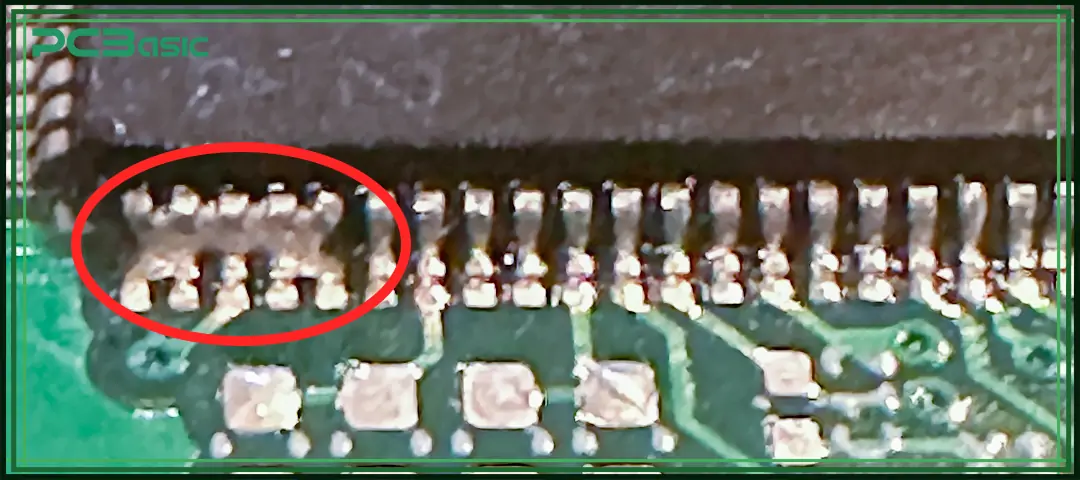

Solder
Bridging
Solder
bridging is one of the most common SMT soldering defects in SMT assembly. Solder
bridging occurs when the solder paste melts during reflow soldering and
connects two pads or component leads that should not be electrically connected
together.
In
PCB assembly, solder bridging can easily cause short circuits and, in serious
cases, result in product malfunction.
Causes
Common
causes include:
• Too
much solder paste during solder paste printing
• Component
misalignment during the SMT process
• Improper
stencil aperture design
• Incorrect
reflow soldering temperature profile
Solutions
In
SMT assembly, we can reduce solder bridging in the following way:
• Optimizing solder paste printing
parameters
• Adjusting stencil aperture size
• Improving the placement accuracy of
the pick-and-place machine
• Optimizing the reflow soldering
temperature profile
Insufficient
Solder
Insufficient
solder is also a common SMT soldering defect in PCBA manufacturing. This defect
occurs when there is insufficient solder paste on the PCB pads, resulting in
incomplete or weak solder joints.
Causes
Common causes include:
• Stencil apertures
blocked during solder paste printing
• Poor-quality
solder paste
• Improper PCB pad
design
• Unstable squeegee
pressure during printing
Solutions
In
SMT assembly, insufficient solder can be reduced through the following
measures:
• Clean the stencil regularly
• Use high-quality and stable solder
paste
• Inspect solder paste printing using
SPI equipment
• Ensure consistent and stable squeegee
pressure

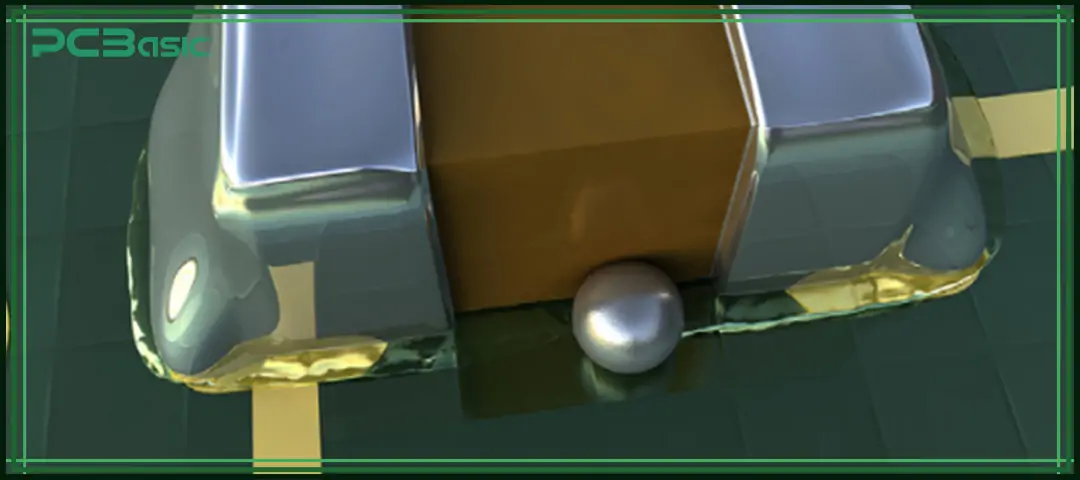

Solder
Balling
Solder
Balling refers to many small solder balls that appear around a component after
reflow soldering. If these small solder balls move, they may cause short
circuits during PCB assembly.
Causes
• Solder paste
contains moisture or has absorbed humidity
• The heating rate
during reflow soldering is too fast
• Excessive solder
paste
• Contamination on
the PCB surface
Solutions
• Store solder paste properly
• Adjust the heating rate of reflow
soldering
• Keep the PCB surface clean
• Improve control of the SMT process

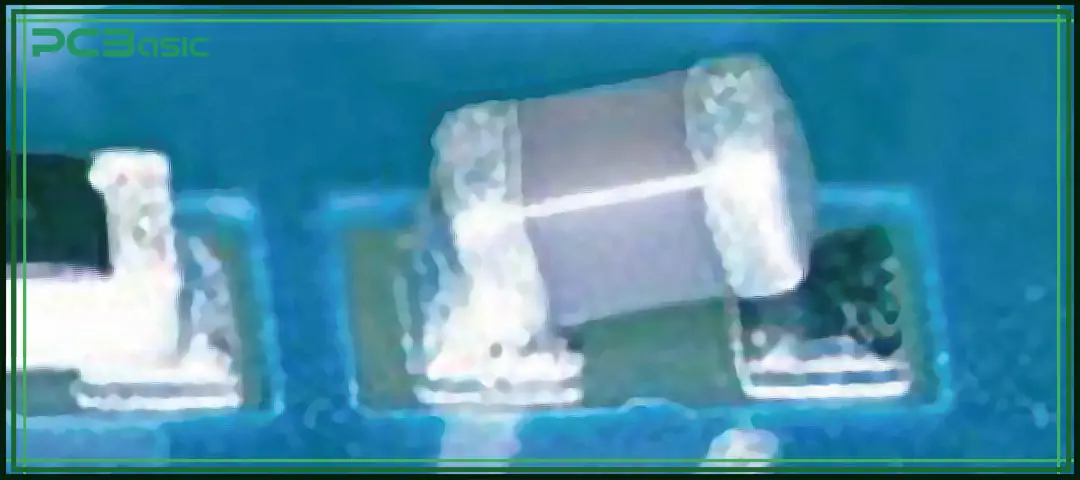

Tombstoning
Tombstoning
is a common type of SMT soldering defect. During reflow soldering, one end of
the small surface mount component lifts off the PCB and stands upright, making
it look like a tombstone.
Causes
• Uneven heating
during reflow soldering
• Unequal amounts
of solder paste on the two pads
• Unbalanced PCB
pad design
• Uneven copper
distribution on the PCB
Solutions
In
SMT assembly, tombstoning can be reduced through the following methods:
• Optimize the PCB pad design
• Ensure uniform solder paste printing
• Optimize the temperature distribution
during reflow soldering

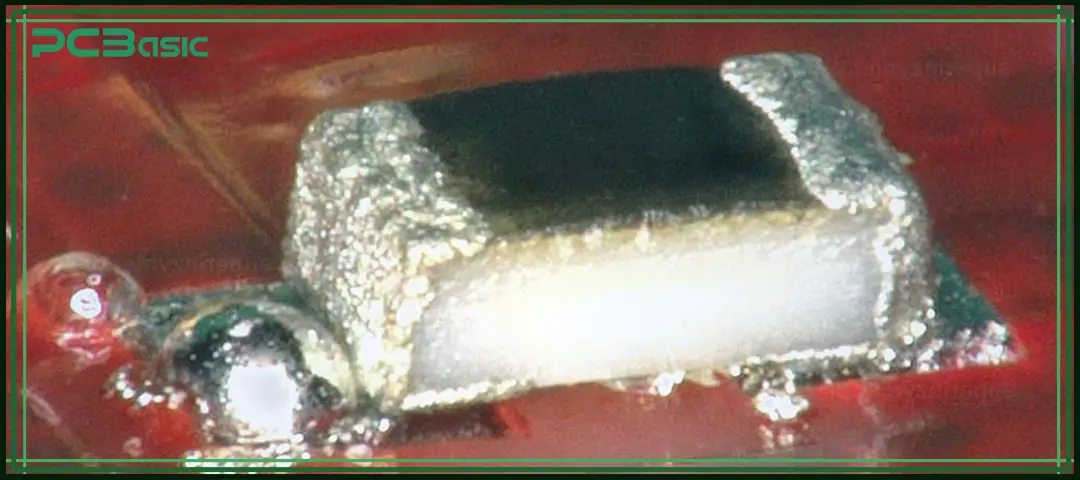

Non-wetting
/ De-wetting
Non-wetting
refers to a condition where the molten solder does not adhere to the PCB pads
or component leads during reflow soldering. De-wetting refers to the situation
where solder initially wets a surface but then retracts from it.
Both
of these situations will result in unreliable solder joints.
Causes
• Oxidation of PCB pads or component
leads
• Poor-quality solder paste
• Improper reflow soldering temperature
profile
• Contamination on the PCB surface
Solutions
• Improve the PCB surface finish
• Use stable and high-quality solder
paste
• Control the storage conditions of
components and PCBs
• Optimize the reflow soldering process

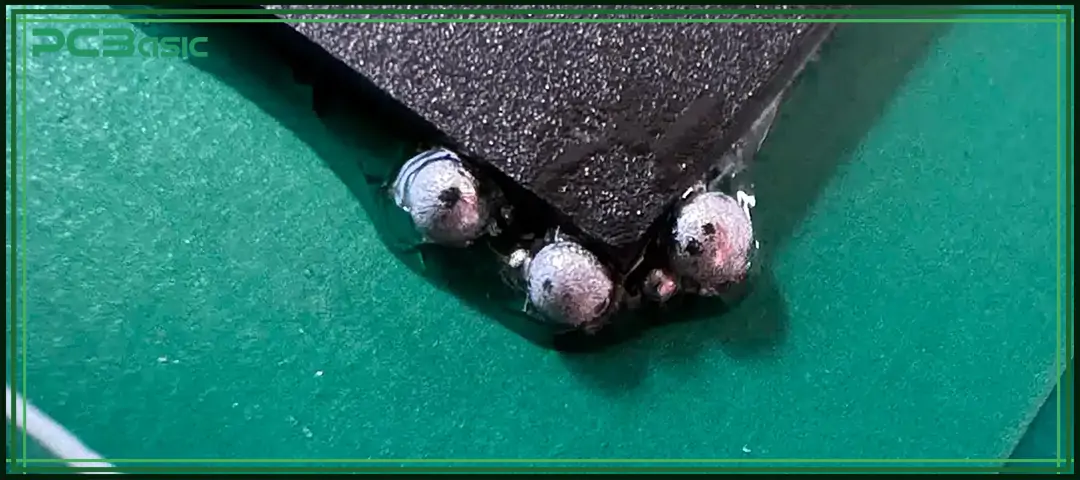

Solder
Beading
Solder
beading refers to small solder particles around components during SMT assembly.
If these particles move, they may cause short circuits.
Causes
• Excessive solder paste
• Improper stencil design
• Incorrect reflow soldering temperature
Solutions
• Adjust the stencil aperture size
• Optimize solder paste printing
• Improve control of the SMT process
Cold
Solder Joint
A
cold solder joint refers to the solder joint formed when the solder is not
completely melted during reflow soldering. Such solder joints are usually dull
and rough on the surface.
Causes
• The temperature
during reflow soldering is too low
• Poor-quality
solder paste
• Insufficient
heating time
Solutions
• Increase the
temperature of reflow soldering
• Use stable and
high-quality solder paste
• Adjust the reflow
temperature profile

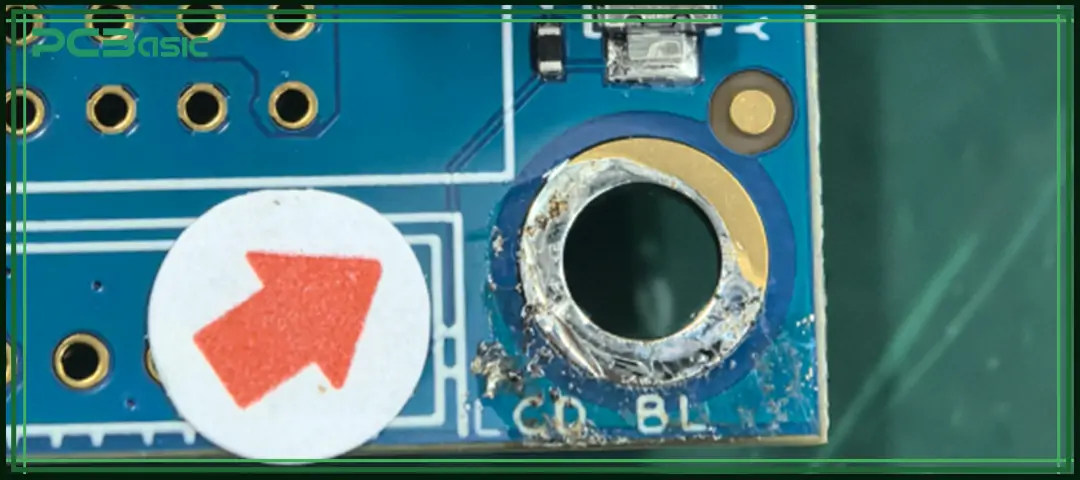

Slump
Slump
refers to the spreading of solder paste to the surrounding area before reflow
soldering, thus connecting adjacent pads together.
Causes
• Solder paste
viscosity is too low
• High workshop
temperature
• Excessive solder
paste printing
Solutions
• Use solder paste with higher viscosity
• Control the workshop temperature
• Optimize solder paste printing
About PCBasic
Time is money in your projects – and PCBasic gets it. PCBasic is a PCB assembly company that delivers fast, flawless results every time. Our comprehensive PCB assembly services include expert engineering support at every step, ensuring top quality in every board. As a leading PCB assembly manufacturer, we provide a one-stop solution that streamlines your supply chain. Partner with our advanced PCB prototype factory for quick turnarounds and superior results you can trust.
The
Effects of RoHS and Lead-Free Solder on Defects
The
implementation of the RoHS regulations has had a significant impact on PCBA
manufacturing, as the regulations require the use of lead-free solder paste in
production. Compared with the traditional tin-lead solder, lead-free reflow
soldering usually requires a higher soldering temperature.
Due
to changes in temperature and materials, some new SMT soldering defects are
also more likely to occur during the SMT assembly process.
For
example:
• Higher soldering temperatures may
increase the probability of solder balling
• The wetting performance of lead-free
alloys is usually not as good as that of traditional solders
• Tin whiskers may occur on certain
materials
Therefore,
when performing lead-free SMT assembly, manufacturers need to pay more
attention to process control, such as optimizing reflow soldering profiles and
selecting suitable solder paste materials, so as to reduce soldering defects
and improve product reliability.
Conclusion
Stable
and reliable SMT assembly is very important for achieving high-quality PCB
assembly. However, in actual production, various SMT soldering defects may
still occur in the SMT process, especially in the two key stages of solder
paste printing and reflow soldering.
If
one can understand common issues such as solder bridging, tombstoning, solder
balling and the head-in-pillow effect, it will be easier to identify the root causes
of the problems and take corresponding improvement actions in time.
In
actual production, by optimizing the SMT process, improving the solder paste
printing, and reasonably controlling the temperature and process parameters of
reflow soldering, it can form more stable and reliable solder joints, thereby
improving the overall SMT assembly quality and production yield.
FAQs
What
are the most common SMT soldering defects?
The
most common SMT soldering defects include solder bridging, tombstoning, solder
balling, non-wetting, and cold solder joints.
What
causes most SMT assembly defects?
Most
SMT assembly defects are caused by issues in solder paste printing, inaccurate
component placement, or incorrect reflow soldering profiles.
How
can manufacturers reduce SMT soldering defects?
Manufacturers
can reduce SMT soldering defects by optimizing the SMT process, using
high-quality solder paste, improving inspection methods, and carefully
controlling reflow soldering conditions.
