Bluetooth PCBs provide the wireless communications backbone in most electronic products. Bluetooth circuit boards are specifically designed with features such as Bluetooth chips, antennas, and regulators in order to communicate with each other wirelessly. Bluetooth PCBs enable devices to exchange information with each other without any hassle at short ranges in products from smart thermostats and health bands to industrial automation sensors.
Bluetooth boards in consumer products enable wireless audio streaming from headphones and voice control from smart speakers. In industrial products, Bluetooth boards provide real-time machine data streaming for control systems. A pre-certified module with a built-in Bluetooth chip, antenna, and firmware integrated in one board minimizes complexity in IoT product design. Pre-certified modules with such design convenience minimize design complexity and allow faster integration in products such as home automation gateways or health wearables.
The creation of IoT and smart devices incorporates the optimal Bluetooth PCB designs. Designers want miniaturization, less power usage, and maximum signal integrity in order to deliver specifications in terms of performance. In keyboard PCB or wearable health monitor PCB, the boards give function and physical specifications to existing electronics.

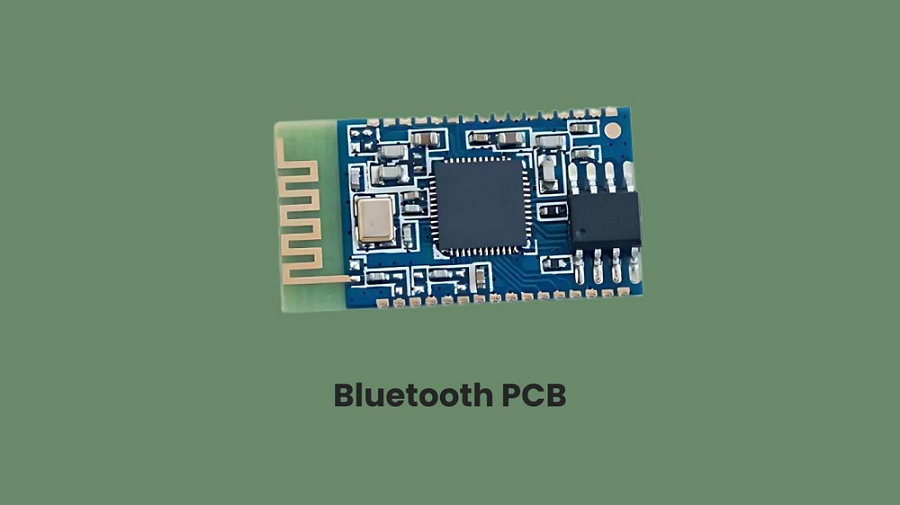

What is Bluetooth PCB?
A Bluetooth board is basic wireless transmission equipment made up of interconnected integrated circuits that are responsible for transmitting signals by emitting radio waves. Some of the most basic components of these boards are:
● Bluetooth chips: Process information and encode it to be sent.
● PCB Bluetooth antennas: Transmitter and receiver, usually traces or pieces of ceramic.
● Power control circuits: Control the voltage levels to keep them from messing with radio signals.
Without those necessary factors, not only wireless headphones, but even smart sensors just can't be stably connected. The lowest possible noise, optimal antenna placement, and lowest possible energy consumption necessary to support long-duration operation are design philosophies.
How does a Bluetooth PCB work?
By making both hardware and software sing beautifully together, bluetooth PCBs make wireless communication flow like a dreamy river. Here is a methodical breakdown:
●So the Bluetooth chip flips on first and goes through some setup like protocols like BLE. And it keeps looking for other gadgets that are nearby too.
●The chip turns digital data into radio wave impulses, let's say, turning audio from a phone into radio signals.
●The PCB Bluetooth antenna radiates 2.4 GHz, the accepted Bluetooth frequency range, these RF impulses.
●A linked device—such as wireless earbuds—receives signals via its antenna, which the chip decodes back into usable data.
●Acknowledgment signals guarantee that data packets arrive whole and retransmit missing bits.
Bluetooth chip hardware controls pairing, encryption, and power modes. For example, with headphones, a Bluetooth audio PCB spends alternating brief times in idle lowest power sitting around and also in active streaming of data. While RF filters remove interferences from Bluetooth signals and make sure that they don't get mixed up with signals from the cellular network or Wi-Fi, power management circuits also help keep the voltage steady and balanced during times when power usage really spikes up.
What is Bluetooth module?
Types of Bluetooth Modules

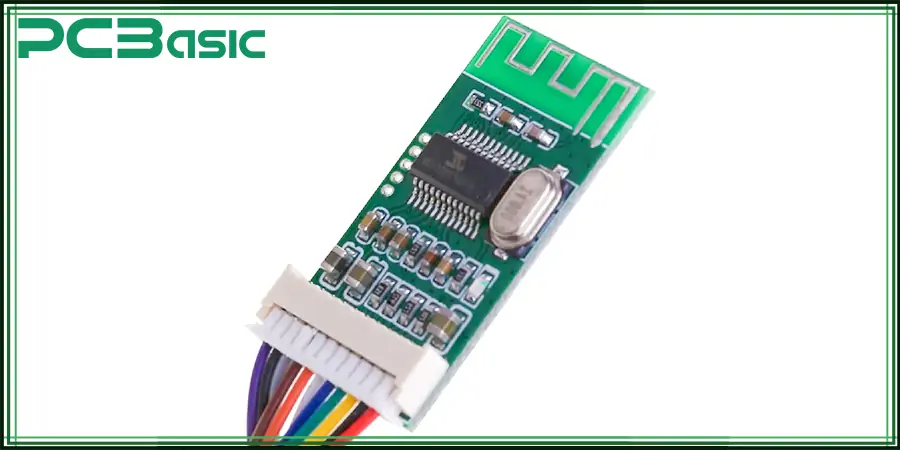

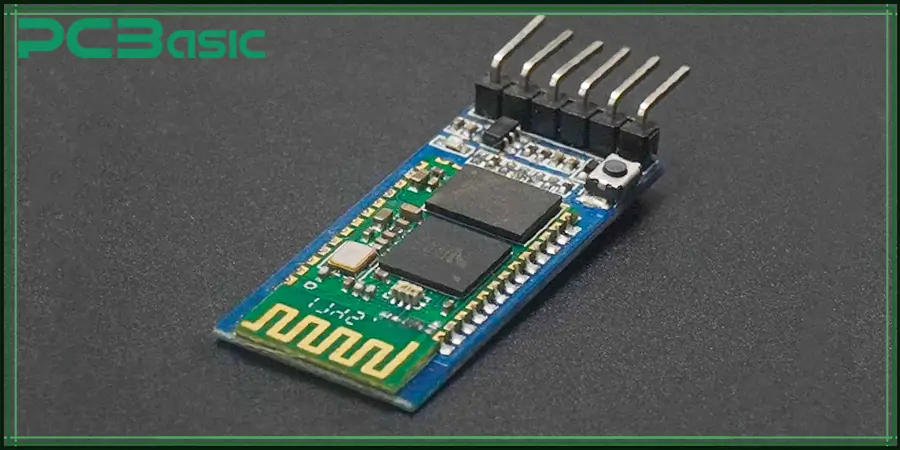

Bluetooth modules are pre-integrated modules that include a Bluetooth chip, an antenna, and firmware. They are utilized in prototype development of an IoT device or low-volume device since vendors do not need to design RF circuits from scratch. For instance, a smart thermostat may utilize a module to gain time-to-market.
Custom Bluetooth PCBs are designed to meet an end performance or size specification. Low cost products such as Bluetooth audio PCBs in wireless speakers employ low cost, application-specific designs. Factory equipment will need custom boards in order to be able to work in hostile environments or to demand high signal integrity.
When to use each:
●Modules: Prototyping, low-volume IoT applications, or projects with minimal RF knowledge.
●Custom PCBs: Mass production, particular applications (e.g., Bluetooth PC keyboard PCBs), or machines with small designs.
How does a Bluetooth module work?
The Bluetooth chip is the circuit board's central processing unit, which decodes and interprets wireless signals. The unit performs a myriad of tasks, including data transfer, device synchronization, and protocol handling (e.g., Bluetooth Low Energy). When choosing a suitable chip, engineers consider a number of parameters, including operating range, power consumption, and compatibility with various Bluetooth versions (e.g., 5.0 and 5.2). For example, wearable technology uses chips with very low power consumption, while industrial systems use chips with greater range capability.
Antenna Integration in Bluetooth PCBs
Antenna design has a direct effect on signal strength and reliability. Bluetooth antenna PCBs commonly use two techniques:
●Trace antennas: Copper traces on the board that are etched directly for low-cost purposes like Bluetooth keyboard PCBs.
●Chip antennas: Surface-mount, small antennas that are best suited for space-restricted devices (e.g., earbuds).
Positioning clear of metal obstructions and correct impedance matching (e.g., 50Ω) provide minimum signal loss.
Supporting Hardware for Stable Performance
●Voltage regulators provide a stable power supply to the Bluetooth chip, thus avoiding voltage fluctuation that may arise during transmission.
●RF filters: Prevent other wireless signals (cellular, Wi-Fi) and thus maintain data integrity.
●Decoupling capacitors: Bypass noise off of power lines, needed on high-frequency Bluetooth audio PCBs.
The combination of the constituents offers a compromise between performance, efficiency, and reliability appropriate for use in intelligent sensors or wireless audio players.
Bluetooth PCB Manufacturing
Develop plans to reduce disturbance
Careful trace routing enables natural signal integrity to be realized. High-frequency RF traces are routed in short linear segments to minimize bends and, therefore, crosstalk. Adequate space keeps digital traces away from RF signal-carrying traces to avoid electromagnetic interference (EMI). Sewing vias on the board edge reduces noise; good reference planes are bottom-ground planes that are grounded to the antenna and the Bluetooth chip. Utilizing Bluetooth audio-printed circuit boards (PCRs) keeps digital and analog components physically apart and audio signal distortion minimized to a great extent.
Designing Efficient Bluetooth Antenna PCB Layouts
Maximum power transfer from the antenna to the Bluetooth chip is achieved by impedance matching. From PCB substrate requirements, 50Ω wide transmission line minimizes signal reflection. Nests in an edge-mounted clearance area or clearance area prevent metal component contact. In Bluetooth keyboard PCBs, meander trace antennas to optimize space without compromising range. Prototype-level measurement of antenna efficiency by network analyzers substantiates this.
High-Density Circuit Board Thermal Conventions
Tightly mounted components generate heat such as Bluetooth keyboard PCBs do on boards of small form factor. Besides other power components, thermal vias allow voltage regulators to dissipate heat to the inner ground plane. FR-4 aid is among the high Tg low-temperature coefficient materials that prevent warping. The heat sink of the amplifier is densely packed copper pours made from Bluetooth audio PCBs. Designers also change the current density in traces to prevent hotspots under heavy use.
Bluetooth PCB Manufacturing Steps
Creating a Bluetooth board circuit is the same as creating a masterpiece where every step taken is deliberately significant. Quality procedures need to be diligently precise in order to create signals sharp and even and the final product long-lasting.
●Material Selection: FR4 is common for cheap Bluetooth audio PCBs, high-quality Rogers softgoods being used in high-end projects requiring high-frequency technology.
●Layer stacking: Power, RF, and digital regions are separated from one another by utilizing multi-layer boards to reduce interference.
●Etching is the chemical stripping of copper layers to create pathways that interconnect the Bluetooth chip, antenna, and peripherals.
●Micro vias and through holes drilling is creating the lead paths of various components and the paths between various layers of a circuit board. We're basically cutting into the board to get small walkways that electric stuff can use to communicate with one another.
Rogers substrates are employed by high-frequency Bluetooth PCBs to provide even dielectric properties and minimize signal loss to 2.4 GHz. FR 4, however, performs well enough to be employed by consumer products such as Bluetooth keyboard printed circuit boards because its price is very low and it performs that well as well. What this does is make it very cost-effective overall while being wonderful stuff to work with.
Bluetooth PCBA: Assembly and Quality Assurance
Surface-Mount Assembly for Bluetooth Components
Pick-and-place machines place Bluetooth chips, resistors, and capacitors onto solder-paste-coated boards automatically. Reflow ovens solder the paste, holding components such as the PCB Bluetooth antenna and RF filters in place. Vision systems place ultra-miniature components (e.g., 0201 capacitors) in microns. The process is appropriate for high-volume manufacturing of Bluetooth audio PCBs and wearables.
Testing Bluetooth Circuit Boards
●RF Performance Tests: Network analyzers quantify antenna efficiency and signal power across Bluetooth frequencies.
●Functional Validation: Devices are paired with smartphones or sensors to validate the consistency of data transmission.
●Compliance Testing: Boards are tested for certification (e.g., Bluetooth SIG standards) to gain worldwide market approval.
Defective units are rejected or repaired. Thus, customers get fully functional Bluetooth PCBs only.
Applications of Bluetooth PCB
Consumer Devices: Bluetooth Audio PCBs

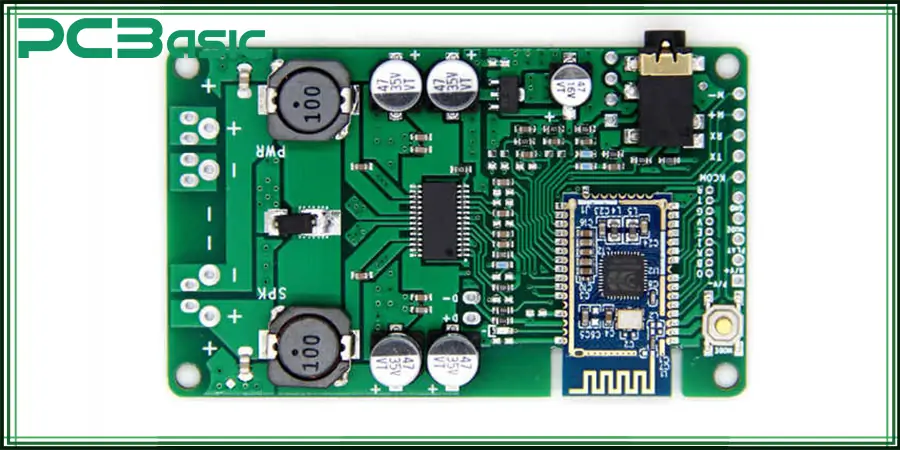

Bluetooth audio PCBs drive wireless earbuds, smart speakers, and hearing aids. Earbuds use tiny Bluetooth chips, MEMS microphones, and antennas on such boards to deliver sound efficiently. Smart speakers use multi-layered structures to deliver audio processing and Wi-Fi coexistence. Hearing aids use ultra-low-power Bluetooth circuit boards to deliver audio directly from smartphones for greater user accessibility.
Bluetooth Keyboard PCB Designs
Modern Bluetooth keyboard PCBs prioritize energy efficiency and ergonomics. Low-power microcontrollers achieve several months per charge of battery life. Scissor-switch or mechanical keyboard switcher configurations are routed to maintain optimal trace length and reduce latency. Integrated LEDs or touchpads are embedded in some models, with additional precautions taken for heat dissipation to prevent overheating in thin profiles.
Commercial and Automobile Uses

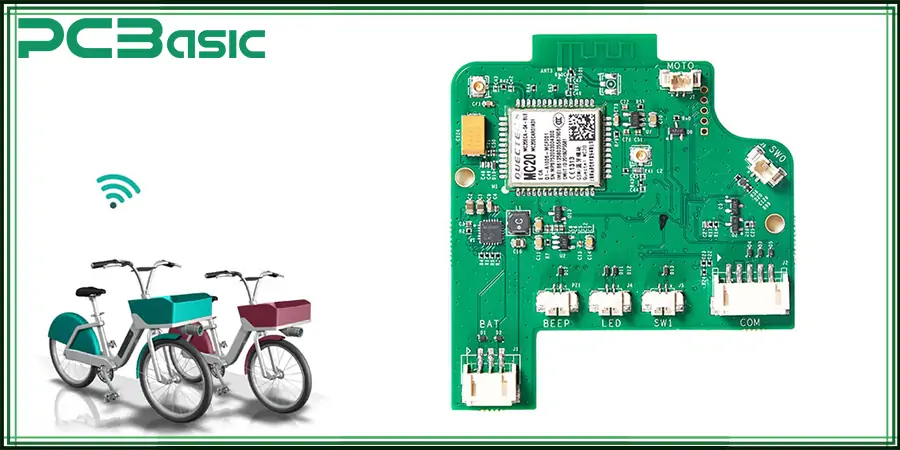

●Bluetooth PCBs in RFID tags track inventory in warehouses.
●Boards, including noise-immune Bluetooth antenna PCBs, enable hands-free calling and media streaming.
●Industrial IoT devices use tough Bluetooth circuit boards to transport machine data to central hubs.
PCBasic's Services to Bluetooth PCB Assembly
PCBasic medical wearables or military ruggedized IoT need specialty Bluetooth PCBs for their use. Designers modify layer stacks, material thickness, and antenna location for satisfying size, power, or ruggedizing requirements. Biocompatible substrates are used in implantable devices; conformal coating is needed for outdoor sensors.
PCVA Full-Service Program Bluetooth
Our reliable partner provides:
Functional prototypes for Bluetooth antenna PCB testing
Mass production of, for example, Bluetooth keyboard PCBs is carried out by robot assembly lines in batch production.
Stress testing, RF testing, FCC, and CE certification support are the outcomes of post-assembly testing.
The Objective
Next-gen technology includes fractal antennas with higher ranges, Bluetooth 5.4 low-latency protocols, and ultra-miniature Bluetooth chips, i.e., 2mm² packages, used in wearables. Energy harvesting battery-free designs can also eliminate batteries from sensors. To prevent signal integrity and standards compliance loss, however, such designs need careful Bluetooth PCB assembly. Professional designs are guaranteed to support evolving consumer, industrial, and automotive industry requirements.
