A breadboard is a must-have accessory for anyone who is building electronics no matter if it’s your first time doing so or you are an experienced hobbyist. It is an easy to use and readily constructible method of making electrical circuits for testing before soldering. A breadboard is used so that you can plug in and test various components and various designs within a short amount of time and can be done without the risk of causing damage.

Now it is high time to reveal some basics about breadboard and how it can be used in practice. At the end of the section, you will be able to design your own circuits with considerable ease.

What is a Breadboard?

Breadboard is a low cost, reusable platform that is utilized for constructing circuits without actually soldering the components. They include a plastic layer with holes disposed of in a linear and columnar pattern, thereby enabling one to connect electronics elements. The holes are individually connected and this is useful while closing the circuits by inserting the elements and wires.

Why is a Breadboard Important?

Breadboards are essential for electronics projects for several reasons:

●      Ease of Use: They are fairly easy to use, which is good for novices in the market. It can be easily designed in circuits, and there is no need to be an expert to add or remove circuits.

●      No Soldering Required: Breadboard interfaces are not soldered structures, so you are free to try out different combinations. If the current layout does not suit you, you can bet that you can change it as much as you want.

●      Cost-Effective: Breadboards are cheap, and they can be used many times. With this board, you can as well work on different projects while using the same board since it is cost-effective.

●      Learning Tool: They offer the practical means of gaining knowledge concerning electronics. You can watch how different pieces fit into and work in the whole process in real-time.

●      Prototyping: Intermediate users can quickly create their prototypes with breadboards. Ideas can be tried out without the commitment of a ‘permanent’ solution and an idea that does not work can easily be discarded.

It cannot be overemphasized just how useful breadboards are if you’re involved in any level of electrical or electronics practice, be it as a hobby or a professional.

Why is it Called a Breadboard?

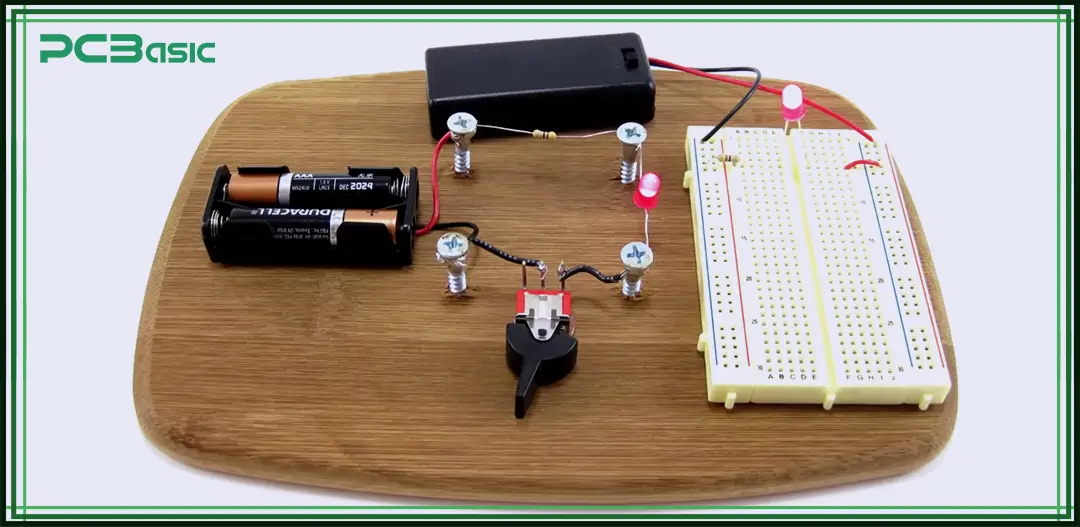

Breadboard is derived from the early era of electronics when circuit makers were using wooden boards which resembled large cutting boards of bread or ‘‘Porta’’. On this surface, they would employ nails or screws to secure parts such as wires and switches on the board.

Over time, new refined boards with superior designs replaced wooden breadboards, but the name has persisted to date. Today’s breadboards are plastic with holes and internal connections to help in linking circuits during circuit construction. In its primitive form, the term is with a view to underlining the fact that people of the past era involved in inventions were innovative.

Breadboard Basics



What Does a Breadboard Do?

A breadboard is essentially a meantime setup for holding electronic components in a manner that connects them for testing. There is the aspect of developing and eradicating circuits with the least use of solder wires hence making it easy to switch between them. This makes it suitable for experimentation before putting up a permanent power circuit.

What is a Breadboard Used For?

Breadboards are used in various ways, including:

●      Building Circuits: You build complex circuits easily to show how they function. This is excellent for practical exercise.

●      Troubleshooting Designs: When troubleshooting a circuit, it is easy to alter the design or fine tune the circuit if the circuit is on the breadboard. This makes it possible to define and correct mistakes without altering the structure of the system permanently.

●      Learning Electronics: These breadboards are particularly useful when the beginner is learning how the several components of electronics interconnect. The greatest aspect is flexibility, with setup changes showing an effect right away.

How Are Breadboards Connected?

Breadboards have a specific internal structure that helps you connect components:

●      Rows and Columns: Each row of holes is joined in the horizontal plane, but a vertical slit cuts across the rows splitting the whole into two.

●      Power Rails: The narrow strips on both sides, labeled as Power Rails, are joined in the transverse direction. These are mostly used to make connections between the power and ground in any circuit that is being energized.

Knowledge of these correlations is crucial, as well as knowing how to correctly put components and wires in order to form a functional circuit.

Understanding Breadboard Layout

Let’s understand the basic layout of Breadboard:

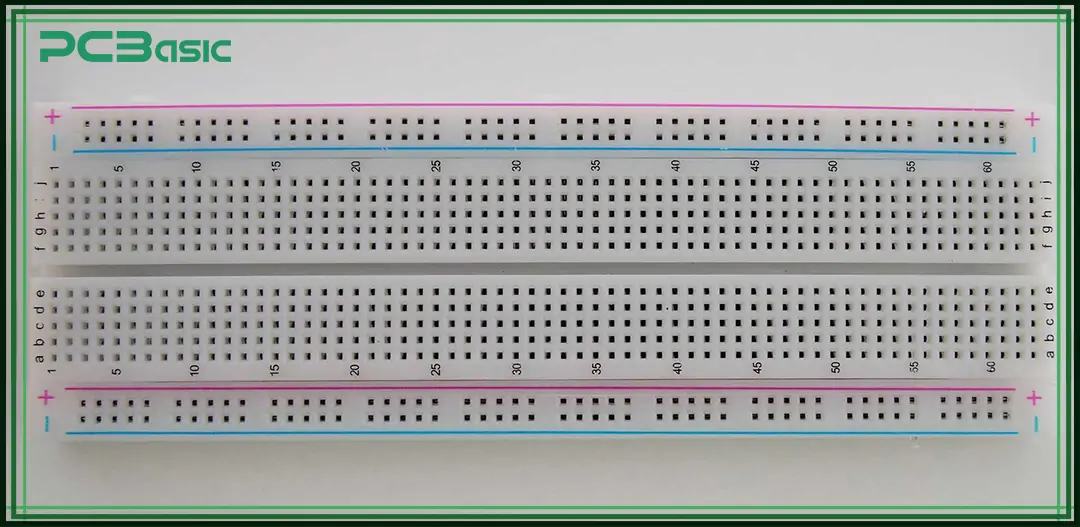

Breadboard Diagram

A breadboard is divided into sections that serve different purposes:

●      Power Rails: The long rows at the side are for power and grounds. They make it easier for you to supply electricity to your circuit.

●      Terminal Strips: The majority of electronic components are located in the center of the breadboard. The columns are grouped together in rows where components can interconnect or share connections in pairs.

●      Breakpoints in Connections: A central line divides the rows of the terminal strip across the middle. This is beneficial when placing certain elements such as the Integrated Circuits (ICs) where the side of the plane of the product connects to any side of the Plane of the IC rather than the side touching the other side of the Plane of the IC.

How Do Breadboards Work?

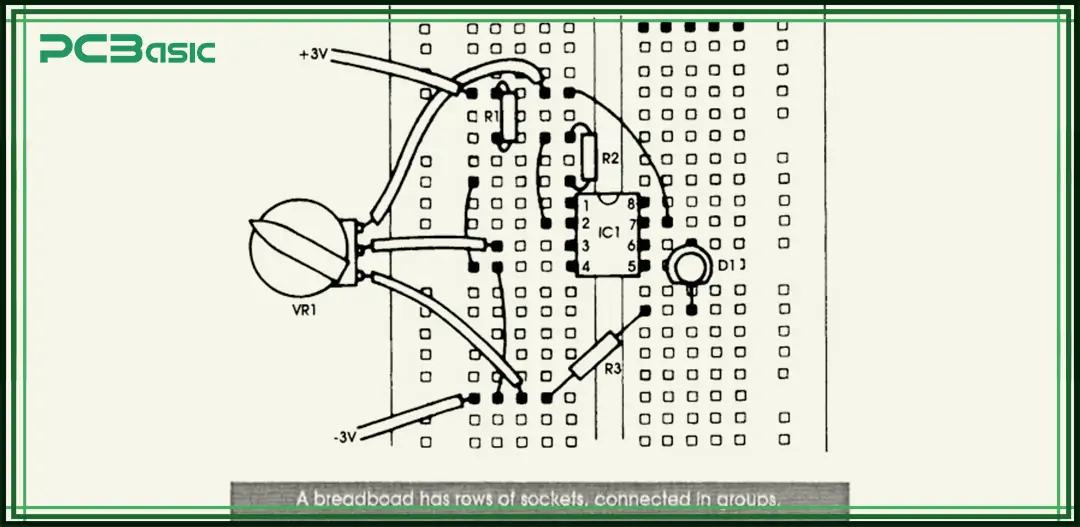

On a breadboard, when you place the components and wires into the holes, the internal metal traces make the connections.

●      In the terminal strips, adjacent holes in the same line are joined in such a way that components can engage with each other.

●      The power rails also allow a point of power delivery to the rest of the circuit as needed.

This design also makes it rather easy to build circuits just by inserting the parts and then connecting them with wires. It is easy to experiment and learn since it does not need soldering.

Breadboard Components

Let's explore the main breadboard components of the breadboard:

Essential Components

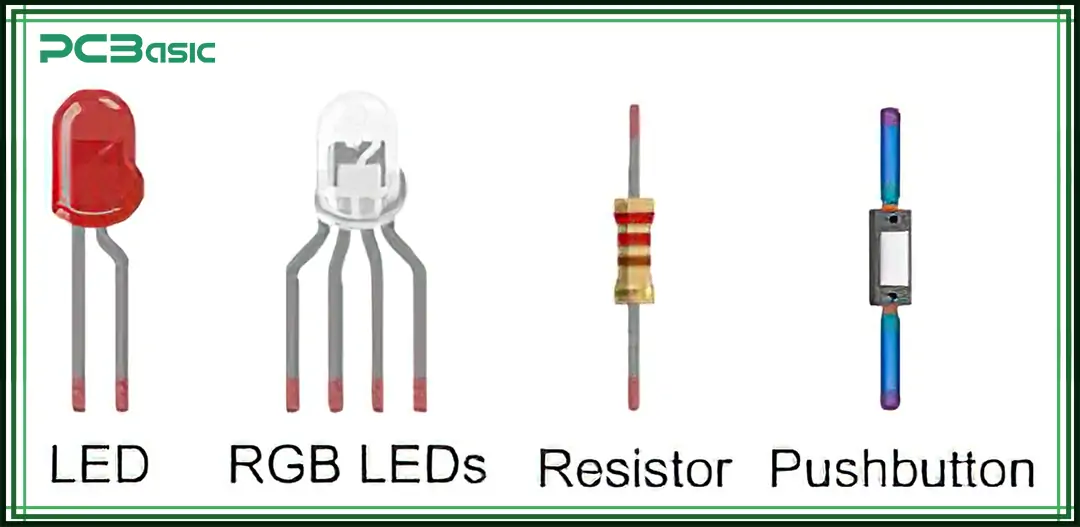

To use a breadboard effectively, you need several basic electronic breadboard components:

●      Resistors: Control the flow of current in a circuit.

●      Capacitors: To store and release electrical energy as required.

●      LEDs (Light-Emitting Diodes): Applied for indicators or lighting signs in the circuit.

●      Transistors: These are used to boost or convert electric signals.

●      ICs (Integrated Circuits): Versatile tiny chips that execute tasks in specific circuits.

●      Jumper Wires: Join various components of the circuit on the breadboard together.

●      Power Supply: This can be a battery or an external power source to offer energy to the circuit.

Breadboard Wiring

Proper wiring is key to building clear and functional circuits:

Types of Wires

It also recognized that solid core jumper wires are rigid making it easier to put into breadboards than flexible wires, which are used where connections may be bent.

Color Coding

Unique colors of the wire should be used for several functions so that the reader can easily distinguish it. For example:

●      Red: Power connections.

●      Black: Ground connections.

●      Other Colors: The interconnection between signals or breadboard components.

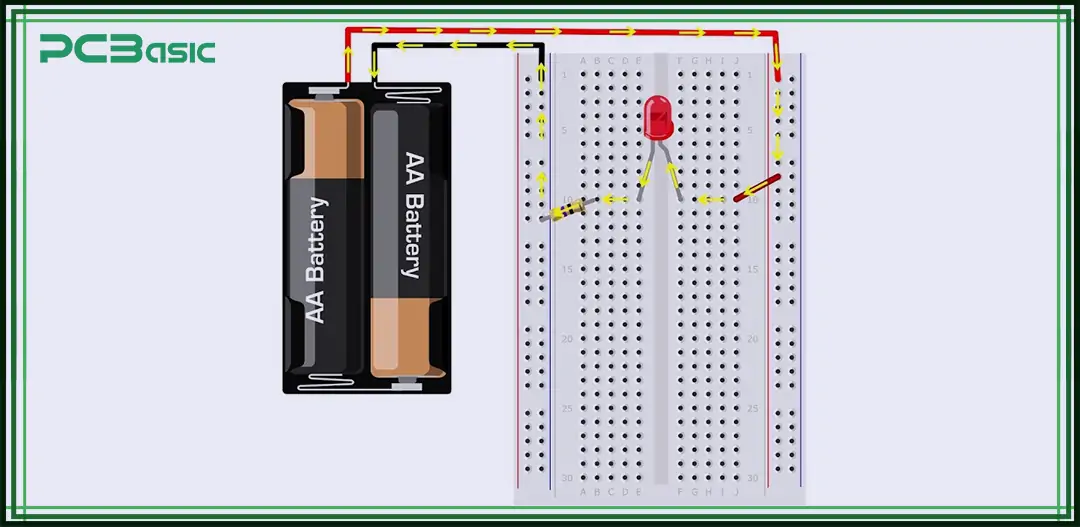

Step-by-Step Guide: How to Wire a Breadboard

It may look somewhat cumbersome as a first step to wire a breadboard, but believe me, if you follow these steps, making a circuit on a breadboard has never been easier! Here is how to wire a breadboard:

Step 1: Plan Your Circuit

You should always develop a strategy before beginning to run your circuit. There are two ways of developing this: on the breadboard diagram or graphically on a piece of paper. This assists you plan how every part will fit and get linked, together. Everyone knows that planning before implementing something will save time and minimize errors.

Step 2: Insert Components

You can fit resistors, LEDs & ICs, for instance, into the breadboard. Make sure each component’s legs are arranged in different rows so that they are not accidentally connected. For ICs, orient them in a way that they are placed over the central gap and only the top and bottom of the IC connect to one set of rows while the other portion connects to another set of rows.

Step 3: Connect Components with Wires

Arranging components according to the circuit plan makes it possible to connect them using jumper wires. Follow these tips for clean wiring:

●      Keep wires short to avoid tangling.

●      Employ the different colored wires as an indication of the connection type. Perhaps red means power and black means ground.

Step 4: Power the Breadboard

Connect ground line of your power source with the ground rails of the breadboard. Please do check on also the positive wire which should be connected to the positive rail and the negative wire should go to the ground rail. Cross-check the polarity to prevent short-circuiting or burning of parts.

Step 5: Test Your Circuit

After ensuring that all the components are connected move on and test the circuit. Common signs include checking whether the bulb of an LED is on or using a multimeter to measure voltage and current. If something has not worked, then go to the connections and try to search for the problem.

Common Mistakes and Troubleshooting

Here are some of the common mistakes we make in breadboard and how to troubleshoot them:

Loose Connections

One of the biggest problems that the breadboard has is that it is easy to make loose connections. Contacts may not be properly plugged into the holes; this will result in the formation of partial circuits. To fix this:

●      Insert each component and wire into the breadboard as far as possible The easiest way to do this is to use the fingers to push each of them in until they barely fit.

●      Check that the wires are not wobbly and that they properly contact the internal connections.

Misaligned Pins

Inadvertent swapping of one component pin with another can definitely affect a circuit or possibly make it dead. This is often true when pins are misplaced in rows or columns. It is clear that the performance is not optimal when pins are misplaced in rows or columns. To avoid this:

●      Before sending, ensure to double-check your circuit plan and all the pins in place.

●      For ICs, they should overlay the central gap so each side of the card mates with different rows on the board.

Short Circuits

In reality they mean short circuit which happens when wires or certain components bring power and ground together inadvertently. This can overheat the components or make the circuit to cease working as it is intended to. To identify and fix short circuits:

●      There are likely cables lying on top of one another or some parts mistakenly connected somewhere else.

●      On the one hand, you can switch from the continuity test to a multimeter to make measurements where the continuity is expected to be absent.

●      When unplugging or reinserting wires or any of its components,  make sure that they are properly being plugged in the correct places.

Using the guidelines, you can avoid these basic pitfalls and some tips to solve your breadboard circuits.

Advanced Breadboard Tips

If you have mastered the art of basic breadboarding, then follow these tips to make your projects more appealing. These will help you make your circuits less cluttered and more effective and give you new possibilities.

Tips for Clean Wiring

Neat work reduces confusion and makes your circuit easy to monitor and troubleshoot. To keep your breadboard neat:

●      Short wires should always be used especially when they are most likely to tangle.

●      I advise that whenever cables are trimmed, they should be neatly done with certain colors meant for certain connections: red for power and black for ground.

●      Tuck wires from nodes parallel to the breadboard to minimize congestion and to have better visibility of components.

Using Integrated Circuit

ICs are commonly used in advanced circuits, and proper placement is important:

●      Place the IC across the middle of the breadboard. This also makes it possible for each pin to connect to different rows of wiring.

●      Make use of the boxed datasheet to know how the pin operates, then connect them according to the recommended circuitry diagram.

●      When placing ICs, one should be careful not to bend or damage the many pins that come with the product.

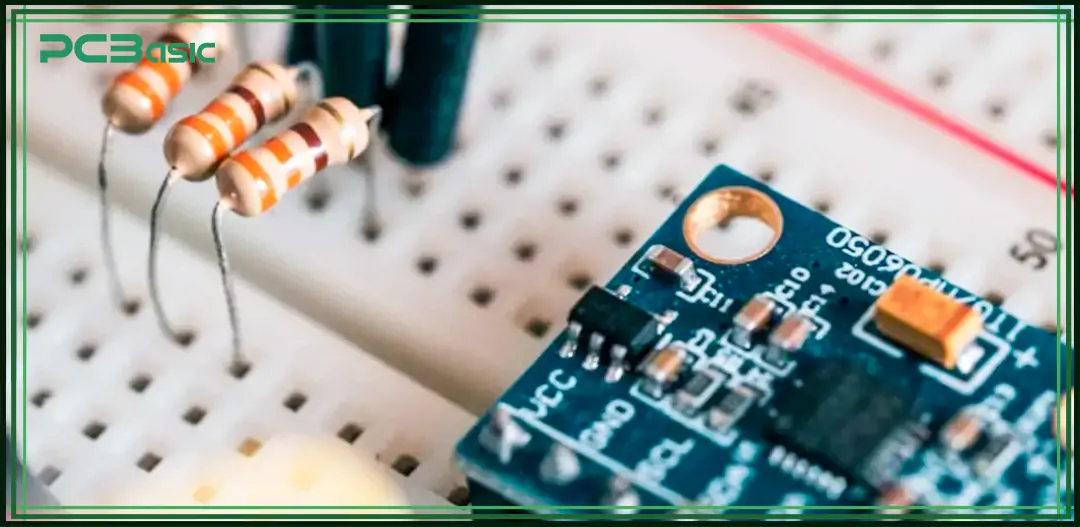

Connecting Sensors and Modules

The sensors and modules include temperature sensors, LCD displays or Wi-Fi modules, which are easily managed using breadboards. Here are some tips:

●      Check that sensors and modules receive the voltage level of the power supply. Most use 3.3V or 5V.

●      When you want to connect some pins of the module to the rows of the breadboard, you can use jumper wires.

●      If you have wired some connections incorrectly, the circuit may create problems; ensure that connections are tested before running the circuit.



From Breadboard to Final Project

If one has designed the circuit and tested it on a breadboard then one will want to transfer that circuit to a permanent board. This is crucial in this step to establish a stable and sustainable end products. Here is how to make that transition and explore more of the practical application out there.

Transferring to a Permanent Board



Here is how to transfer:

●      Choose the Right Board: Select a suitable permanent board, such as a printed circuit board (PCB) or a perfboard. While it's relatively easier to source for perfboards, PCBs look more professional, and they can be made to order.

●      Create a Schematic: Drawing a schematic diagram is very important when transferring your circuit before moving it. This will assist you to determine how some components shall interconnect on the new board.

●      Lay Out Components: When transferring the components on the new board ensure that you are aligning them to the schematic. Ensure you provide space for every part and every connection to be made.

●      Solder Connections: After the desired layout has been achieved, then the components should be soldered. Make sure that before leaving each connection, all are well tightened and that there are no short circuits.

●      Test the Final Circuit: Always check your final project after soldering to see that it functions perfectly as expected. This step is really important in order to address some errors while using the project.

Practical Applications

Breadboards form part of the transition towards assembling actual projects in the real world. They are used in:

●      Prototyping Electronics: Use electrical circuits to assemble alarms, sensors as well as lighting systems.

●      Educational Projects: Enable students and hobbyists to comprehend electronics principles.

●      DIY Projects: Try new concepts in home automation robotics or innovative gizmo.

Conclusion

Working with a breadboard is a good skill for anyone who is interested in electronics. Using breadboard is an advantage of constructing circuits because it doesn’t require soldering and is easily modifiable. This has been a guide towards understanding what a breadboard is, how to design and implement circuits within it, and the type of components to be used.

Building on your breadboard designs expands its horizons to utility where you get to solder your circuits on PCBs. This is especially the case in cases when a person has little to no experience in making electronic devices, as it has been seen above – learning to breadboard can open up lots of interesting electronic possibilities.
