Keyboard PCB – A Complete Guide

Keyboards are everywhere - whether it's the daily used laptop, high-performance gaming rig, or the common office setup. They all rely on one core component: the keyboard PCB. Under each set of keycaps lies this seemingly ordinary but crucial keyboard circuit board. It is responsible for connecting and controlling switches, LEDs and controllers, ensuring that every keystroke can be accurately recognized and responded to by the computer. Without it, the entire keyboard cannot function properly, let alone provide a stable and efficient input experience.

This article will introduce keyboard PCBs from multiple perspectives, including the basic concepts, common types, layout methods, key components of keyboard PCBs, as well as the differences between mechanical keyboards and membrane keyboards. In addition, it will also introduce the key factors that need to be considered when purchasing a custom keyboard PCB or a hotswap PCB, and help you understand how to select the appropriate keyboard assembly manufacturer or partner.

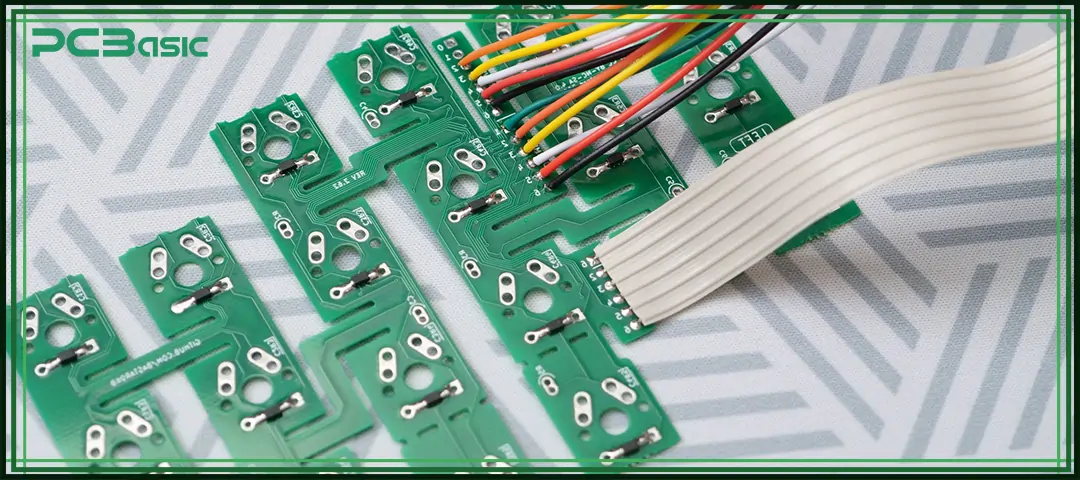

What is a Keyboard PCB?

Fundamentally speaking, the keyboard PCB is the most core foundation of the keyboard. It is like the "brain" and "nervous system" of the keyboard, responsible for transmitting every keystroke.

The function of the keyboard PCB is very simple. It connects mechanical switches, LEDs, Diodes and stabilizers. allowing each key press be transmitted through the keyboard circuit to the microcontroller, and the microcontroller then translates these actions into digital signals that the computer can recognize.

So, when you press a key on a mechanical keyboard, the keyboard schematic transmits the signal to the processor through the keyboard circuit board. The computer will then display the corresponding letters, numbers or commands. The keyboard simply cannot be used without a properly functioning PCB for keyboard.

In addition, custom PCB keyboard can offer more freedom to players and enthusiasts. You can design, program and even modify the details of the keyboard hardware by yourself. Whether it's the portable small-sized 60% PCB or the 75% keyboard PCB that combines functionality and compactness, they can all meet different needs and personalized choices.

Types of Keyboard PCBs

Not all keyboard PCBs are the same. They differ in structure, supported layout and functionality. From the flexible PCB suitable for portable devices to the hotswap PCB prepared for DIY enthusiasts, each keyboard circuit board has its unique advantages. Understanding these classifications can help us select the most suitable keyboard PCB to meet personal typing habits and project requirements.

By Construction

We can classify keyboard PCBs according to their structure, and each design has its own advantages and disadvantages.

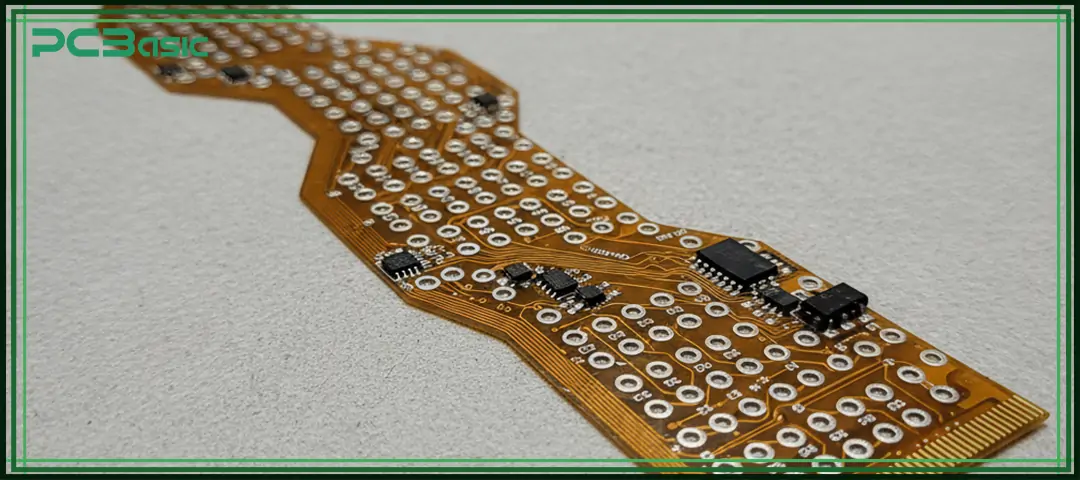

• Flexible PCB - Made from thin plastic material, it can be bent and folded. It is highly suitable for compact and portable keyboard designs. However, this type of keyboard is not very durable and may get damaged after long-term use.

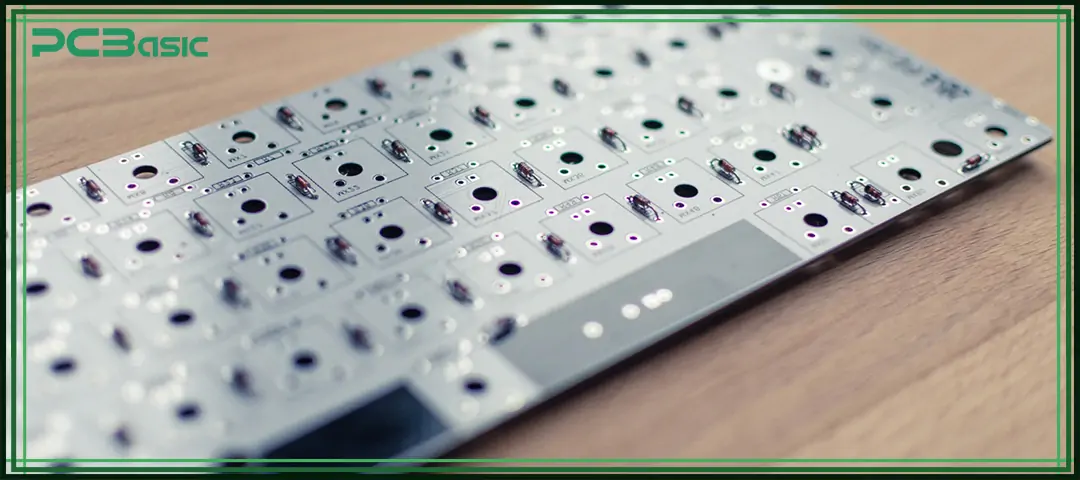

• Rigid PCB - The most common keyboard circuit board, usually made of FR4 fiberglass. It is strong and stable, suitable for long-term and heavy use, and therefore widely applied in most mechanical keyboard PCBs.

• Semi-Flexible PCB – A combination of flexible and rigid structures. It provides higher strength while maintaining a certain degree of adaptability, and is very suitable for custom keyboard PCBs that require special shapes but cannot sacrifice stability.

By Keyboard Layout

Different keyboard PCB designs determine the layout of the keyboard and directly affect our typing experience and desktop space utilization:

• Full-size (100% / 96%) - Featuring a complete function row, numpad and arrow keys, it is the top choice for office workers and professionals.

• Tenkeyless (80% / 75%) - Removing the numpad but keeping most of the functions. The 75% keyboard PCB not only saves space but also offers comprehensive functions, making it one of the most popular layouts at present.

• Compact (65% / 60%) - 65% and 60% keyboard PCBs are the most favored layouts by enthusiasts. They retain the core keys while significantly reducing the size, making them highly suitable for DIY keyboard PCB projects and portable use.

• Mini/Specialty Layouts - Smaller layouts, possibly with only 40% or fewer keys, mainly targeted at enthusiasts, or for custom PCB keyboards to meet unique keyboard hardware requirements.

By Functionality

Keyboard PCBs not only differ in construction and layout, but can also be classified into various types based on their functions:

• Hot-Swappable PCB (Hotswap PCB) - Supporting hot-swapping. Users can directly plug and pull mechanical switches without soldering. It is the first choice for DIY keyboard PCB enthusiasts because the switch replacement is simple and quick, making it convenient to try different typing feels.

• Wireless Keyboard PCB - Offering Bluetooth or radio frequency (RF) connectivity, freeing the keyboard from data cables and making it more suitable for modern portable or minimalist desktops.

• RGB Backlight PCB - Very common in custom PCB keyboards, it supports individual lighting for each key, providing rich lighting effects, and is very popular among gaming and personalized users.

• Standard vs. Mechanical vs. Membrane Keyboard PCBs - Mechanical keyboard PCB uses independent switches, durable and customizable. The PCB of the membrane keyboard uses rubber domes, which is low in cost but has a short lifespan. The standard keyboard PCB covers common office and notebook scenarios.

Components of a Keyboard PCB

The keyboard PCB schematic is not merely a few simple copper traces. In fact, it integrates a variety of key components to jointly ensure the normal operation and stable experience of the keyboard. The main components include:

• Processor (Microcontroller Unit) - This is the brain of the keyboard PCB. It can receive signals from the keys and convert these signals into digital commands that the computer can recognize.

• Scan Circuit - Composed of a series of circuits and electronic components, it is responsible for detecting key presses between rows and columns. When you press a certain key, the scanning circuit can immediately recognize the change at that position and transmit the signal to the processor.

• Matrix - This is the backbone of the keyboard circuit. The keys are arranged in rows and columns. The matrix can handle the situation where multiple keys are pressed simultaneously, avoiding misjudgment and ensuring that complex inputs can be accurately recognized.

• Diodes - A diode is usually added under each key. Its function is to prevent "ghosting", ensuring that even if you press multiple keys simultaneously, the signals do not interfere with each other, thereby enhancing the accuracy and reliability of input.

• LEDs & RGB Drivers - These components control the backlight effect of the keyboard and are particularly common in mechanical keyboards. They can achieve single-color or multi-color RGB lighting, and even support each key to light up independently, meeting the needs of gaming and personalization.

• Stabilizers - Installed under lager keys (such as the spacebar, Enter, and Shift), they are used to maintain the stability and balance of the keys.

Together, these parts constitute a complete keyboard assembly. It is precisely because of these components that the keyboard can operate stably, allowing every tap to be fed back to the computer quickly, accurately and comfortably.
