Common Wave Soldering Defects and Their Causes

In PCB assembly, wave soldering is a very common and efficient soldering method, mainly used for soldering through-hole components, and can also be applied to some surface mount devices. However, if the parameters are not well controlled, the wave soldering process can produce various soldering defects.

It is easy to have production issues without understanding the common types of soldering defects and their causes. Poorly controlled wave soldering may lead to solder defects and even cause repeated rework due to soldering mistakes, affecting the performance and reliability of the product.

This article will provide a detailed introduction to:

•  What is wave soldering

•  Why do soldering defects occur

•  Common soldering defects

•  How to reduce solder joint defects

•  How to stabilize wave soldering through parameter control

Whether you are an engineer, quality professional or PCB designer, understanding wave soldering defects can help you achieve higher yield and reduce problems.

What Is Wave Soldering?

Before discussing the common defects in wave soldering, let's briefly explain what wave soldering is.

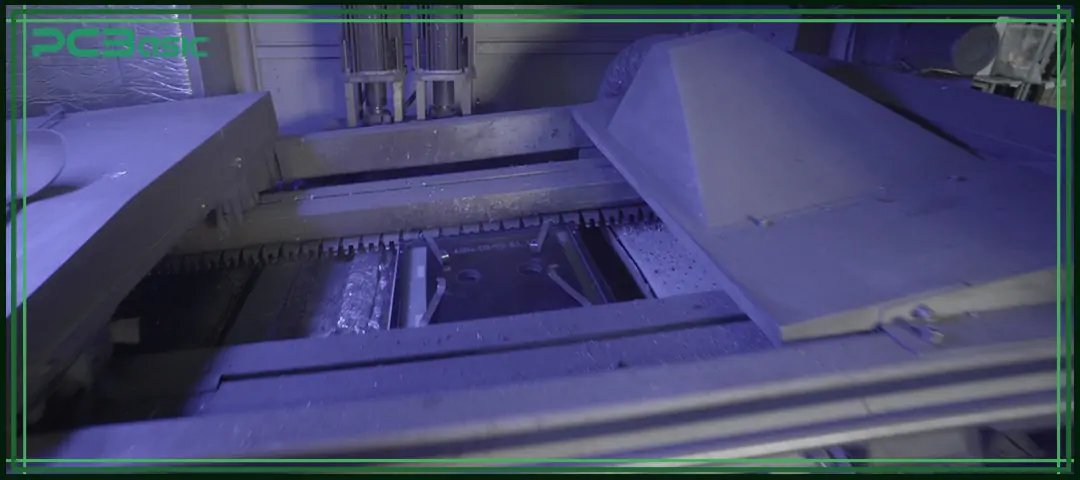

Wave soldering is a batch soldering method mainly used to solder electronic components onto PCBS. In the wave soldering process, the PCB passes through a flowing wave of molten tin. The solder liquid will automatically adhere to the exposed pads and component pins, forming a strong electrical and mechanical connection.

Wave soldering is a bulk soldering method mainly used to solder electronic components onto PCBs. In the wave soldering process, the PCB passes through a flowing wave of molten solder. The solder will automatically adhere to the exposed pads and component leads, forming a strong electrical and mechanical connection.

A standard wave soldering process generally includes several steps:

•  Flux application

•  PCB preheating

•  Passing through the molten solder wave

•  Cooling and solidification

Wave soldering is widely used because it is fast, efficient and more stable than manual soldering, and can reduce human-related soldering mistakes.

However, if the temperature, conveyor speed, or other parameters are not properly controlled, various soldering defects can easily occur.

Why Do Wave Soldering Defects Occur?

Although the wave soldering process is automated, it is still possible to produce soldering defects due to a variety of factors.

The following table summarizes the common causes in a clearer way:

Common Wave Soldering Defects (With Causes & Solutions)

Item	Solder Bridges / Shorts	Poor Hole Fill	Pin / Blow Holes	Cold Solder Joint	Lifted Pads	Solder Balls
Pictures
Description	Excess solder connects adjacent pins	Through-hole not fully filled with solder	Small holes or voids visible in solder joints	Dull surface with weak mechanical strength	Copper pad separates from PCB substrate	Small solder spheres scattered on PCB surface
Main Causes	Excessive wave height, slow conveyor speed, small pin spacing, poor flux control	Low solder temperature, insufficient contact time, improper hole-to-lead ratio	Moisture in PCB, excessive flux, insufficient preheating	Low solder temperature, insufficient contact time, oxidized pads	Overheating, mechanical stress, poor PCB quality	Excess flux, rapid heating, contamination
Solutions	Adjust wave height, optimize conveyor angle, improve pad design	Increase solder pot temperature, adjust conveyor speed, improve PCB design	Bake PCB before soldering, optimize preheat profile, control flux quantity	Increase solder temperature, improve flux activation, clean PCB surfaces	Reduce dwell time, improve PCB material grade	Optimize flux density, improve preheat ramp
Impact	Severe solder joint defects, may cause electrical shorts	Typical solder defects, affects mechanical strength	Common types of soldering defects	Common solder joint defects, often seen in bad soldering examples	Serious solder defects, affects long-term reliability	Common soldering mistakes, often caused by unstable wave soldering conditions
