Surface-mount devices (SMDs) are integral to modern electronics, offering compact and efficient solutions for mounting components on printed circuit boards (PCBs). This blog delves into the various aspects of SMD sizes, focusing on the significance of the size chart for different components like resistors, capacitors, and integrated circuits. We'll explore industry standards, package types, and how these elements influence PCB assembly.

 The Role of SMDs in Electronics

Surface-mount technology (SMT) revolutionized electronic manufacturing by allowing components to be mounted directly onto the surface of PCBs. This method is favored over through-hole technology due to its ability to support automation, reduce costs, and improve quality. SMD components are vital for creating compact and efficient electronic equipment, making them a cornerstone of modern electronics.

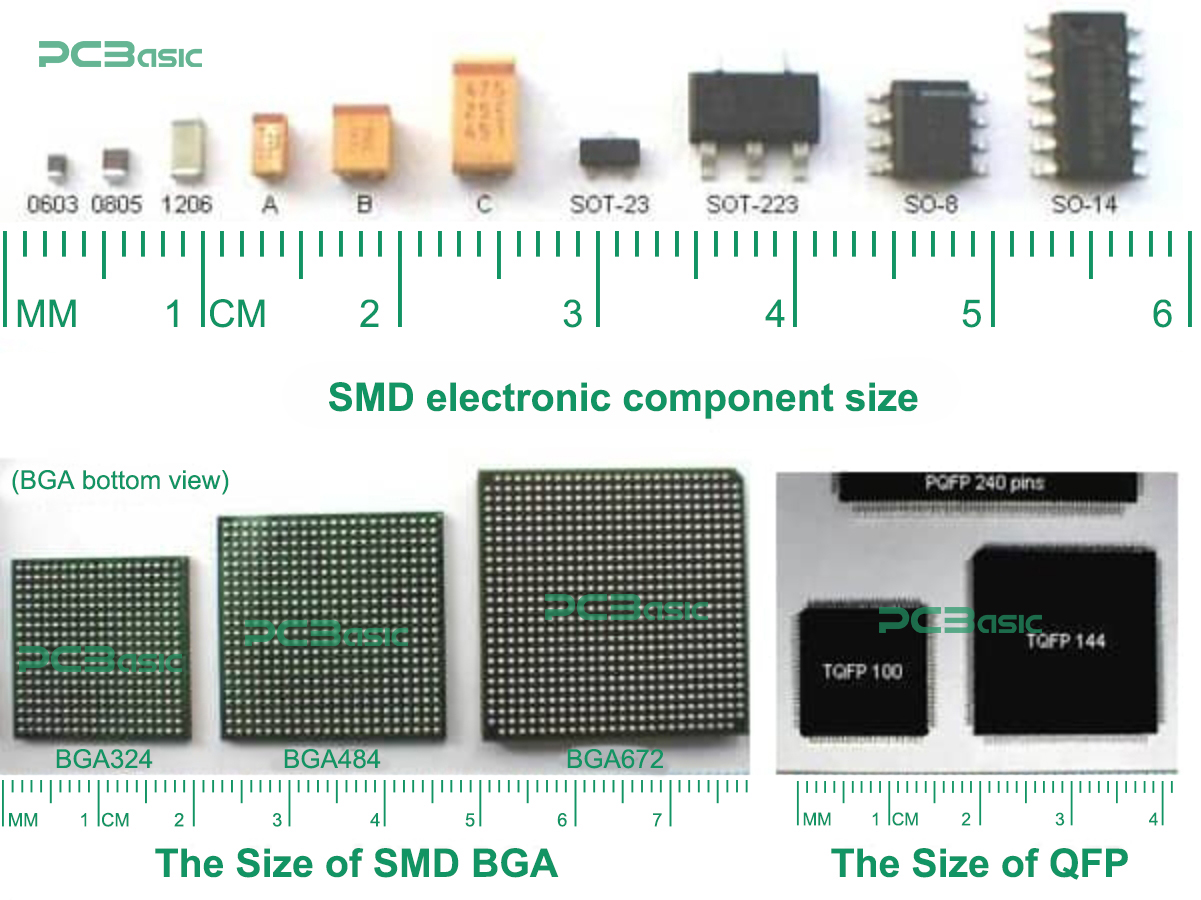

 Key SMD Package Sizes

Understanding SMD package sizes is crucial for designing and assembling PCBs. These sizes are typically represented in a size chart, which provides dimensions in both metric and imperial units. Common SMD resistor sizes include:

    - 0402: 1.0 x 0.5 mm

    - 0603: 1.5 x 0.8 mm

    - 0805: 2.0 x 1.3 mm

    - 1206: 3.2 x 1.6 mm

These sizes are standardized to ensure compatibility across different manufacturers and applications.

 Industry Standards for SMD Components

The electronics industry relies heavily on standards set by organizations like JEDEC and EIA to ensure consistency in component sizes and performance. These standards facilitate the design process by providing a common framework for component dimensions, known as industry standards.

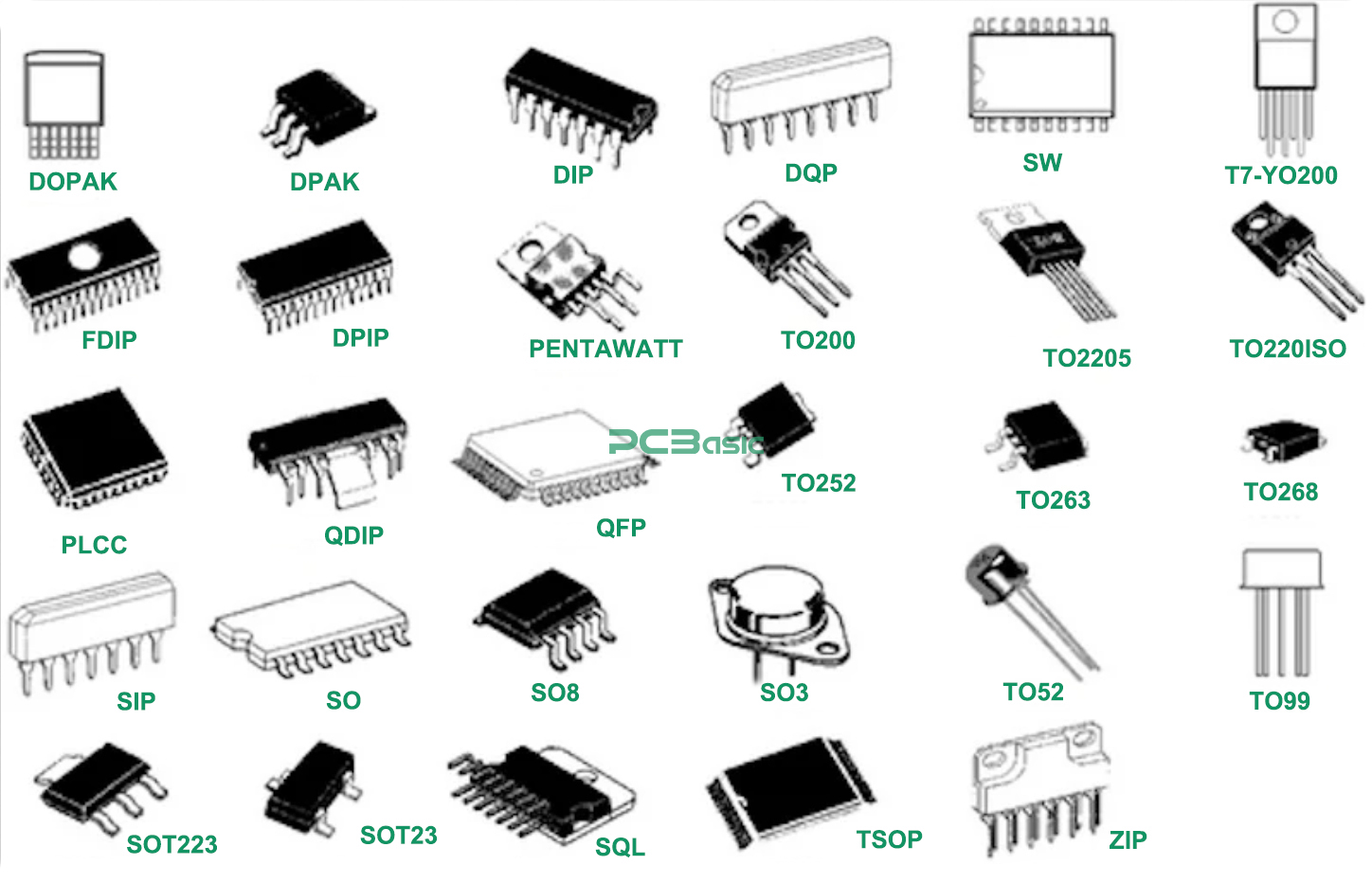

 Types of SMD Packages

SMD packages vary widely depending on the component type and application requirements. Some common package types include:

    - Flat Pack: Used for integrated circuits with flat leads extending from the sides.

    - Ball Grid Array (BGA): Utilizes a grid of solder balls for connections, ideal for high-density applications.

    - Small Outline Integrated Circuit (SOIC): Offers a compact footprint with gull-wing leads.

    - Quad Flat Pack (QFP): Features pins on all four sides, suitable for complex ICs.

These packages serve different purposes, from simple resistors to complex integrated circuits.

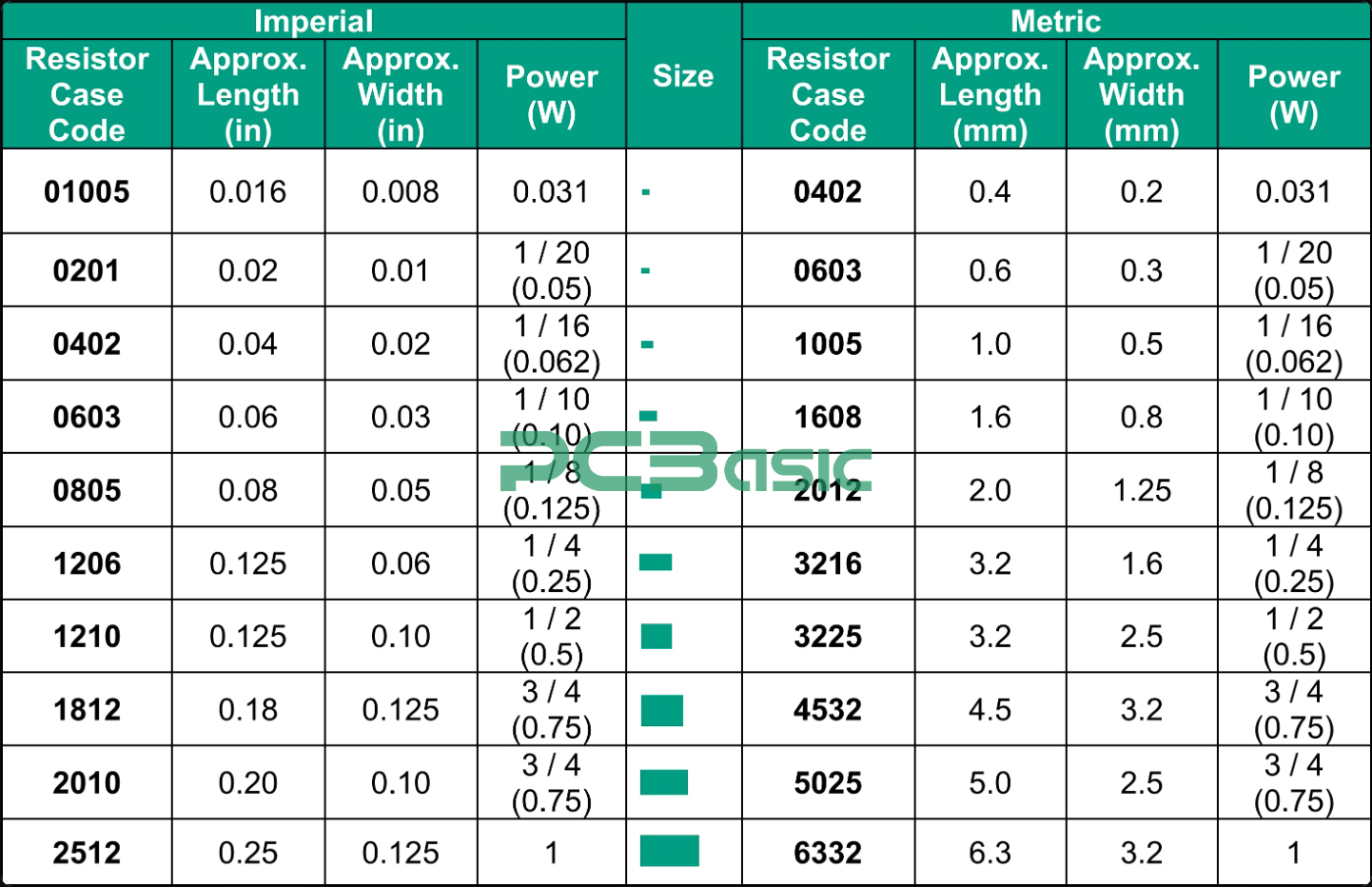

 Importance of Resistor Size Charts

A resistor size chart is an essential tool for engineers when selecting the appropriate resistor size for their designs. It provides information on dimensions, power ratings, and application suitability. For instance, a 0402 resistor size is ideal for compact spaces but has lower power handling compared to a larger 0603 resistor.

 Selecting the Right SMD Component

When choosing SMD components, it's crucial to consider factors such as:

    - Package Size: Smaller packages like the 0402 size are suitable for high-density boards but may be challenging to handle.

    - Power Rating: Larger packages generally offer higher power ratings.

    - Application Requirements: The choice between different package types like flat packs or BGAs depends on the specific needs of the application.

 Conclusion

SMD components are indispensable in modern electronics due to their efficiency and versatility. Understanding the various package sizes and industry standards is crucial for successful PCB assembly and design. By utilizing a comprehensive size chart and adhering to industry standards, engineers can ensure optimal performance and reliability in their electronic equipment. Whether you're dealing with simple resistors or complex integrated circuits, selecting the right SMD package is key to achieving your design goals.
