Reflow Soldering Principles and Precautions

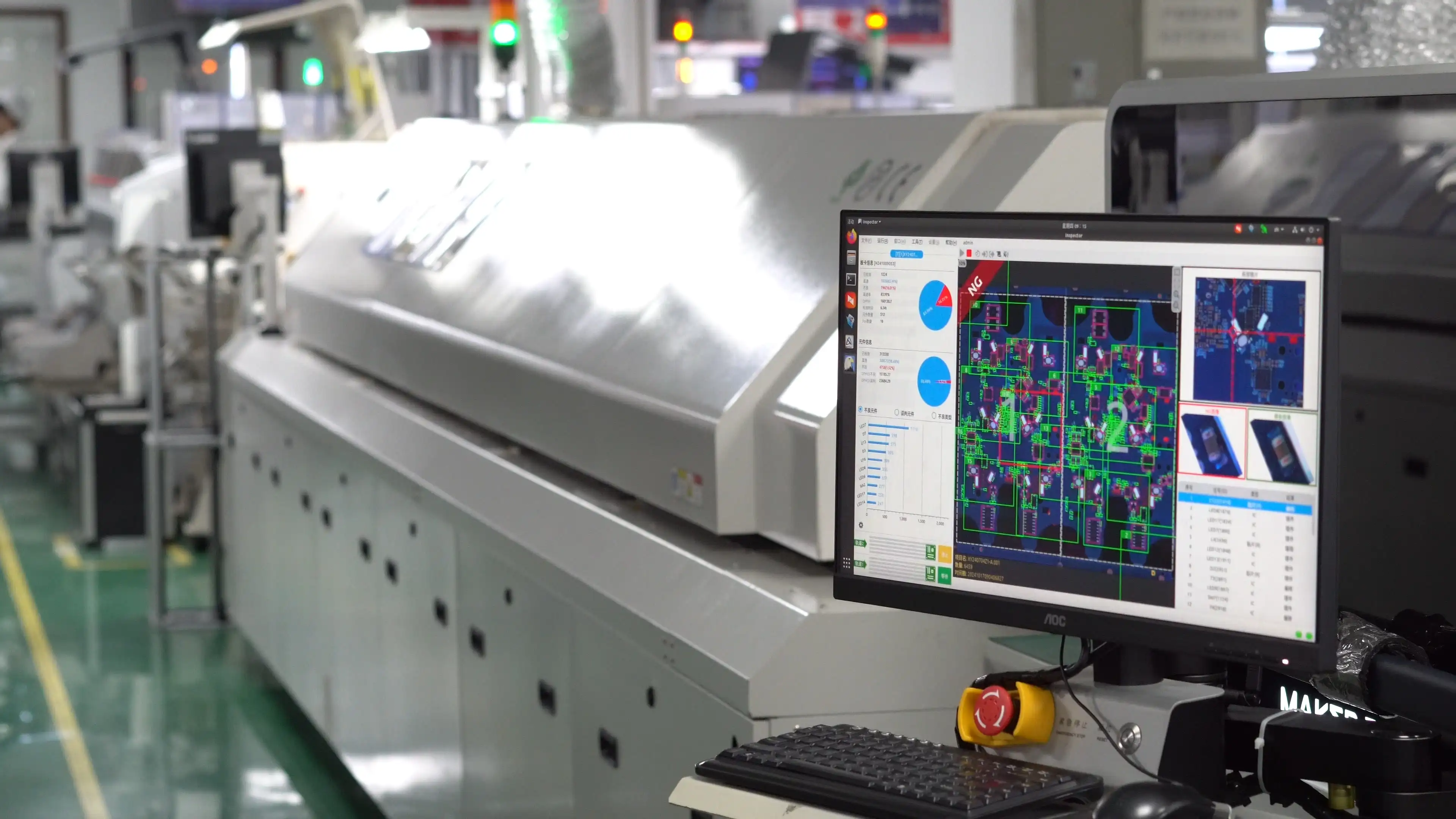

In the manufacturing and assembly of circuit boards, reliable soldering quality is crucial to the performance of electronic devices. Reflow soldering is one of the most common techniques in the modern circuit board assembly process and is a key step in connecting surface mount components (SMCs) to printed circuit boards (PCBs). This process is usually done in a precisely controlled reflow oven, which controls temperature profile carefully.

This blog helps you understand the principles behind reflow soldering, temperature zones, advantages, disadvantages, and key precautions to ensure successful solder joints during PCB assembly.

What is Reflow Soldering?

Reflow soldering is a process used for soldering electronic components, mainly in surface mount technology (SMT). The basic process is to put the solder paste coated PCB and surface mount components into the reflow oven, melting the solder paste through heating, forming the solder joint and then cool and solidify, so as to realize the soldering of the components and the circuit board.

Working Principle of Reflow Soldering

Reflow soldering has a very simple working principle, which is to control the oven temperature accurately. The solder paste has solder powder in it, which is melted by heating, and the solder liquid is filled in the gap between the component pins and the PCB pads, making them electrically and mechanically connected. Once the solder has completed this initial connection, the solder cools and solidifies, forming a solid solder joint connecting the components to the PCB.

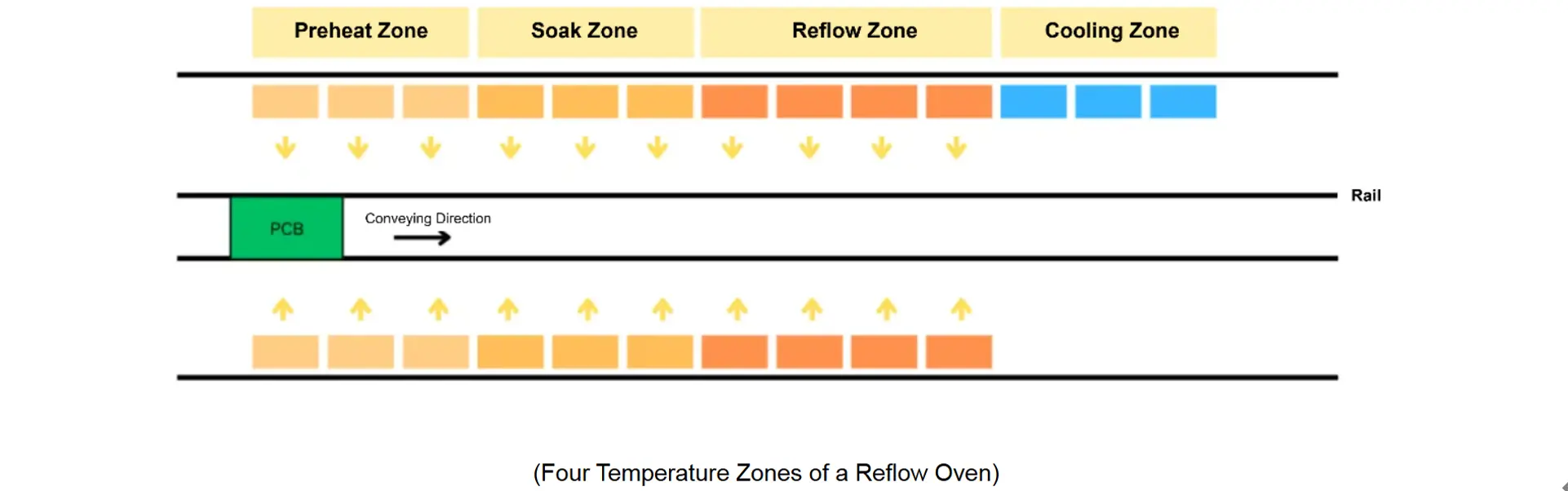

The Four Temperature Zones of Reflow Soldering

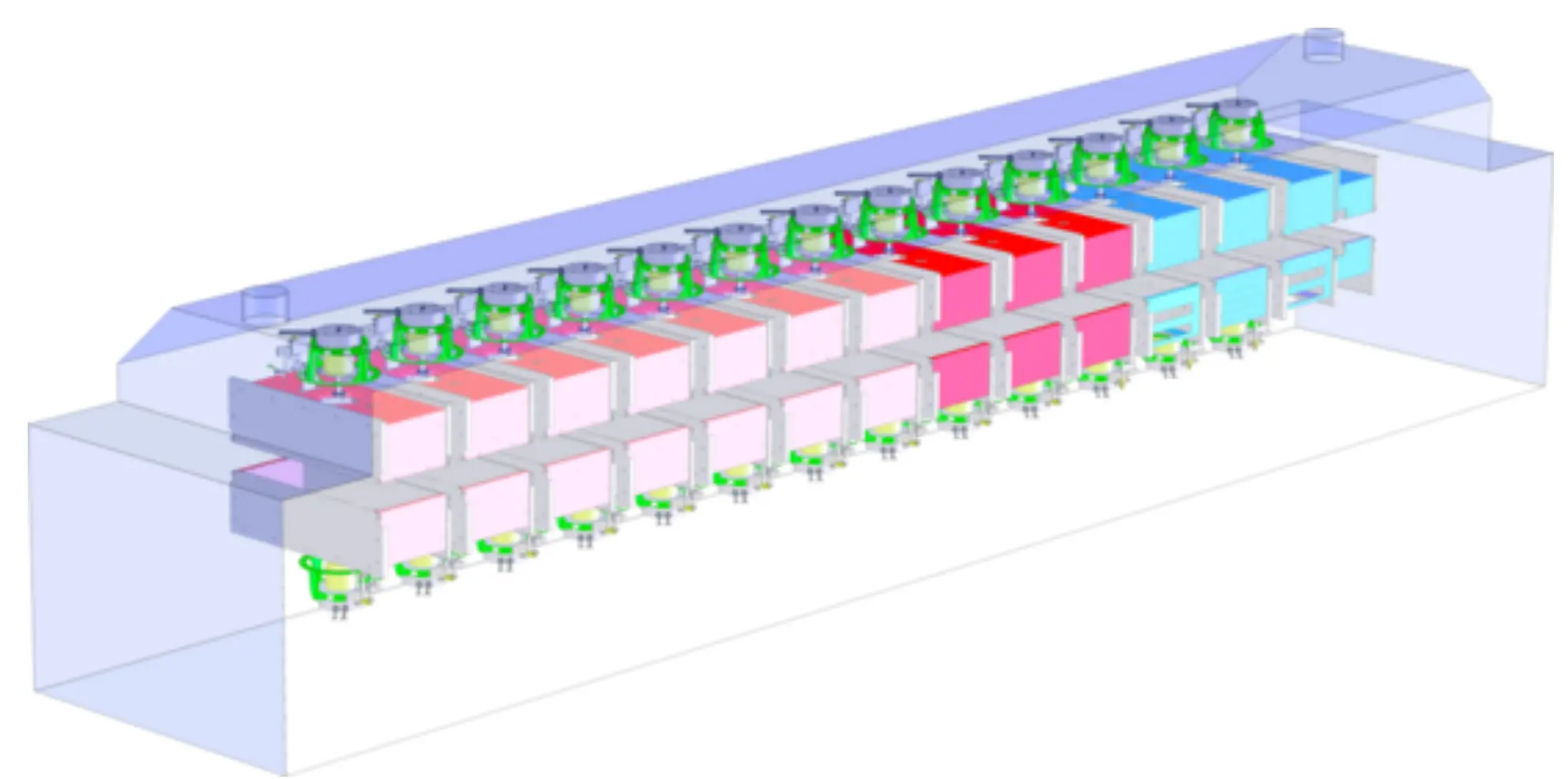

In the soldering oven used in reflow soldering, the soldering process contains four different temperature zones, which play different roles to provide a perfect PCB assembly. They include preheating zone, soak zone, reflow zone and cooling zone. Let’s dive a bit deeper into what each zone does!

Preheating Zone:

Once the PCB enters the soldering oven, it first goes through the preheating zone. The preheating temperature is generally about 150 ° C, lasting 60-90 seconds. At this stage, PCBs and surface mount components are gradually heating up. The preheating zone helps activate the flux in the solder paste and avoids thermal stress due to excessive temperature difference, preventing damage to SMT components or PCBs from warping.

Soak Zone:

After the preheating zone is finished, there is the soak zone. At this stage, the temperature continues to rise to between 150-200 ° C and the heating lasts for about 60-120 seconds. At this time, the flux in the solder paste will begin to activate, the solvent will evaporate, and the solder powder will gradually prepare to melt and connect with the solder pad, but the solder joint has not yet been completely formed. The goal at this stage is to ensure that the solder paste is evenly heated and ready to enter the melting state.

Reflow Zone:

The reflow zone is the most critical stage in the soldering process. At this stage, the oven temperature rises to the melting point of the solder (between about 220-250 ° C) and lasts for 20-40 seconds. The melted solder flows to the PCB pad and surface mount components to form solder joints, making a strong connection between the component pins and the PCB pad.

Cooling Zone:

Once the solder paste has melted and formed a solder joint, the circuit board enters the cooling zone. At this time, the temperature drops to room temperature, the PCB and solder joints cool and solidify rapidly. The cooling time is usually about 30-90 seconds. This cooling process must be carefully controlled, as too fast a cooling rate may result in poor solder joint quality, while too slow a cooling may result in excessive grain growth in the solder, affecting the reliability of the connections.

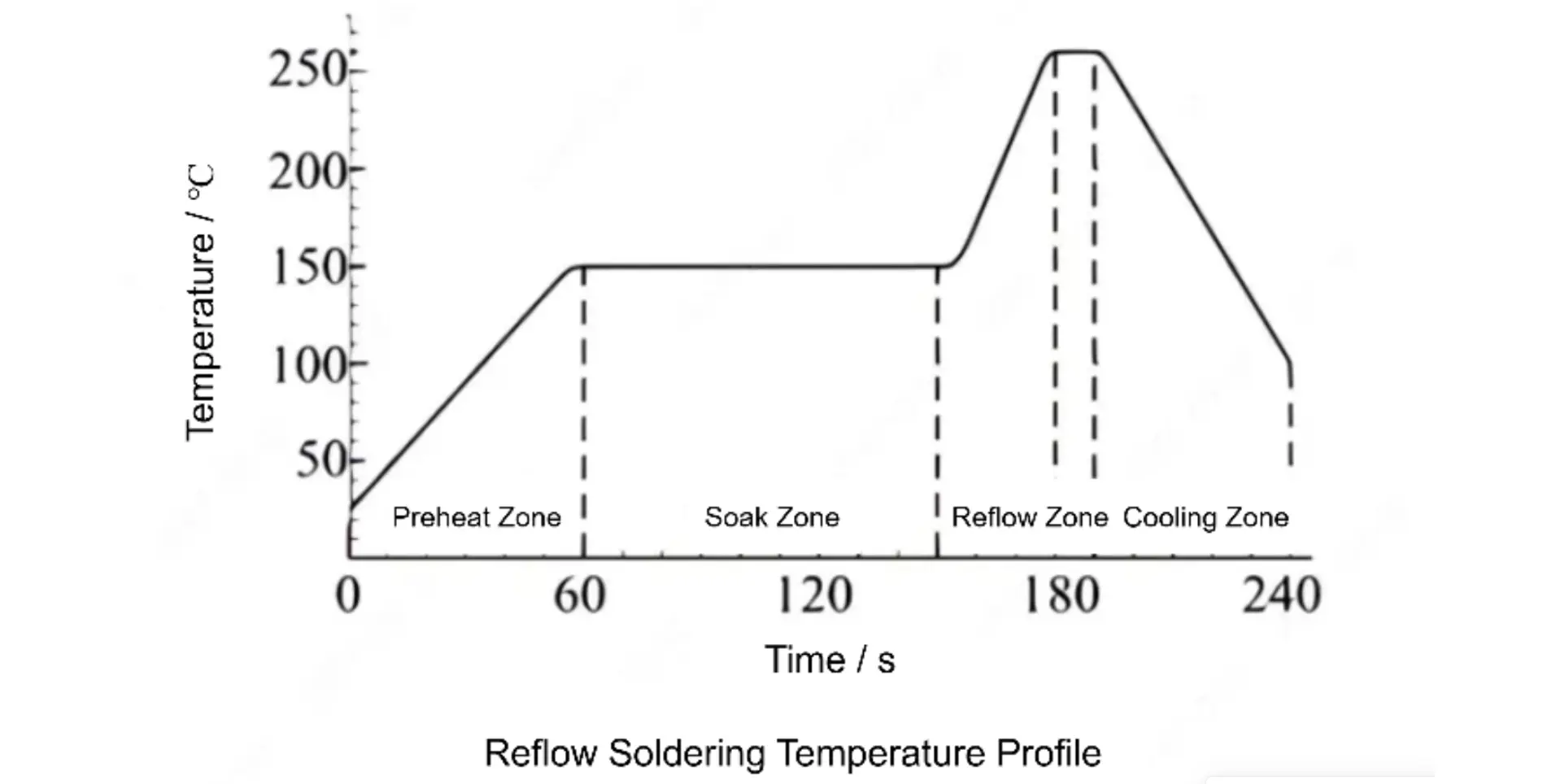

Although the reflow oven has four temperature zones and the temperature of each zone is not the same, the actual temperature of a temperature zone is also determined by the melting point of the solder paste, which depends on the type of solder used. For example, common solder types include lead-tin solder and lead-free solder, where lead-tin solder has a low melting point and lead-free solder has a relatively high melting point. Therefore, when setting the reflow profile, it is necessary to carefully refer to the technical data table provided by the solder paste supplier to ensure that the temperature settings for the preheating zone, soak zone, reflow zone and cooling zone meet the solder process requirements to ensure soldering quality and reliability.

Advantages and Disadvantages of Reflow Soldering

Reflow soldering has many advantages and has been widely used in modern electronic manufacturing, but it also has some disadvantages. Understanding the pros and cons of reflow soldering helps us make informed decisions during PCB assembly.

When operated correctly, the reflow soldering can produce highly consistent and accurate solder joints. In addition, it is well suited for surface mount technology (SMT), where surface mount components have become the standard in modern electronics manufacturing due to their compact size and ease of handling. At the same time, the reflow soldering process can be fully automated with equipment such as pick-and-place machines, making the process faster and more efficient than manual soldering.

However, ensuring proper reflow soldering temperature and thermal profile control is a complex and challenging task. Improper temperature profiles may result in poor solder joints or component damage. In addition, some surface-mount components are sensitive to high temperatures, and prolonged exposure to the reflow oven may damage these components.

Precautions

1. Proper temperature profile: Ensure that the temperature profile of reflow soldering is adapted to the solder paste, solder alloys and components used. Too high or too low reflow soldering temperature may result in poor solder joints.

2. Accurate stencil printing: The accuracy of stencil printing will affect the amount of solder paste coated on the PCB pad. Insufficient or excessive solder paste will lead to solder joint defects.

3. Lead-free solder: When using lead-free solder, reflow soldering temperatures are usually higher. Ensure that the reflow oven can withstand these higher temperatures.

4. Component placement: The correct placement of surface-mount components using a pick-and-place machine is critical to the circuit board assembly. Improper placement may result in solder joint defects.
