Solder Paste vs Solder Flux: Understanding Them Comprehensively

Soldering is one of the important techniques used in Printed Circuit Boards (PCBs) to form the electrical connection between electronic components. The components that enable the strong and reliable junctions between electronic components are mainly solder paste and solder flux. Solder paste helps in the soldering process. It is responsible to connect the SMD components on the circuit board. On the other hand, solder flux is a type of chemical that cleans the surface area that is being sold by removing the oxides.

Therefore, understanding solder paste and flux, their applications, differences, and how to use them in electronic boards are important. In this article, we will cover all these aspects of solder paste and flux. By understanding the concepts of solder paste and flux, one can handle and resolve problems related to them confidently.

What is Solder Paste?

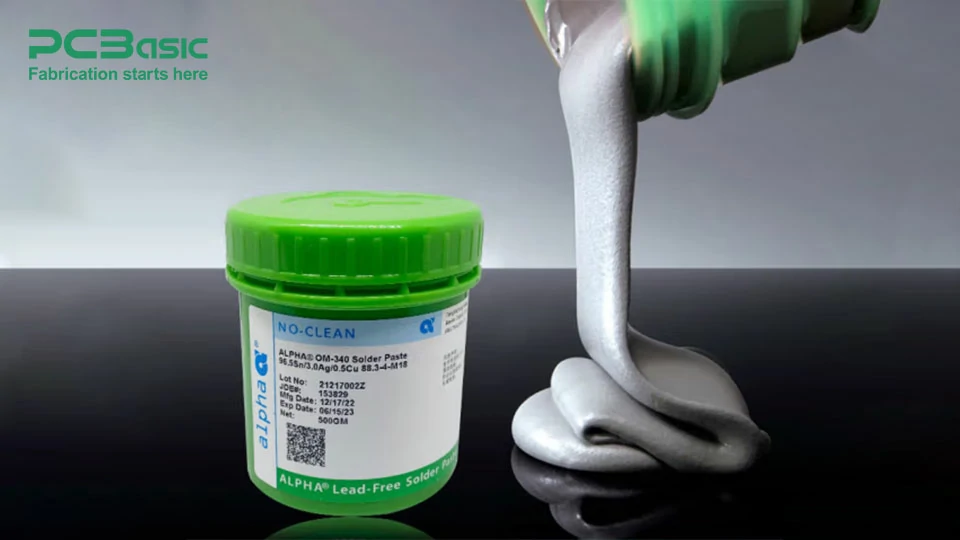

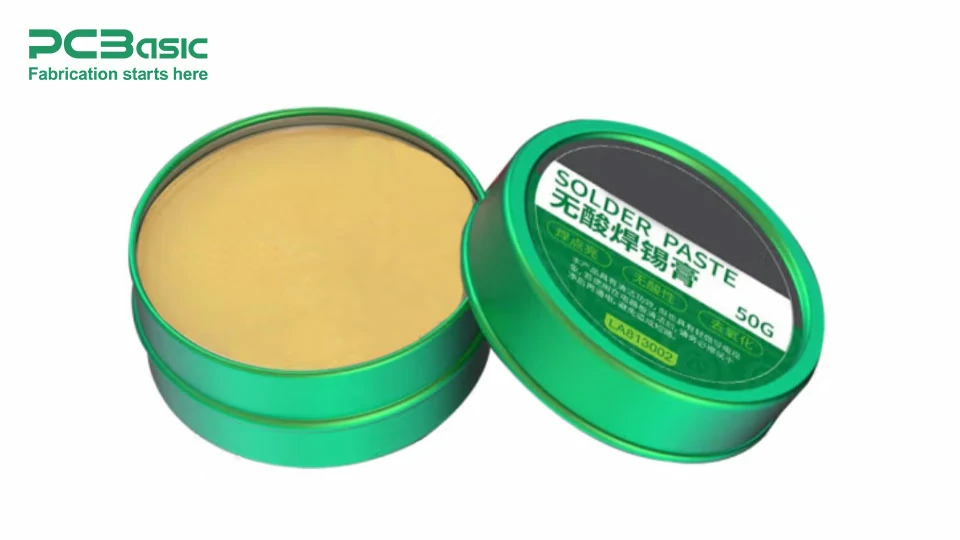

Solder paste is a type of mixture that is made up of solder powder and flux. This mixture is used to connect the electronic components like resistors, transistors, inductors and ICs to the electronic board assembly. When applied, the sticky solder paste holds the components in place. When the board is heated, the paste melts and creates a solid mechanical and electrical bond.

However, before the soldering process, the surface is cleaned by eliminating oxides using solder flux, a unique kind of chemical cleaning agent. Solder paste's main benefit is that it has already been mixed with flux to guarantee adequate wetting. Additionally, flux aids in limiting the production of new oxides.

Solder Paste Application Techniques

Using the right solder paste application is essential to a successful and dependable PCB assembly. Stencil printing and dispensing are the two main categories of solder paste application methods.

Stencil Printing

Surface mount devices are primarily attached to the electronic board using solder paste at specific spots. Attaching the SMD components to the electronic boards with solder wire is a laborious and time-consuming procedure. On the other hand, the stencil technique is a rapid and effective approach.

A stencil is a thin sheet with holes already cut into it. The solder paste placement is indicated by the holes in the stencil. The stencil is positioned over the PCB in the stencil printing method. Solder paste is applied to the stencil after it has been positioned. The solder paste is evenly distributed on the stencil using a squeegee. The solder paste enters the board through the holes. The SMDs are now soldered onto the board using a technique called the reflow process. There are usually four steps in the reflow process: a) preheating, b) soaking, c) reflowing, and d) cooling. Compared to solder wire, this method is efficient and has the smallest margin of error.

Dispensing

Solder paste is placed directly to the electronic board's pads via the dispensing process. Solder paste is directly applied to the SMD pads on electronic boards using automatic dispensers. This technique is usually used for repair tasks and prototypes.

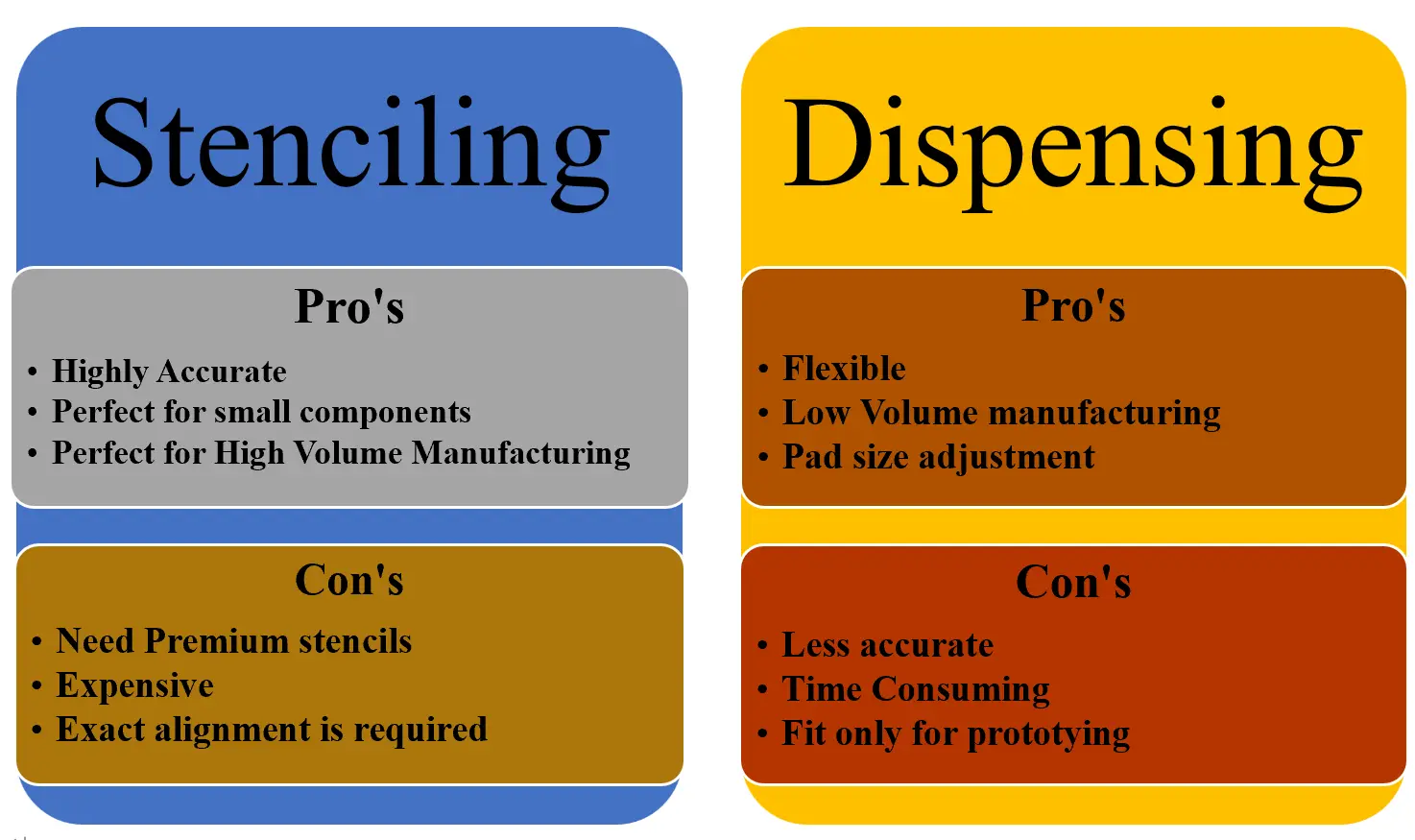

Stenciling VS Dispensing

Both stenciling and dispensing techniques have advantages and disadvantages based on the application. Selection of proper solder paste application depends on various factors including board complexity and assembly requirements.

What is Solder Flux Used For

Solder flux is a kind of chemical compound that improves solder flow by removing oxides and encouraging wetting. It also helps to prevent re-oxidation, creating a strong reliable solder joint. On the other hand, Solder paste is a mixture of chemical agents, solder powder, and solder flux. Both these ingredients together form a solder paste that is used to hold the two pieces of wire together.

There are mainly three types of solder flux available to use in electronics assembly. Each of the solder fluxes has its distinct features and uses. The three types of solder flux are: 1) Rosin-Based 2) No Clean 3) Water-Soluble.

For instance, liquid solder is ideally used for wave soldering. Liquid solder is also fit for applications where low-temperature soldering is required. Similar to solder pastes, liquid solder consists of metal that will create a conductive joint between metal surfaces. There are different types of liquid solders such as high solid, no clean, rosin bearing, and alcohol. For example, some liquid solders for circuit boards are suitable for hole-fill applications. They have great resistance against connector bridging and micro-solder balling. So, one can easily differentiate between solder flux by identifying the base chemical used in it. All types of solder flux fundamentally promote the flow of solder wire in electrical connections.

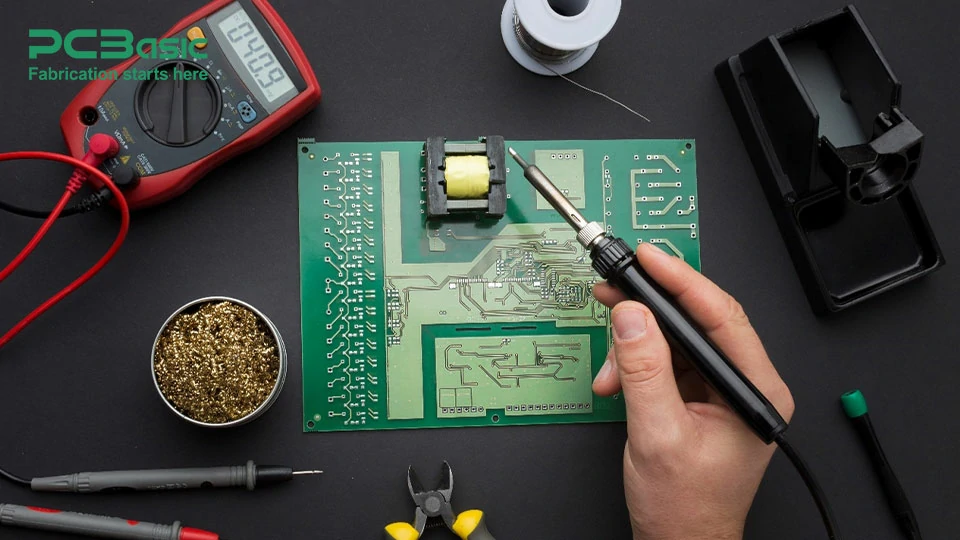

How To Use Flux When Soldering

The procedure of uniting two metal wires to create a solid mechanical and electrical link is called soldering. A substance called Solder Flux makes the surface oxide-free and encourages wetting, which makes soldering easier. Therefore, it is crucial to know how to use flux during soldering.

First thing first! Make sure the soldering surface is clean. Apply a tiny bit of flux to the soldering wires with a brush before joining two metal wires. Heat the soldering area using your soldering iron. Now, introduce the solder wire to the heated area, ensuring a strong and solid electrical connection.

Let’s summarize the use of flux in soldering in simple steps.

How To Clean Flux Residues from Electronics?

Solder flux is utilized during the soldering process, and the electronic board has residues from the soldering process. Acidic flux residues have the potential to erode the board over time. Consequently, the best possible functionality and dependability of printed circuit board (PCB) assembly depend on the efficient removal of flux residues from the electronic boards. The specifics of removing flux residues from electronic boards will be covered in this section.

There are four easy procedures for cleaning flux residue off electronic boards: a) wet, b) scrub, c) rinse d) dry. Select a cleaning solution, like isopropyl, to moisten the PCB in the first stage. Now, use a brush to gently scrub the board's surface to clean it. Rinsing is the next process, which involves flushing the electronic board with a clean solvent to get rid of impurities. The last stage involves using an air dryer to remove moisture from the PCBs' surface. A straightforward yet efficient technique for preventing damage to electronic boards is the four-step flux residue cleanup procedure.

Solder Flux Considerations

A chemical substance called solder flux makes soldering easier. Solder flux comes in a variety of forms, including water-soluble flux, organic and inorganic flux, and rosin flux. Every solder flux has special qualities and uses. A number of variables, such as the specifications and assembly method, influence the choice of flux. The dependability of the solder junctions is ensured by selecting the appropriate solder flux. Thus, it's critical to comprehend the main factors to take into account while selecting solder flux. Although there are numerous factors to take into account when choosing solder flux, quality control and solder joint dependability are crucial.

Reliability of Solder Joints

The solder joints on electronic boards have a significant impact on the reliability of electronic equipment. A good choice of solder pastes and flux ensures junction strength and guaranteed clean surface respectively. Strong and reliable solder joints ensure a longer lifetime. Therefore, to ensure excellent mechanical bonding and electrical conductivity, bonded and wet solder junctions must be used.

Using premium solder paste and flux guarantees that the solder bond will withstand a variety of environmental conditions, including changes in temperature and humidity. This prolongs the life of electrical equipment and reduces a variety of faults like voids and bridging.

Quality Control and Testing

One of the essential processes that guarantees the dependability and longevity of electrical devices is quality control and testing. Defects including incorrect solder joints, voids, bridging, and reduced conductivity are avoided via quality control and testing procedures. Visual examination, electrical testing, X-ray testing, and shear testing are the most used techniques for evaluating the quality of solder junctions.

1.     Visual Inspection: With this simple technique, flaws like voids and solder bridges can be found. A solder bridge is a defect that happens when there is extra solder between two adjacent pads. Whereas a void is a fault that happens when there is a space inside a solder junction.

2.     Electrical Continuity Testing: In order to verify appropriate electrical connectivity, wire soldering, and functionality, this testing method is used to test the functional testing of electronic boards.

3.     X-ray Testing: Electronic boards are frequently inspected using X-ray technology, particularly in Ball Grid Arrays (BGAs), to find hidden flaws such as solder bridges and voids.

4.     Shear Testing: This method is often performed to test the mechanical stress and resistance against the operational pressure of electronic devices.

By implementing quality control and testing measures, companies ensure the reliability, durability, and functionality of their electronic boards.

Solder Paste VS Flux

Solder paste makes the soldering process easier and is essential for securely attaching surface-mount components to the circuit board during PCB manufacture. On the other hand, solder flux is the substance that removes oxides from the surface before it is soldered.

In the soldering process, flux and solder paste are both essential. However, both have distinct features, uses, composition, and their applications. In this section, a detailed comparison of solder pastes and flux is discussed.

Solder Paste VS Solder Flux

Conclusion

To sum up, solder paste and flux are among the most important components used in the production of electronic board assemblies. Therefore, knowledge of the distinctions, uses, composition, and applications of solder paste and solder flux is crucial for electrical professionals.

Understanding these will enable manufacturing companies to produce high-quality PCB assemblies. Solder paste facilitates the soldering process and solder flux cleanses the surface of the soldering area by eliminating oxides. Therefore, a good and right choice of solder paste and solder flux ensures reliability, durability, and extended life of electronic assemblies.
