How are electronics built? Automated PCB assembly makes it simple and fast. It has tools for precision, speed, quality. This blog teaches you how PCBasic offers efficient solutions. You'll also see how advanced methods satisfy your needs. Let’s join together to discover what exciting PCB technologies there are.

Overview Of Automated PCB Assembly!

What is a PCB assembly? Automated PCB assembly uses SMT robots. These place 0402 resistors and 100nF capacitors. Also, 32-pin ICs fit perfectly. Reflow ovens reach 245°C.

Hence, solder paste bonds tightly. Next, automated inspection checks 1,000 joints. Even tiny errors like cold joints show up. Conveyor belts handle 200mm x 300mm panels. For example, this boosts speed to 12,000 placements/hour. Furthermore, IPC-A-610 rules ensure quality.

It reduces defects to 0.01%. Moreover, 5G modules benefit from this. So, microcontrollers and power ICs are safer. Mass production handles 6-layer PCBs fast. Automated PCB assembly powers IoT devices efficiently.

Key Components Of Automated PCB Assembly Systems!



·       Stencil Printers: Stencil printers apply solder paste. Paste spreads through 0.1 mm gaps. Machines like H4E use vacuum clamps. Also, fiducial cameras help align boards. Prints per hour can reach 150. Paste thickness is 0.12–0.25 mm. These stencils, often laser-cut, use 0.25–3 mm apertures. Furthermore, squeegees with 45° angles work best. Every step ensures precise adhesion. For example, tight solder joints reduce errors. Automated PCB assembly depends on accuracy.

·       Pick-and-Place Machines: Pick-and-place machines are fast. SMD feeders use 8 mm tapes. Moreover, Siemens SX places 50,000 parts/hour. The ±0.02 mm precision is impressive. Vacuum nozzles use 600 mBar suction. Components range from 0.2 mm to 12 mm. Additionally, conveyors shift boards 0.01 mm smoothly. Vision systems detect fiducials. Hence, automated PCB assembly relies on exact placement.

·       Reflow Profilers: Reflow profilers control heat. Zone temperatures range from 150°C–250°C. For example, KIC X7 uses eight sensors. These monitor ±1°C accuracy. Similarly, zones like soak stay 180°C–210°C. Boards pass zones at 1–2 m/min. Time above 183°C stays under 120 seconds. Therefore, joints solder well. Probes stay flat to ±0.005 mm. Automated PCB assembly benefits from stable soldering.

·       SPI Systems: SPI checks solder volume. Koh Young measures 3D deposits. Heights range from 0.1 mm to 0.3 mm. Also, 40,000 pads/hour are inspected. Defects below 50% solder are flagged. Laser triangulation gives ±0.02 mm precision. Deposits from 0.2 mm–3 mm align properly. Furthermore, automated assembly needs this step. Inspection improves output quality.

·       Conveyor Units: Conveyor units move boards. Speeds vary from 2–5 m/min. Nutek units handle 50–450 mm PCBs. Sensors find edges with ±0.01 mm accuracy. Hence, smooth transfer occurs. Guides use stainless steel for durability. Moreover, these units join SPI machines seamlessly. Automated system benefits greatly.

·       Vacuum Heads: Vacuum heads lift SMDs. Nozzle sizes vary from 0.4 mm to 1 mm. Yamaha YS12F uses 900 mBar suction. For instance, heads place 30,000 parts/hour. Sensors check placement force. SMD sizes are 0.1–15 mm. Boards stay undamaged throughout. Also, pressure remains uniform. Finally, automated PCB assembly improves component placement.

Component	Precision (mm)	Speed (Units/Hour)	Operating Pressure/Temp	Material Compatibility	Compliance Standards
Stencil Printers	±0.02	150	0.5–1.2 kg/cm² pressure	FR4, Polyimide	IPC-7525
Pick-and-Place	±0.02	50,000	600 mBar suction	Resistors, ICs, Capacitors	J-STD-001
Reflow Profilers	±1°C	1–2 m/min	150–250°C heat zones	Lead-free solder alloys	ISO9001
SPI Systems	±0.02	40,000	N/A	Tin-based alloys	IPC-A-610E
Conveyor Units	±0.01	2–5 m/min	2.5–5 bar sensor pressure	Multilayer boards	CE
Vacuum Heads	±0.03	30,000	900 mBar suction	QFNs, BGAs	RoHS

Table on Key Components Of Automated PCB Assembly Systems!

Step-By-Step Of Automated PCB Assembly Process!

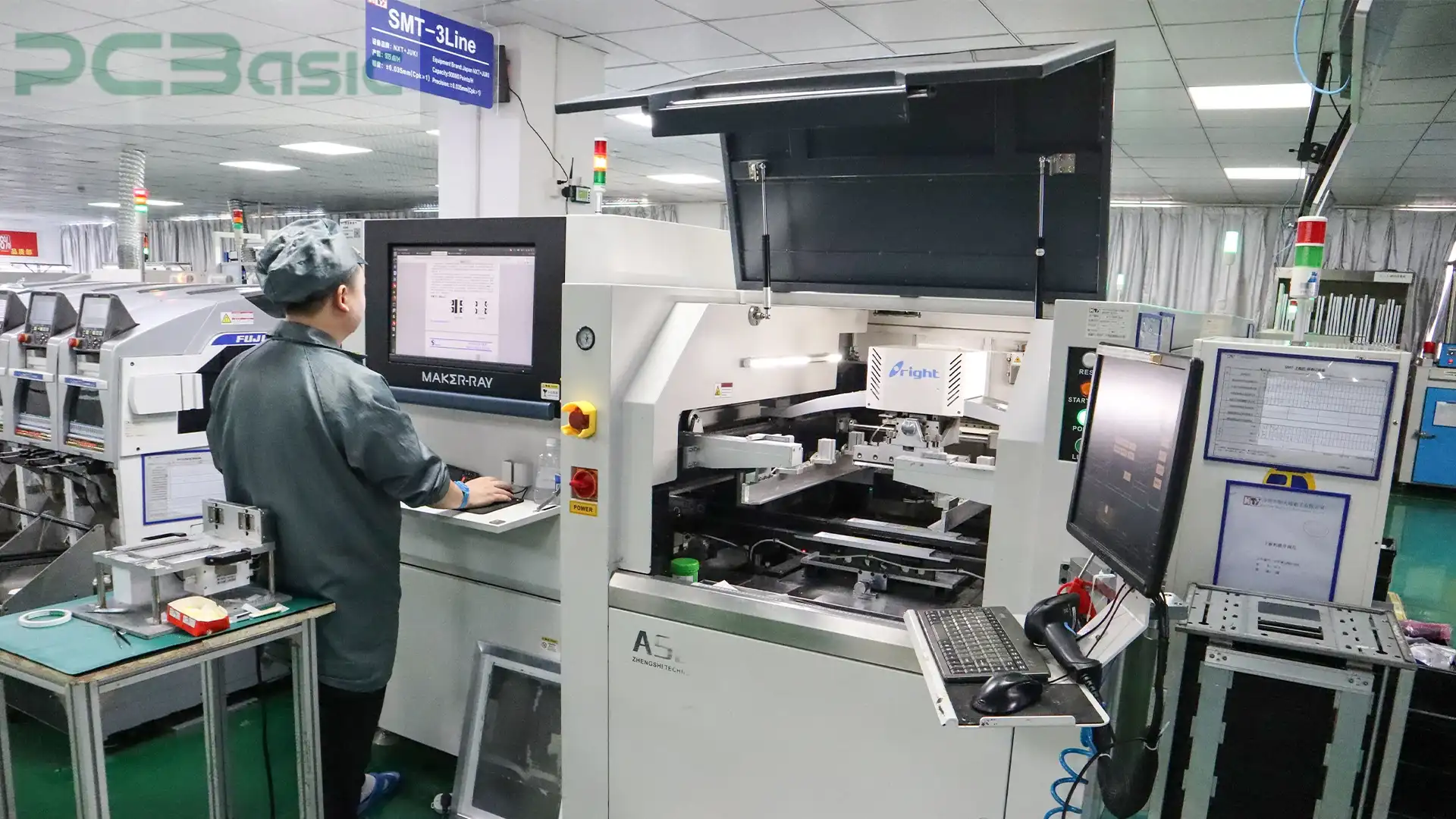

·       Paste Printing

Paste printing begins the process. A steel stencil aligns on the PCB. Solder paste—made of 96.5% tin, 3% silver, 0.5% copper—is applied carefully. A squeegee blade spreads paste smoothly. Pads, sized 0.1–0.6 mm, receive exact deposits. Stencil thickness, about 0.12 mm, controls volume.

Humidity, kept at 40–70%, ensures quality. Squeegee pressure ranges 0.5–1.2 kg/cm², while speed stays 25–50 mm/s. Alignment uses fiducial markers for accuracy. Without proper control, defects like bridging appear. For automated PCB assembly, paste printing ensures precise preparation.

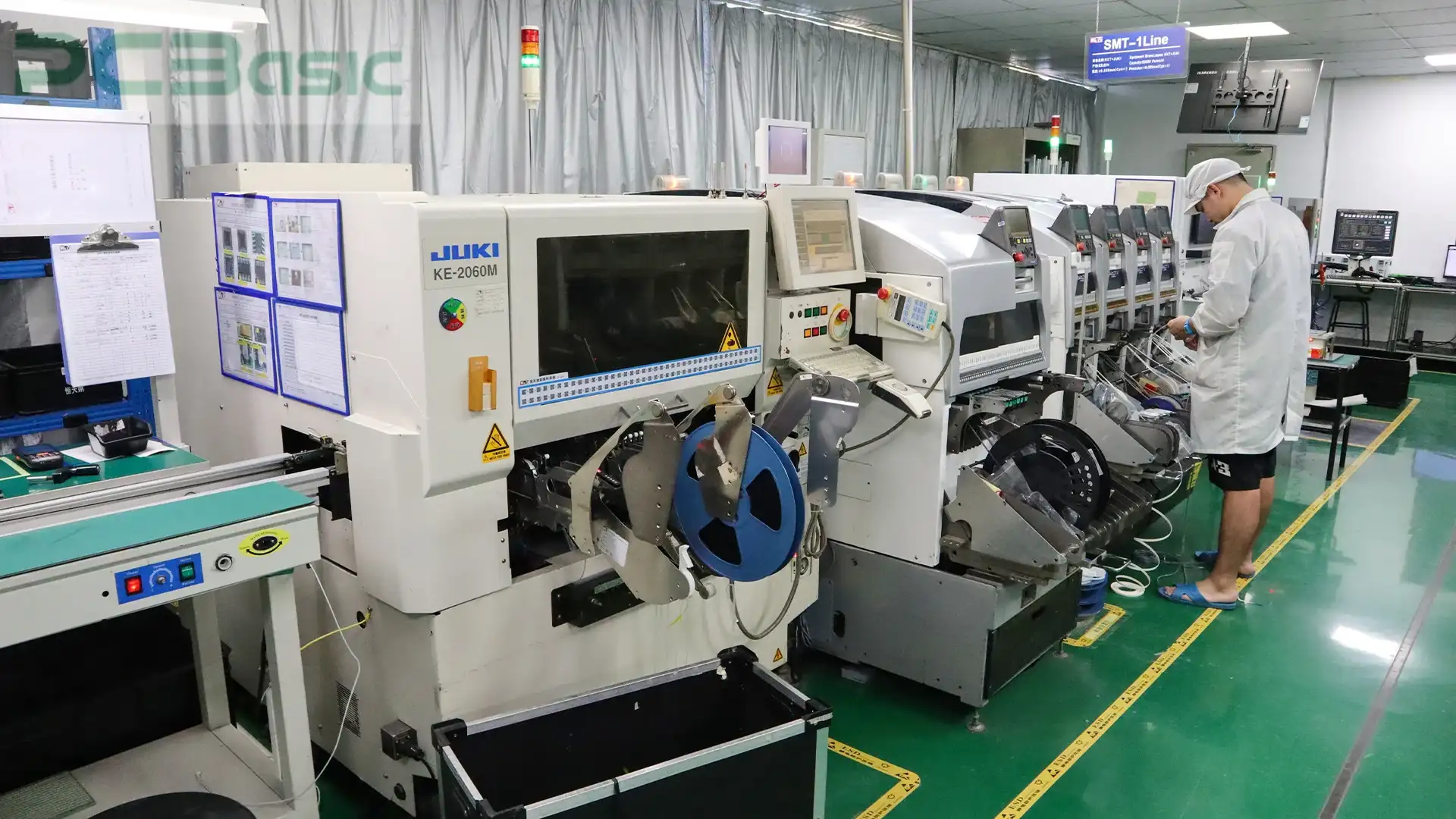

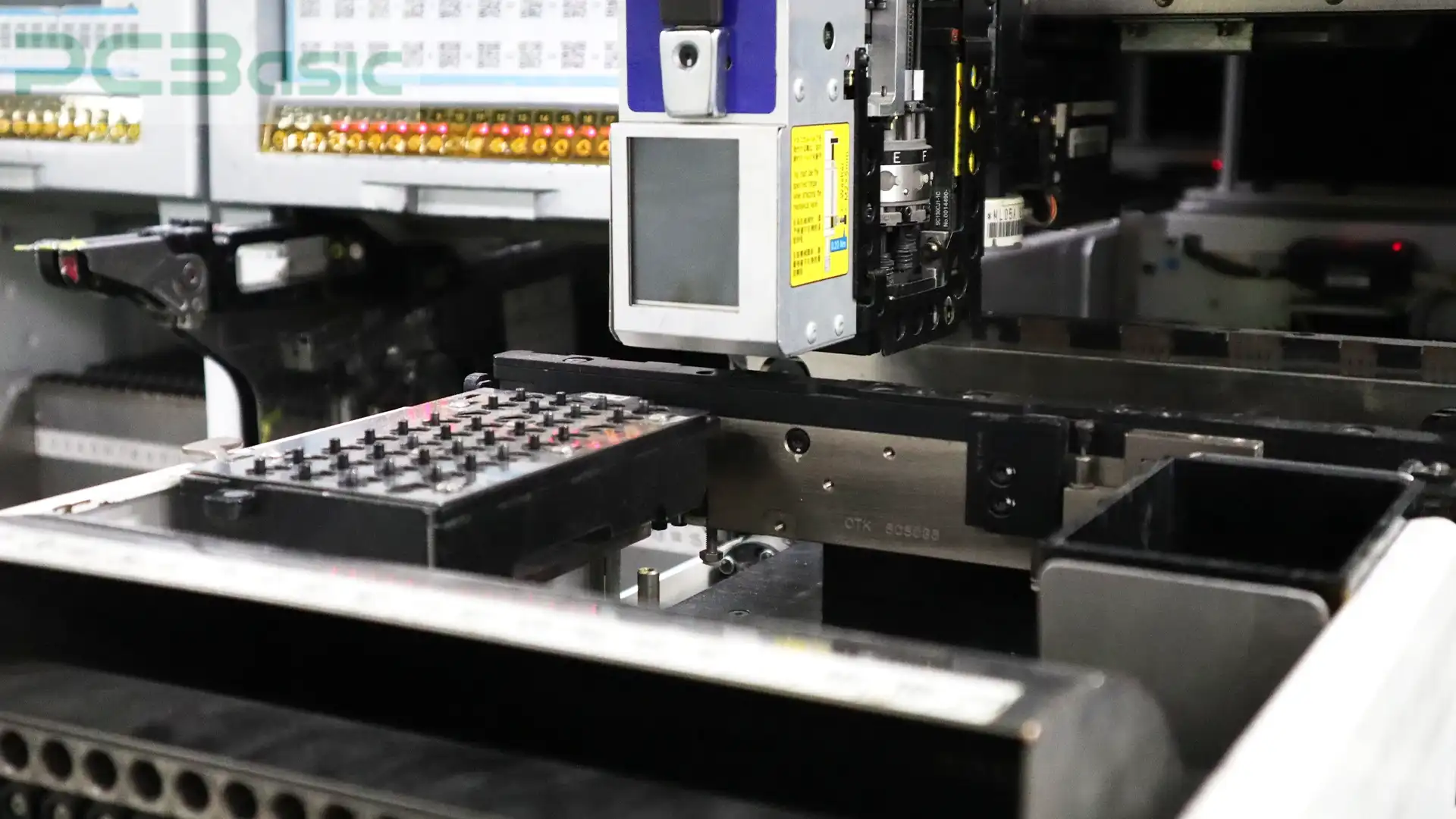

·       Pick-and-Place

Pick-and-place positions components. Machines handle up to 50,000 parts/hour. Each 0201 resistor, SOT-23 transistor, or QFP IC is placed precisely. Placement accuracy stays at ±0.05 mm.

Nozzles use 0.5–1.0 bar pressure. Feeder trays supply small parts easily. PCB thickness, often 1.6 mm, matters greatly. Real-time systems verify placement on pads. Speeds of 0.5–2 m/min help efficiency. Automated pcb manufacturing process uses robots for speed. Without alignment checks, errors increase.

·       Reflow Soldering

Soldering uses controlled heat. Ovens reach 240–250°C during peak. Zones heat evenly at 120–190°C first. Cooling areas drop below 50°C. Nitrogen reduces oxidation below 1,000 ppm.

Conveyor speeds stay 0.5–2.0 m/min. The solder forms reliable joints. Solder paste, often SAC305, ensures strength. Joint defects reduce with consistent profiles. Heating prevents component shock. Automated PCB assembly relies on reflow for solid bonds.

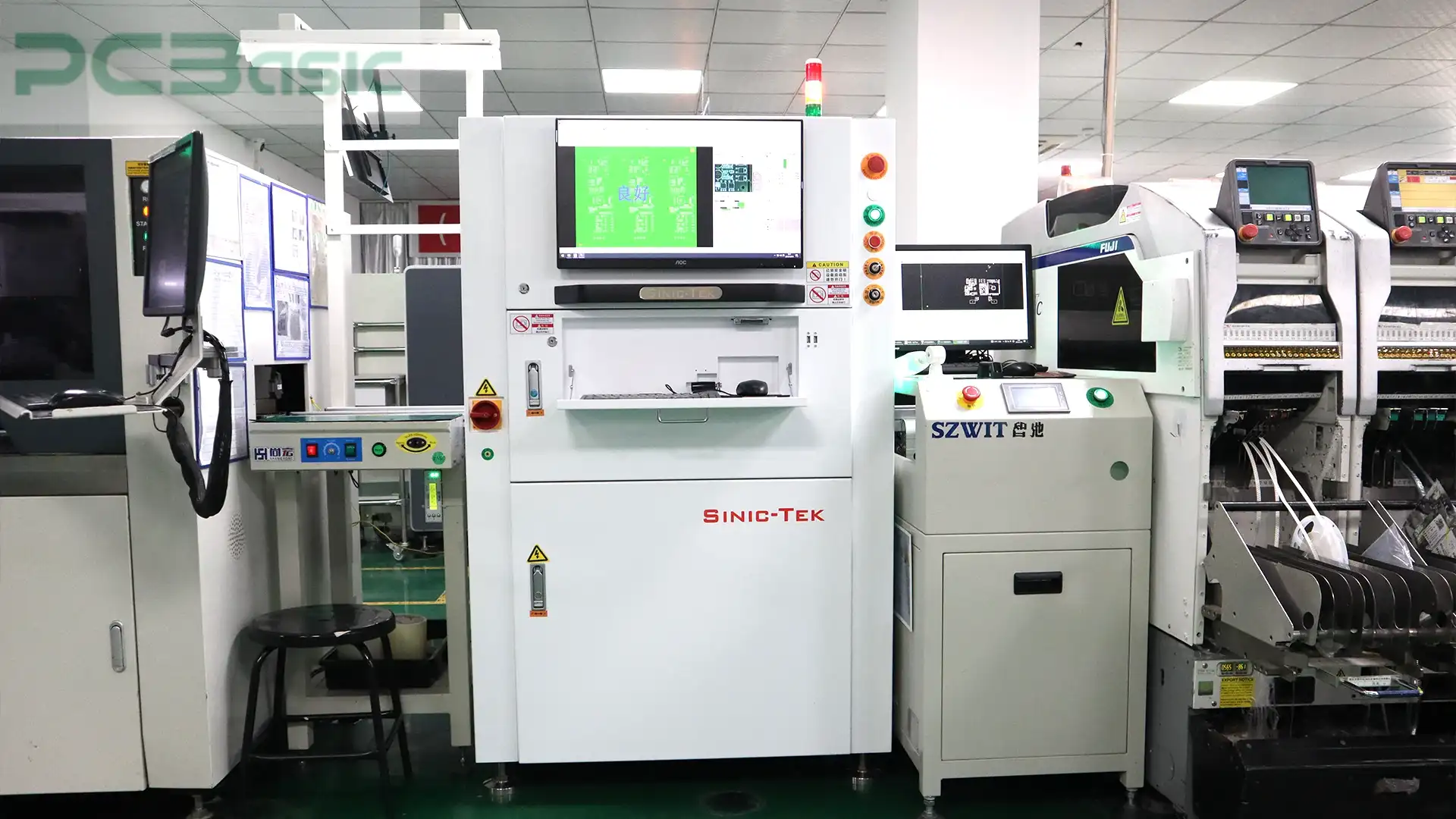

·       AOI Scanning

AOI scans assembled boards. Cameras, 12 MP, spot defects. 0201 capacitors, solder bridges, or misaligned parts are checked. Inspections run 60 cm²/sec. Lighting adjusts angles at 45–90°.

Algorithms detect solder fillets within ±5% tolerances. Components at 0.4 mm pitch are reviewed. IPC standards guide results. Early checks prevent costly mistakes. Automated PCB assembly benefits from reduced rework.

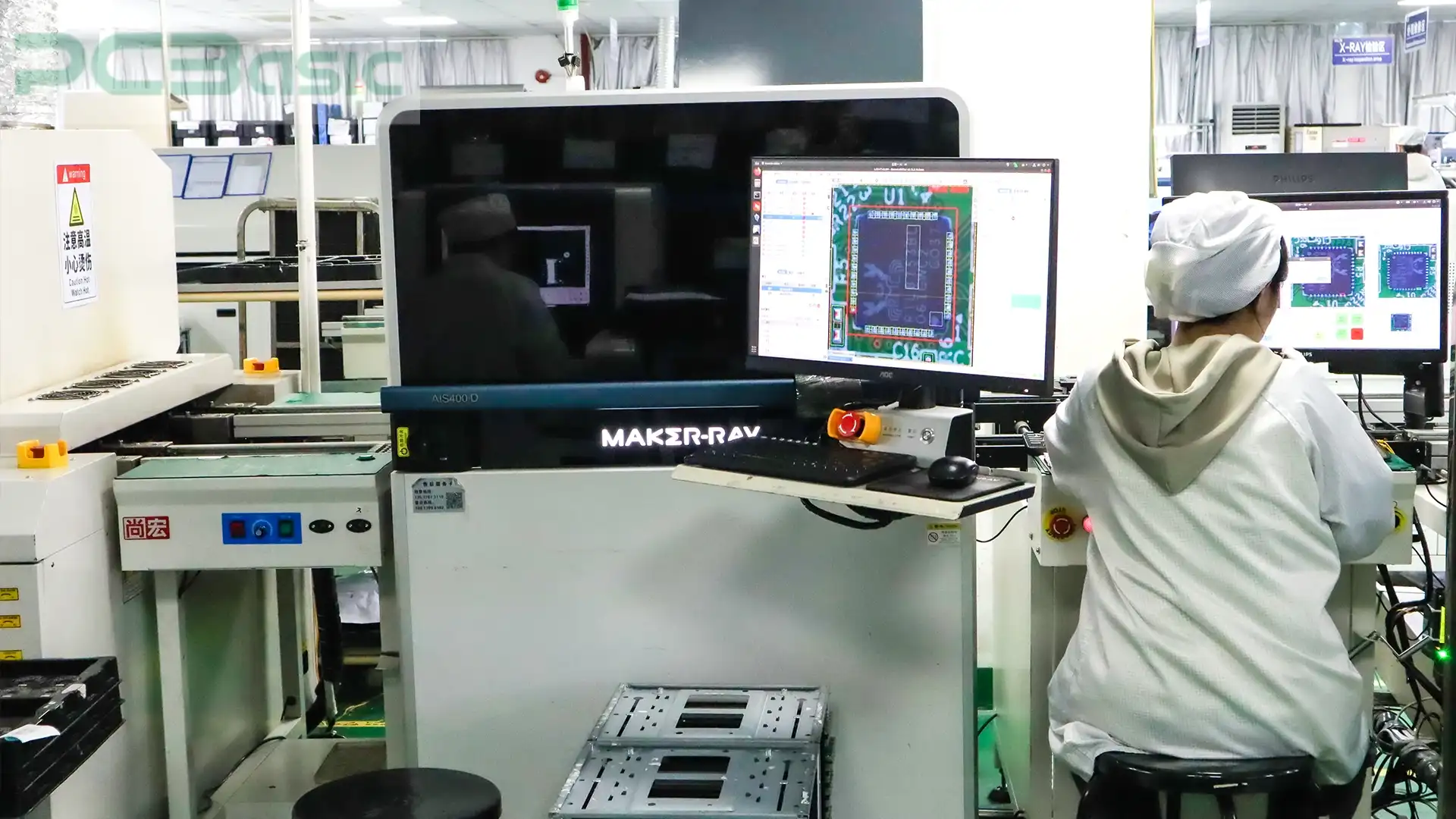

·       X-Ray Checks

X-ray reveals hidden flaws. Systems detect voids at 1 µm resolution. Voltages, around 80–120 kV, analyze joints. BGA packages are reviewed closely. Angles rotate 0–360° for detail.

Solder balls, 0.3 mm, are inspected precisely. Joint density varies by 10% tolerance. Calibration every 6 months ensures accuracy. Complex connections improve after X-ray tests.

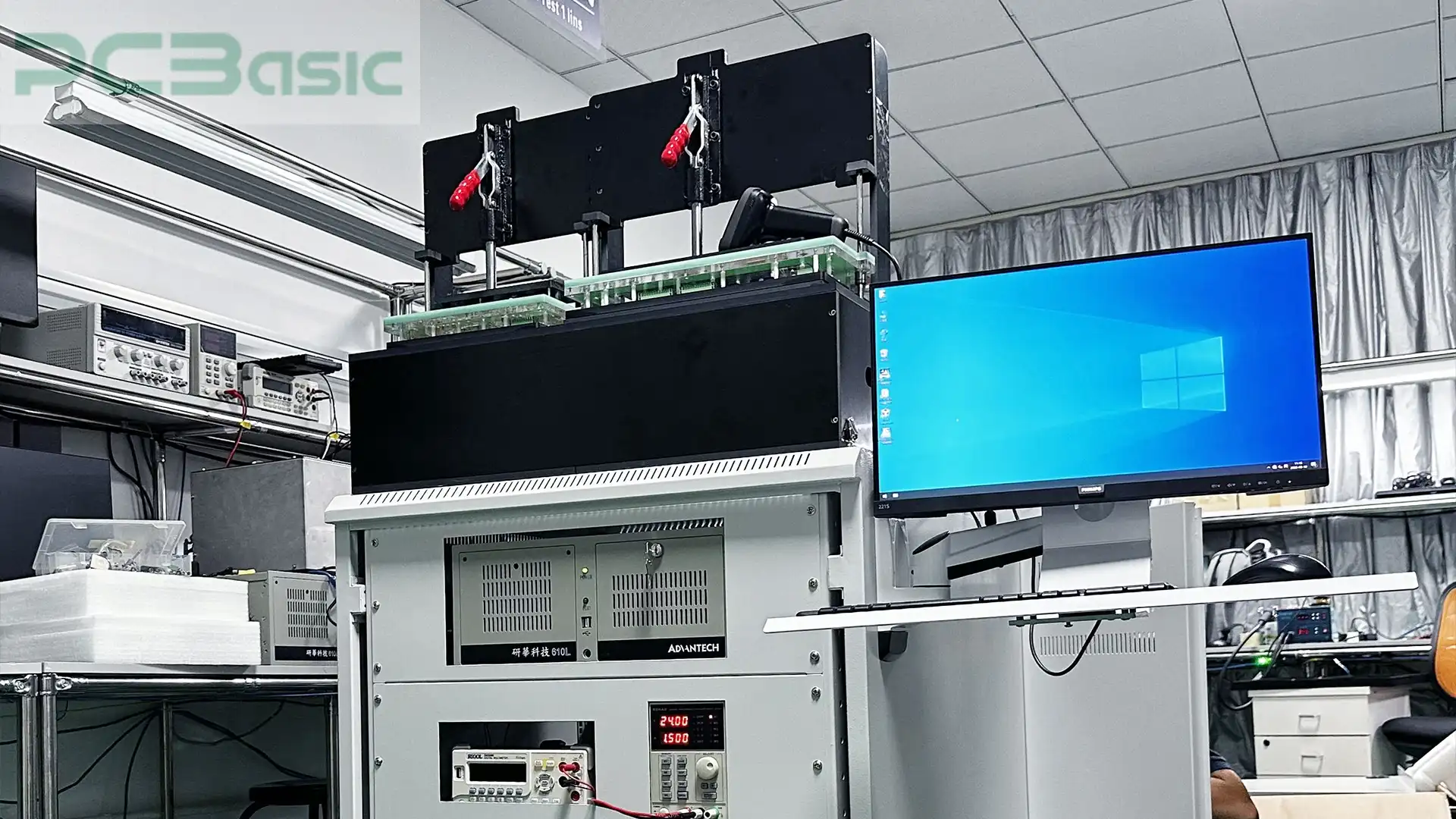

·       Functional Tests

Testing confirms performance. Voltages between 3.3–24V verify circuits. Signals measure up to 1 GHz frequency. Impedance under 100 ohms ensures quality. Boundary scans check layers.

Probe stations test at 0.5–2.0 mm spacing. JTAG tools inspect connections. Data logs maintain traceability. Faults are flagged early. Testing ensures reliability before final use.

Benefits Of Automated PCB Assembly!

·       Precision Placement: Machines place 0201, 0402, and BGA parts. They use ±0.05 mm precision always. Next, capacitors and resistors fit perfectly. Even 25-micron solder paste is measured. Also, robots place 30,000 CPH. AOI scans every solder joint. Then, alignment stays below 0.01% errors. SMT trays make placement faster. Later, robotic feeders reduce gaps. Automated PCB assembly cuts mistakes.

·       Yield Improvement: Solder stays smooth always. Machines keep ±0.02 mm error. ICs and MLCCs fit well. Because vision cameras guide perfectly. Further, SPI checks paste fast. Next, 12 MP AOI scans boards. Batches keep 98% accuracy. Later, rework rates drop low. Machines solder 0.3 mm pitch QFPs. Automated PCB assembly boosts first-pass rates.

·       Labor Reduction: Machines work very fast. They use SMT and THT parts. For instance, 50,000 CPH speeds production. Conveyor belts move boards quickly. Also, feeders handle 8, 12, and 24 mm reels. Robotic systems replace many jobs. Moreover, AOI cuts manual checks. Wave solder robots add precision. Thermal ovens stay ±1°C accurate. Automated PCB assembly reduces human tasks.

·       Thermal Control: Reflow ovens stay steady. Boards heat at 250°C peaks. Then, cooling keeps a 2°C/sec pace. Thermocouples monitor changes instantly. Later, SOT-23 parts stay safe. BGA joints melt evenly. Also, 8-zone oven heat layers. Inline profilers watch 12-layer boards. Because IR sensors adjust heat quickly. Automated PCB assembly ensures thermal safety.

·       Zero Defects: AOI spots solder gaps. 3D X-ray finds voids. Solder deposits stay 150 µm thick. ICs align perfectly at 0.5 mm. Hence, ICT confirms all functions. Parts avoid field failures. Errors fall to 0.002% in lines. Moreover, ±0.02 mm limits reduce issues. Components like MOSFETs fit correctly. Automated PCB assembly creates reliable boards.

·       Mass Scalability: Production grows very fast. SMT places 80,000 parts/hour. Machines switch lots under 10 minutes. Conveyor lines move big batches. Boards keep 2-3 mm spacing always. SPI systems monitor solder. AOI lowers errors below 0.005%. Further, feeders handle 16 mm tapes. Panels fit many layers easily. Automated printed circuit board assembly scales high.

Industry Innovations And Trends In Automated PCB Assembly!



·       AI Robotics

AI helps robots. They move 0201 parts. Thus, precision improves at 0.01mm. Then, 0.4mm pitch spacing aids alignment. Algorithms find 0.1mm defects. Next, machine vision checks placement.

Also, robots move at 3,000 cph. Thermal sensors control ovens at 250°C. Predictive maintenance keeps spindle RPM stable at 60,000. It adjusts for 1.6mm boards. Flux application stays 0.005ml per spot.

AI ensures 12-layer PCB processing. Further, yields rise 15% hourly. Automated PCB assembly cuts costs by 25%. Moreover, IC handlers work smoothly. Systems track solder joints accurately. AI reduces assembly errors to 0.01%.

·       Nano SMT

Nano SMT shrinks boards. Hence, it uses 01005 chips. Laser alignment places 0.3mm leads. Additionally, tools keep ±0.05mm accuracy. Next, 0.5Ω resistors connect tightly. Solder paste spreads evenly with 20μm particles. Nozzles vacuum 0402 capacitors. Nano SMT improves signal paths at 5GHz.

This boosts integrity. Then, the automation partner handles BGAs with 0.4mm spacing. High-speed heads achieve 20,000 placements/hour. Furthermore, stencils stay 0.15mm thick.

Nano SMT survives 85°C tests. 20-layer designs enhance performance. Automated PCB assembly gains compactness. Nano SMT advances IoT sensors and smartphones.

·       IoT Control

IoT links devices. It uses Wi-Fi modules at 2.4GHz. Microcontrollers process 32-bit data. ADC converts signals at 12 bits. Furthermore, sensors detect 0.5°C changes. Next, actuators act in 10ms. IoT tracks 2G vibration. Hence, MQTT handles protocols. Then, SPI firmware updates systems.

IoT gateways store 1TB logs. RFID tags reach 5m. Moreover, IoT improves SMT uptime. Automated PCB assembly gets smarter. IoT boosts diagnostics by 30%. Connected devices work faster. Cloud platforms keep operations stable.

·       3D Printing

3D printers build fast. Layers form at 0.1mm. Inkjet prints 5μm traces. Conductive inks fit circuits. Polyimide sheets measure 0.2mm. Resins cure under 350nm UV light. Additionally, 4-stack designs are possible. Then, substrates endure 125°C. 3D systems finish prototypes in 2 hours.

Hence, traces support 10A currents. Moreover, printing aligns 0.5mm pads. Automated PCB assembly benefits. Conductive vias hit 95% efficiency. Prototypes improve by ±0.02mm precision. 3D printing cuts design time by 40%.

·       Flexible PCBs

Flex PCBs bend well. Polyimide layers are 0.2mm. Also, traces handle 2A current. Boards fold 180° safely. Then, copper foils stay 18μm. SMT machines align 0201 capacitors. Further, 0.4mm pitch spacing works. It reaches ±0.03mm precision. Automated PCB assembly enables 3,500 cph.

Moreover, flex PCBs pass -40°C tests. 10-layer hybrids help IoT. Adhesives stay 0.05mm thin. Lastly, impedance stays 10Ω. Flex designs reduce vibration effects by 25%. Hence, wearables gain flexibility. Aerospace systems use flex PCBs for efficiency.

Get Started With Automated PCB Assembly Service From PCBasic!



·       Turnkey Solutions

PCBasic offers automated PCB assembly. Pick-and-place machines handle 10,000 components/hour. Boards support 12 layers with 0.6mm-2.0mm thickness. FR4 material offers 135°C-170°C TG values. 0402 resistors and 0.4mm-pitch QFNs fit easily. 5-micron AOI detects errors fast.

DIP wave soldering assembles relays, diodes, and connectors. 200,000 units monthly ship globally. With ERP and MES systems, quality is seamless. Industries like aerospace, medical, and automotive thrive. However, more precision ensures durability. It is certified by ISO9001 and IATF16949. Automated PCB assembly leads the future.

·       Prototype Services

PCBasic's prototypes deliver fast. Low-volume runs start at 1 unit. Boards are FR4, aluminum, and polyimide. Sizes range from 50mm to 500mm. We test 0.2mm vias with ICT and FCT. Layers support 4-12 trace widths. 12-hour quick-turns fit urgent needs. 5GHz circuits ensure reliability.

And, MES systems enhance tracking. Applications include IoT, EV modules, and industrial robots. Notably, functional testing validates quality. Designs use DFM compliance for safety. It makes scaling production simpler. Automated PCB assembly speeds success globally.

·       Quick Turnarounds

PCBasic moves fast. Orders ship within 24-72 hours. SMT lines build 8,000 joints/hour. Boards span 1-10,000 units. 10µm AOI verifies 0402 components. Via density reaches 24 vias/cm².

Precision improves outcomes. Materials include rigid-flex and FR4. Besides, we serve industries like telecom and energy. Flexibility supports deadlines. Also, ERP tools simplify tracking. Layers reach 4-12 boards wide. It boosts production speed. Automated PCB service fits global markets.

·       CAD Analysis

CAD tools simplify design. Traces align at 0.1mm tolerances. Signals keep 50Ω impedance. Layers use 6W/m·K conductivity. Pads support BGA at 0.5mm. Meanwhile, DFM checks errors.

Simulations prevent EMI issues. So, accuracy ensures success. LCR inspections validate material input. Systems integrate with MES tools. Aerospace needs TS16949 certifications. However, layers allow flexibility. Biomedical PCBs thrive on safety. And, cost-efficiency rises. It reduces risks overall.

·       Global Delivery

PCBasic delivers worldwide. Orders range 1-10,000 units. Shipments take 72 hours globally. Boards measure 50mm-500mm. ESD packaging protects fragile parts. Moreover, IoT trackers ensure updates.

It prevents delays. Besides, compliance meets RoHS and ISO standards. BGA ICs travel undamaged. Logistics cover 50+ countries fast. Still, flexibility meets timelines. Automated PCB assembly thrives in the medical and aerospace markets. Services support every need.

Why PCBasic?

PCBasic offers great solutions. 10,000 parts/hour SMT lines place parts fast. BGA X-ray tools check boards. Also, FR4 boards handle 12 layers. Thickness ranges from 0.6 mm to 2.0 mm. It ensures strength. ISO9001-certified work proves quality. Then, MES tracks parts. Also, 200,000 units/month are made.

DIP soldering lines join relays. That keeps things reliable. Plus, 30 engineers innovate designs. Meanwhile, 20 managers check quality. LCR inspection tools help tests. IoT systems track data.

Medical and aerospace depend on speed. This is why automated PCB assembly matters. Trust PCBasic for top-quality boards.

Conclusion

Automated PCB assembly brings changes in electronics manufacturing. Additionally, production happens faster with the help of tools. Errors are reduced greatly via advanced manufacturing processes.

And this means you get better results, too. For more information visit PCBasic now. We trust us to deliver the quality solution. You’re bound to make your production more reliable. Choose PCBasic today.
