SMT (Surface Mount technology) is a widely used method of mounting electronic components in which electronic components are mounted directly on the surface of a printed circuit board (PCB). However, for SMT to be effective, proper testing must be done to verify that the components are properly placed and soldered. SMT testing plays a vital role in ensuring product quality and functionality, providing an important level of quality control to ensure that the board products produced during the SMT assembly process are defect-free and perform well.

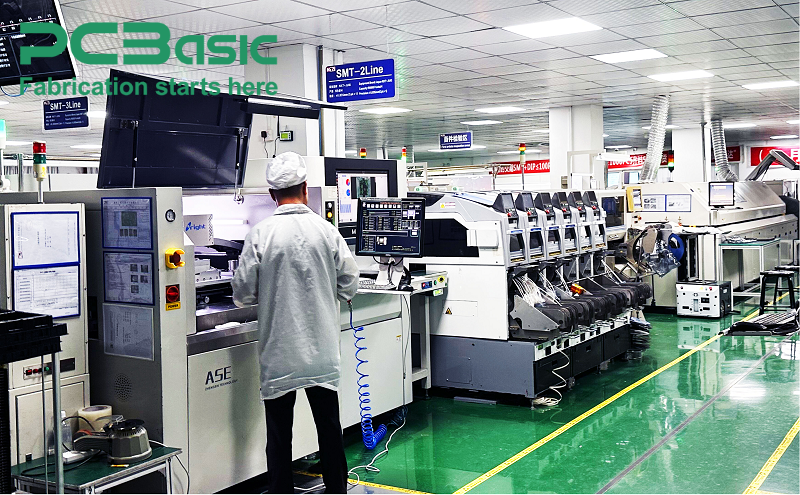

SMT PCB Assembly
SMT assembly consists of several key steps that must be performed precisely to ensure that the final product meets the required specifications. The key steps for SMT assembly include:
Component placement: In this step, electronic components are placed on the PCB using a dispensing machine. The correct placement of components is essential to ensure that each component works as intended.
Soldering: The PCB is reflow soldered, and the heat is used to melt the solder paste, forming a permanent connection between the component and the PCB.
Testing: After soldering, the PCB goes through the SMT testing process to detect any assembly defects. Testing ensures that all components are properly placed, soldered and working as intended.
PCB plays an important role in SMT assembly. It acts as the substrate on which the components are mounted and soldered, ultimately connecting the electrical connections together and allowing the components to communicate with each other.
Importance of SMT Testing
Why SMT Testing So Important? Reasons are as follows:
Early detection of defects: Testing during SMT assembly helps to detect problems early and reduce rework costs.
Maintaining high quality: Regular testing ensures that the final product meets a high standard quality, making it reliable and reducing returns.
Reduce rework: Through SMT testing, errors can be found early in the production process, reducing rework and improving overall efficiency.
Ensures reliability: Proper SMT board testing helps ensure that the assembled PCB works as intended and meets design specifications.
What is SMT Testing?
The SMT testing process involves a variety of inspection techniques that ensure correct component placement, solder quality, and overall PCB performance. Here are the main methods in SMT board testing:
|
SMT Testing Method
|
Description
|
|
Solder Paste Inspection (SPI)
|
Checks the solder paste quality on the PCB to prevent issues during soldering.
|
|
X-ray Inspection
|
Inspects hidden solder joints, especially under components like BGA.
|
|
Automated Optical Inspection (AOI)
|
Check solder joints and component placement after soldering.
|
|
Manual Visual Inspection
|
Inspect the PCB for defects missed by machines.
|
|
Flying Probe Testing
|
Check individual components and connections for faults.
|
|
In-Circuit Testing (ICT)
|
Tests the electrical connections of components to ensure no faults.
|
|
Functional Testing
|
Simulates real-world conditions to confirm the PCB works properly.
|

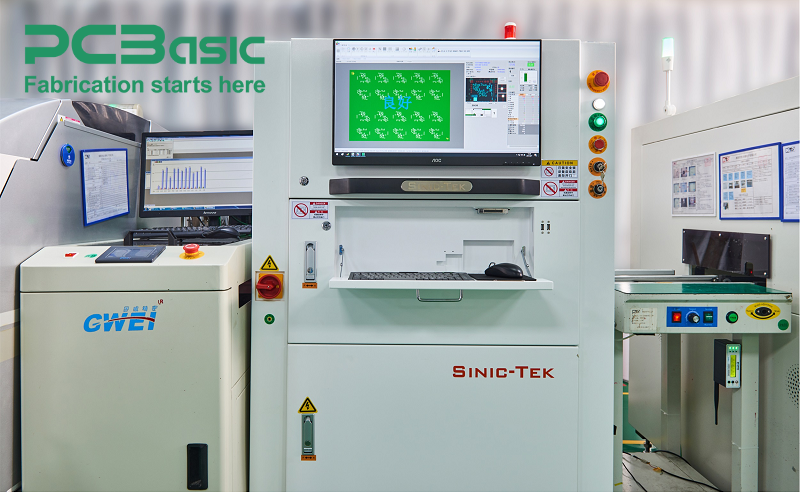

1. Solder Paste Inspection (SPI)
The SPI is the first step in the SMT testing process. It checks the solder paste printing quality on the PCB. The SPI test equipment ensures that the solder paste is applied in the right place and in the right amount on the PCB. This step is critical because insufficient or too much solder paste can lead to problems during reflow welding, resulting in poor welding.

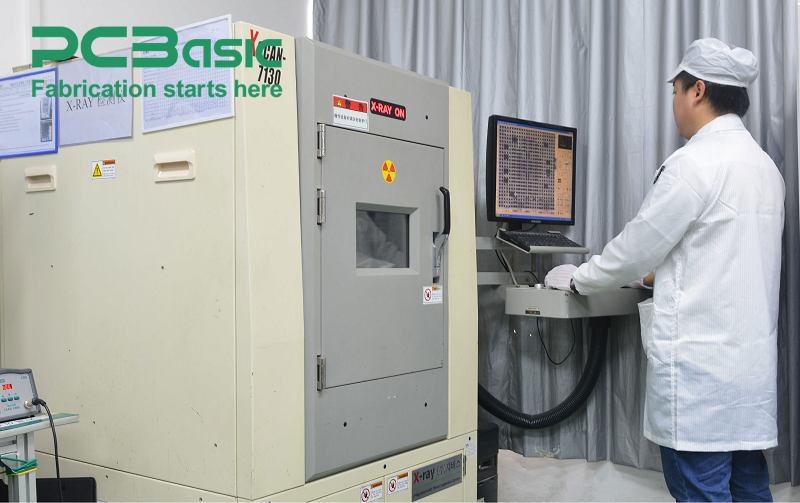

2. X-ray inspection
X-ray inspection is a smt testing equipment used to detect solder joints under components, especially components such as BGA (ball grid Array) and QFN (pin-free square flat package) that are difficult to detect by traditional methods. X-rays are able to detect problems such as paste holes, Bridges and missing solder balls that cannot be detected by optical inspection.

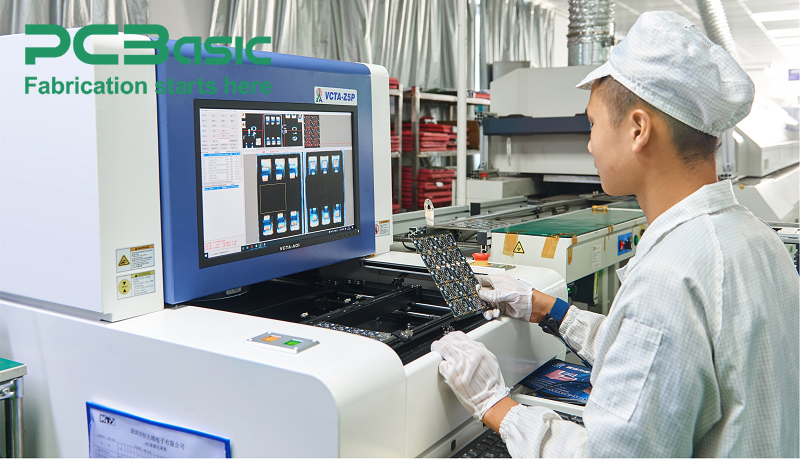

3. Automatic Optical Inspection (AOI)
AOI is one of the common SMT test machines after reflow soldering process. AOI inspection uses a high-resolution camera to check that soldering points and components are placed correctly. It can detect misalignment of solder joints, poor soldering, missing components and other problems. AOI is an important tool for finding early problems in the SMT assembly process.
4. Manual visual inspection
Although automated systems like AOI and X-ray can detect many defects, a manual visual inspection is still necessary in some cases to find minor issues that an automated system may miss. In manual SMT testing, the operator uses a microscope or magnifying glass to check the quality of the welding, especially for fine welding problems or component damage.

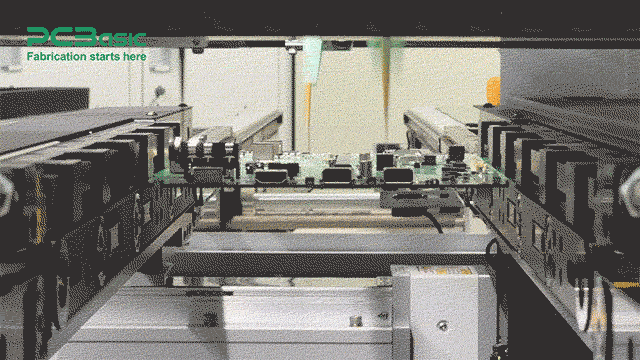

5. Flying Probe Testing
Flying probe testing is also a SMT testing machine, which not require a special test fixture, is suitable for small series production and prototype board testing, and is one of the very accurate electrical testing methods in SMT testing, ensuring the electrical integrity of the board and quickly identifying potential problems.
6. In-board Testing (ICT)
ICT is an electrical test method (similar to flying probe tester, but is more suitable for large-scale production) used to check every component and connection of a PCB. This test uses a bed needle or a flying needle to check electrical connections and make sure there are no short circuits, open circuits, or wrong component values. ICT testing is one of the most comprehensive electrical tests in SMT testing, ensuring the electrical integrity of the board.

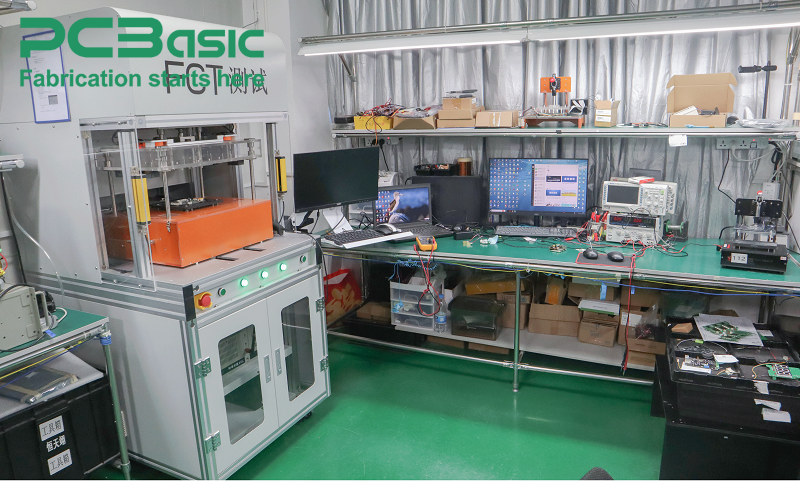

7. Functional testing
Functional testing is done after ICT testing, which ensures that the fully assembled PCB works as expected. This SMT test verifies the functionality of the circuit by simulating the operation of the PCB in a real working environment. Functional testing helps to ensure the reliability and normal operation of SMT boards in real-world applications.
Why do SMT testing need to be done manually?
Although automated SMT testing methods such as AOI, X-ray, and ICT play an important role in quality control, manual SMT testing is still necessary for some tasks. This is because:
1. Very small components and solder joints usually require manual inspection to ensure soldering quality.
2. Experienced operators are able to spot defects that some machines overlook, such as minor soldering problems or broken components.
3. Manual inspection is required as a final inspection to ensure that there are no missed defects in the automated system.
Conclusion
SMT testing is an important part to ensure the quality, reliability and functionality of the circuit board. The SMT test process includes a variety of test methods, from solder paste inspection (SPI) to functional testing, with each step playing a crucial role. SMT testing machines such as AOI, X-ray, flying probe test machines and ICT are important tools for efficient inspection, while manual SMT testing still play a complementary role in some complex problems. By combining multiple SMT test methods, it is possible to ensure that the final product meets the highest quality standards, reduces defects, and ensures its functionality and reliability in real-world applications.
