Open circuits are fundamental to the safety and reliability of electrical systems. They are often considered as fault or error. However, their intentional use in electrical systems ensures system safety and reliability. For instance, open circuits such as breakers and fuses are paramount in circuits to prevent overcurrent damage to devices.

On the other hand, when current fails to flow from source to load without any intervention is called an open circuit fault. This type of open circuit is not desirable and must be addressed timely. An open circuit fault may cause damage to the system and in worst cases a complete failure. To ensure system safety and reliability, open circuit faults must be addressed timely.

Various electronic devices such as circuit breakers, fuses, and transistors are extensively used in electrical systems. These devices work on the principle of open circuits. For instance, in situations when the device draws current from a specified limit, the fuse creates an open circuit and breaks the circuit path. Therefore, understanding open circuits and their operating principles is important for electrical engineering professionals to design robust electrical systems.

This article helps you to understand the concepts of open circuits, their causes, characteristics, key principles, and how they differ from short circuits. It also explores the role of open circuits in system safety and reliability.

What is an Open Circuit?

An electronic circuit is nothing but a closed-loop path. Current flows from source to load via this close loop. On the other hand, an open circuit is a condition in which current cannot flow from source to load. This can happen due to various reasons including loose connections and broken wires. In some cases, overheating or wires can cause wires to break. If the open circuit condition is not required, it can cause voltage fluctuations and unnecessary use of power.

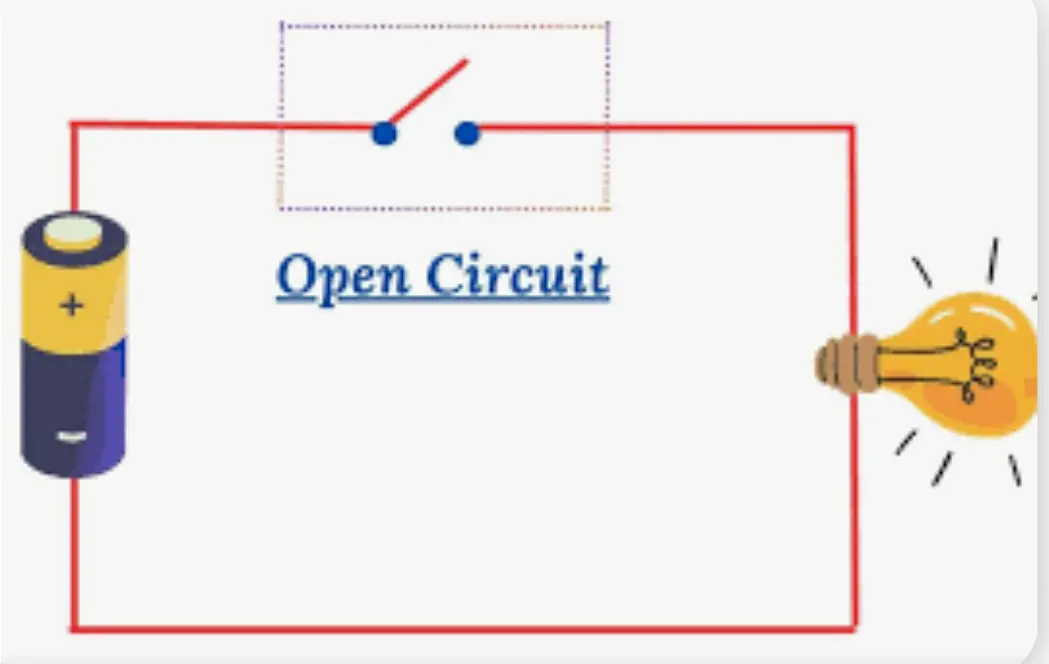

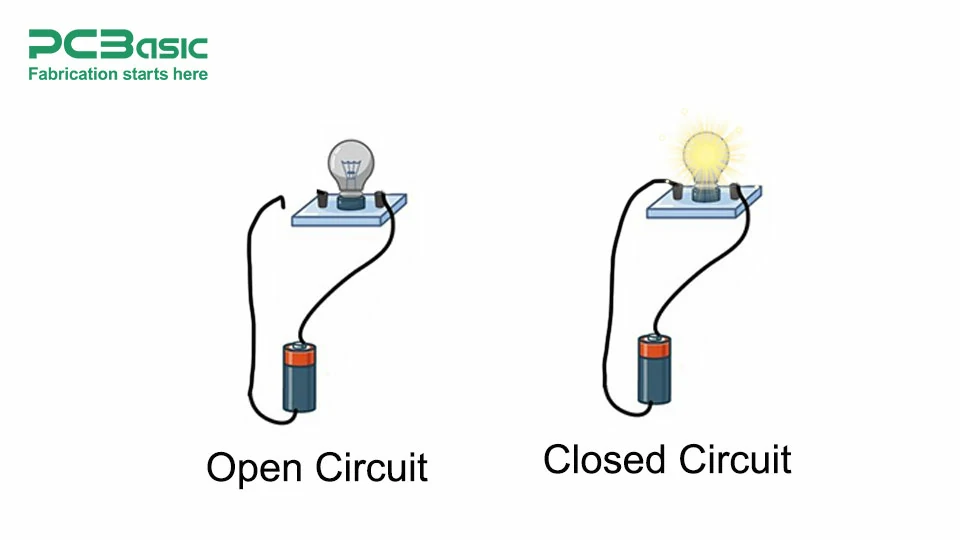

Let’s take an example of LED light as shown in Figure 1. When the switch acts as a short circuit, current will flow from source to load and trigger the LED to glow. On the other hand, when the switch acts as an open circuit as shown in Figure 2, current fails to travel from source to load and the LED will remain in OFF condition. Therefore, it can be worth noting that the position of a switch when in an open circuit or short circuit changes the whole function of the circuit.

Understanding of Open Circuits

To deal with electrical circuits, it is essential to understand the anatomy of open and short circuits. Understanding these concepts can help to prevent damage to electrical systems and ensure safety. In this section, we will cover the in-depth details and technical specifications of open circuit anatomy and its open circuit resistance.

The Anatomy of an Open Circuits

Anatomy in general is the study of the structure of a system. Therefore, circuit anatomy is the study of the structure of a circuit. Understanding the circuit anatomy helps engineers to identify and diagnose the faults in the electrical systems.

A circuit has some basic components which must exist to keep the flow of electrons. An open circuit is a type of electronic circuit that prevents the flow of current going to the load. An open circuit has the following key components.

1.     Power source: Generally, batteries or solar cells act as a main power source. The power source is usually active but current does not flow in the circuit due to a broken wire or loose connection.

2.     Load: Component in a circuit that consumes the electrical energy to produce desired output like resistor, fan, and bulb.

3.     Broken wires: Breaks in wires can be due to various factors like overheating and faulty components. These broken wires create an open circuit leading to the dysfunction of the circuit.

4.     Switch: The switch is the device that we intentionally plug into the circuit for a controlled flow of current such as a relay, transistor, thyristor, or diode.

Open Circuit Resistance

When the wire or conductor that connects the circuit to form a close loop is broken or interrupted, it stops the current flow. Ohm’s law states that the resistance opposes the flow of current. Therefore, theoretically, zero current in the circuit offers infinite resistance. This infinite resistance is known as the open circuit resistance. For the open circuit condition, it can be concluded that;

   Applying the Ohm’s Law states that:

Open circuit resistance plays an important role in electrical systems as it represents the complete blockage/break in the circuit. Usually, an infinite resistance in the circuit represents a malfunction that can cause system damage if not rectified timely. For example, an abnormal functionating of a smartphone can be due to physical stress or broken traces in the Printed Circuit Board (PCB). The broken traces lead to an open circuit condition. Other potential causes of open circuit conditions in electronic devices may include physical stress, severe vibrations, and extreme temperature variations.

Causes of Open Circuits

The possibility of an open circuit occurring can either be intentional or unintentional. However, the most common causes of open circuits are component failure, external factors, and human error.

Component Failure

When one or more components in a circuit design are malfunctioning or damaged. There might be many causes of component failure but the most common reasons are;

1.     Blown Resistors: In electronic circuits, resistors often burn out due to overheating. This creates an open circuit.

2.     Broken Wires: With the passage of time and the aging effect, wires may break and create an open circuit. The other causes of the broken wires can also be due to physical stress and accidents.

3.     Defective switches: A common observation is a malfunction in the lighting system. This is due to the defective switch. The malfunction of the switch causes an open circuit.

External Factors

Various external factors are also significant contributors to open circuit faults.

1.     Climate Factors: A malfunction in a circuit can also be due to variations in the temperature that cause an open circuit condition.

2.     Power Failure: A power failure is a major open circuit fault that must be addressed timely.

3.     Hardware Damage: Damage in the electronic device’s circuits due to physical stress or vibrations can also introduce a break in the circuit. For instance, the connection of the battery in a bicycle may break due to road vibrations.

Human Error

Sometimes an installation operator or technician may have oversight that may cause an error and lead to open circuit faults. These include wrong connections, improper insulation, and mishandling of electrical components.

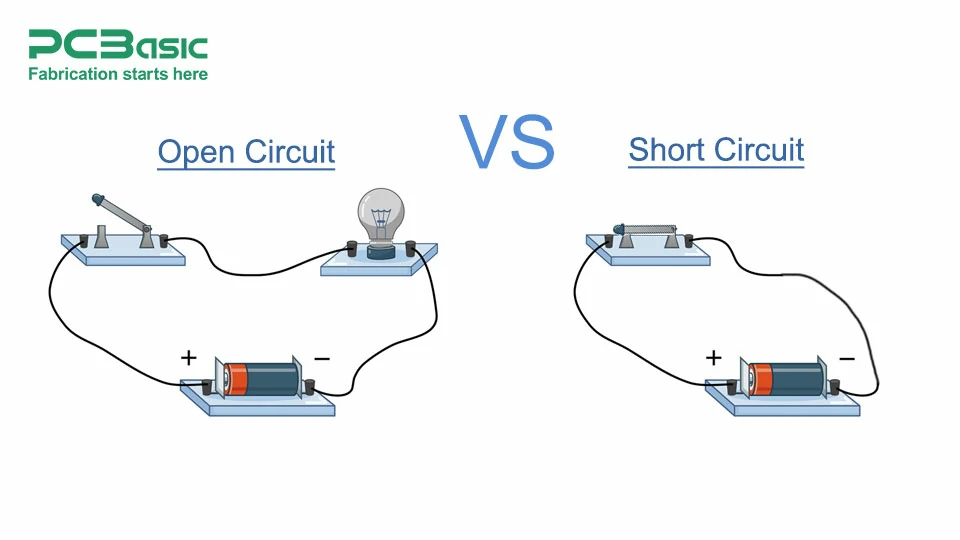

Open Circuit Vs Short Circuit

In electrical engineering, understanding the two extremely opposite concepts i.e. open circuits and short circuits is essential for designing safe and reliable electrical systems. An open circuit is a state in which current fails to travel from source to load and offers infinite resistance. Whereas, a short circuit offers the least resistance (0Ω) path for the flow of current and provides infinite current. The concepts of open circuits and short circuits are essential for identifying and rectifying system faults to prevent system failures.

In an open circuit, current cannot travel from source to load. As electrons cannot travel in an open circuit, they offer infinite resistance, zero current, and no power transfer from source to load. On the other hand, a short circuit offers a minimal resistance path. Therefore, the minimum resistance path leads to an enormous flow of current, zero potential difference, and maximum power transfer. This can lead to overheating of electrical components and potential damage to electronic components.

The key differences between open circuits and short circuits are illustrated in Table I.

Table I: Open Circuit VS Short Circuit Comparison

	Voltage	Current	Resistance	Power
Open Circuit	Equal to an input voltage
Short Circuit	V= I x R => I x 0 => 0 Volts		Zero Ohm (0Ω)

Hence, key characteristics of open circuits and short circuits can be found in Table I.

Table II: Open circuit and short circuit characteristics

Open Circuit Voltage

Open circuit voltage plays an important role in determining the maximum voltage capacity of a device. Open circuit voltage is the maximum voltage a device can produce. This is measured in no load condition. Electronic manufacturing companies mentioned this voltage in the device technical manual.

Short Circuit Current

Short circuit current is defined as the high current that a battery will produce to trigger the fuse, preventing the electronic device from damage. Short circuit current is normally measured when no load is connected. Mostly, companies mention short circuit current as a specification of electronic devices.

Identifying Open Circuits in Electrical Systems

Identifying the open circuits in electrical systems is the first step toward their effective diagnosis. There are various ways to identify the potential open circuits in electrical systems. These include:

• Physical Inspection:  A technician by inspecting may look for any broken wires and loose connections, if any.

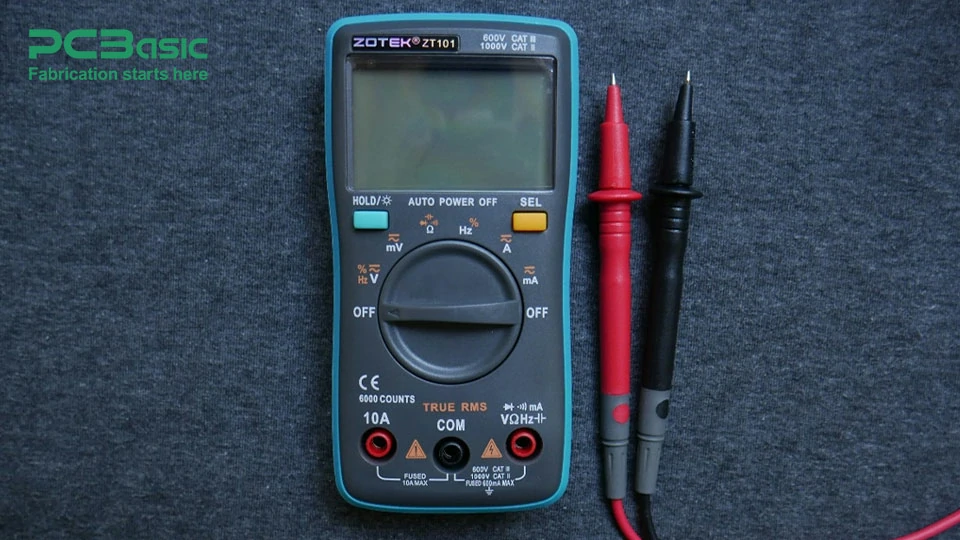

• Beep Test: Set the Digital Multimeter (DMM) in diode testing mode. If there is an open circuit between two terminals, the probes of DMM will not beep.

• Multimeter Test:  Measure the resistance and voltage at different suspected points. If the multimeter shows infinite resistance, it indicates an open circuit.

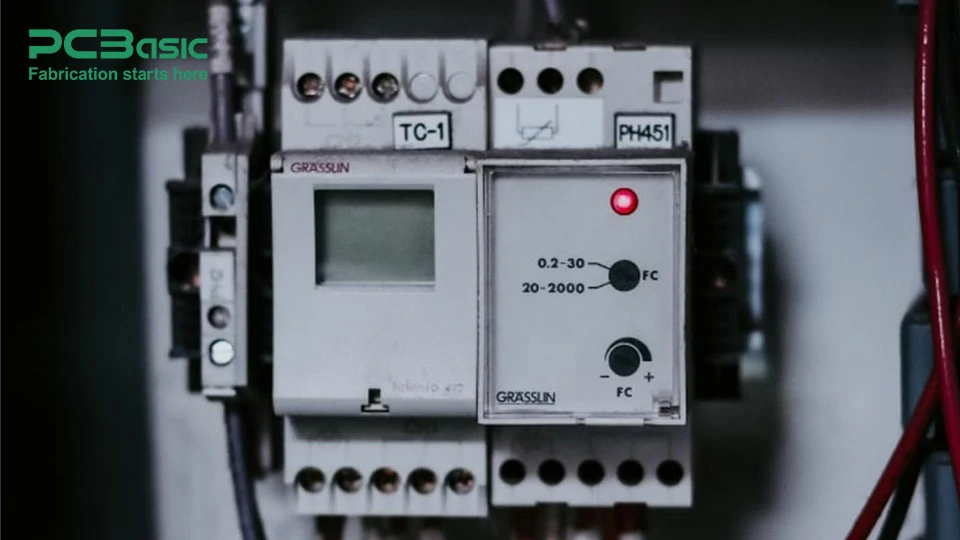

Significance of Open Circuits in System Reliability and Safety

Open circuits and short circuits are critical for electrical devices and must be carefully addressed. Their improper handling can lead to far-reaching consequences on system safety and reliability. Circuit breakers, fuses, transistors, and relays work on the principle of open circuit to protect the system from any danger.

A.    Circuit Breaker: Circuit breakers use an automatic open circuit design. If the device draws a current beyond its specified limit, it triggers the breaker to open the circuit. This prevents the device from potential damage.

B.    Fuse: The vital component of a fuse is metal wire. When the device tries to consume the current beyond the specified limit, the metal wire will melt and create an open circuit, protecting the device from potential damage.

C.   Switch: A switchboard in your house is also an example of an open circuit. These boards are used to control the ON and OFF time of appliances like fans and bulbs.

Open circuits are also crucial in ensuring the reliability of electrical systems such as:

A.    In hazardous situations, open circuits isolate the faulty section of the system and prevent the device from potential failure.

B.    When the current exceeds the specified limits, open circuits safeguard the electrical system by disconnecting the flow of current.

Conclusion

In conclusion, open circuits play an important role in electrical systems. In most cases, open circuits are categorized as faults. However, open circuits are also used in electronic protection devices like circuit breakers and fuses. Therefore, understanding open circuits, their key principles, differences, causes, and characteristics are essential for the safety, reliability, and diagnosis of electronic systems.
